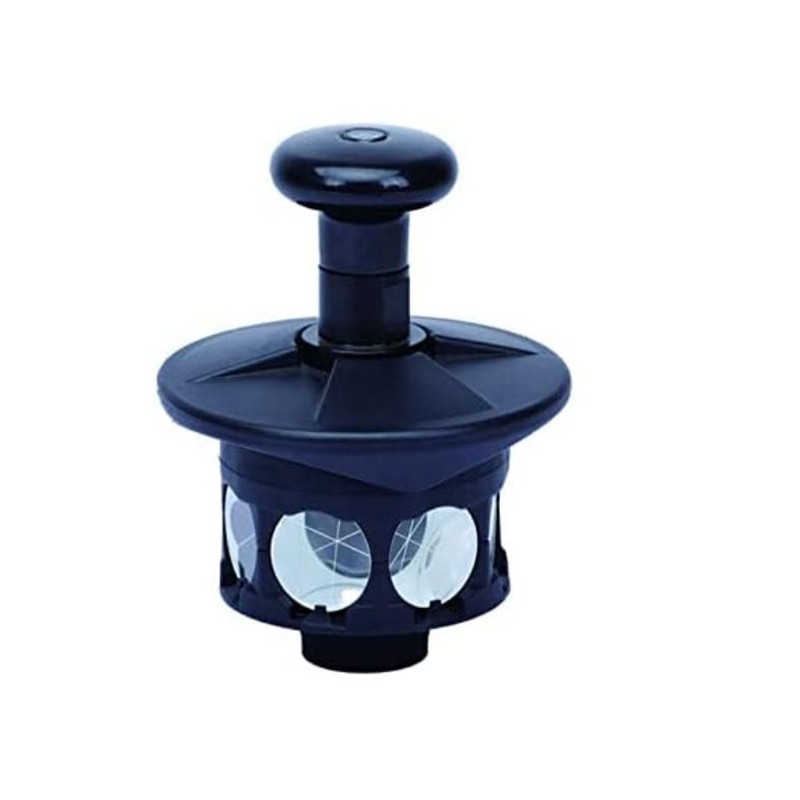

360° Total Station Prism, K9 Glass Auto Tracking Survey Prism
The 360° Total Station Prismis a compact surveying reflector designed for
total station measurement, engineering surveying and monitoring applications.
The prism combines a precision-polishedK9 optical glasselement with
a durableABS protective housing, providing a practical solution for field surveying and measurement projects.
Its 360-degree reflective design is suitable for compatible total
station systems and selected automatic tracking applications.

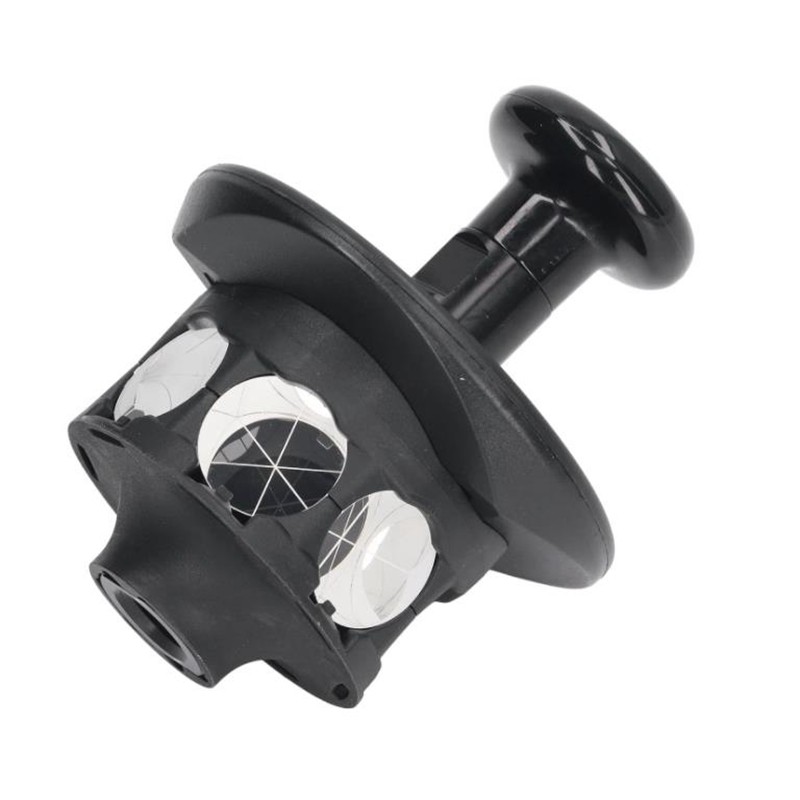

The prism is designed as a360-degree reflective surveying prism,
making it suitable for measurement systems where the target
may be approached or tracked from different directions.
This design is particularly useful for compatible automatic tracking total station applications.

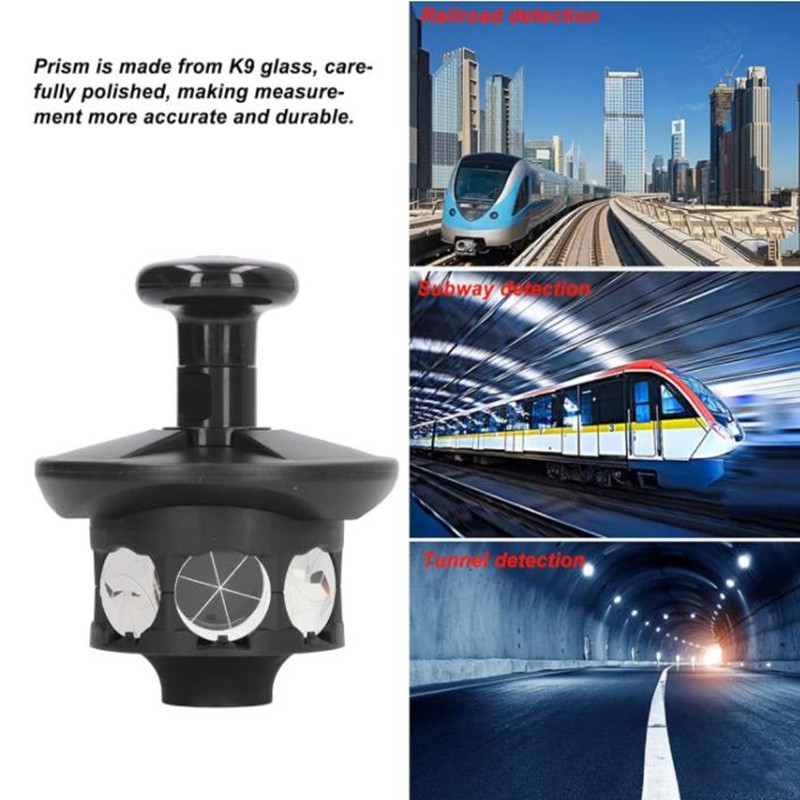

The prism usesK9 optical glassthat is carefully polished for optical applications.
The optical component undergoes accuracy testing to help
ensure consistent optical performance for compatible surveying instruments.

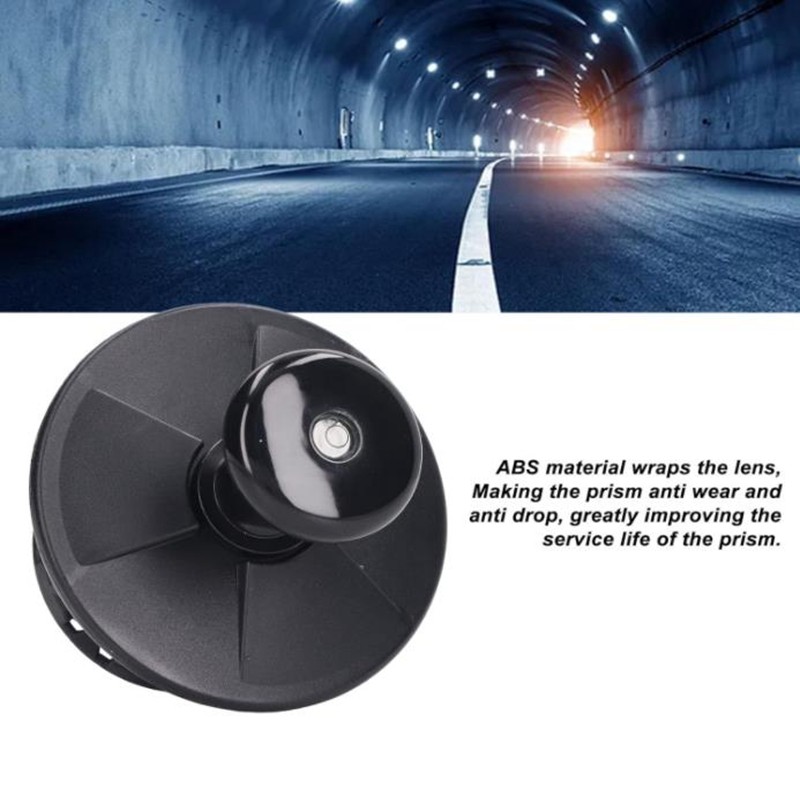

AnABS protective housingsurrounds the optical prism to provide
additional protection during transportation, installation and field operation.
The housing helps improve resistance to everyday wear and accidental impact during normal surveying use.

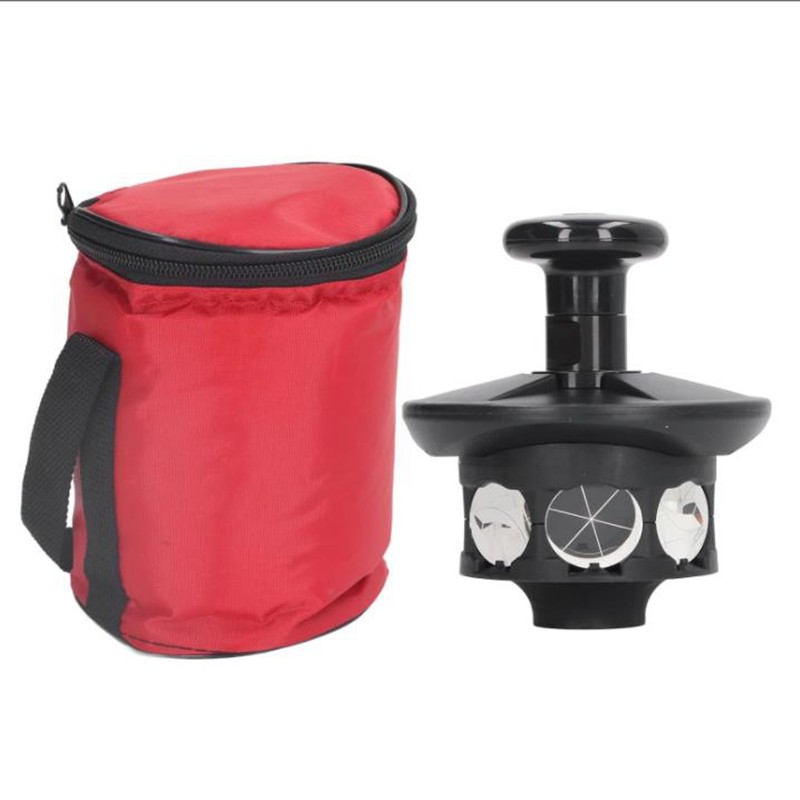

The 360° prism features a compact design and comes with astorage bag,
making it convenient to carry between different surveying locations.
It is suitable for field engineers and surveying teams working across multiple project sites.
| Parameter | Specification |
|---|---|
| Product Type | 360° Total Station Prism |
| Prism Type | 360° Reflective Prism |
| Optical Material | K9 Glass |
| Optical Treatment | Precision Polished |
| Optical Testing | Accuracy Tested |
| Protective Housing | ABS |
| Reflective Direction | 360° |
| Design | Compact & Portable |
| Storage | Storage Bag Included |
| Application | Total Station Surveying |
| Auto Tracking | Compatible Systems* |
| Compatibility | Compatible Total Station Systems |
| Trimble | Selected Compatible Systems* |
| OEM/ODM | Available |
A major application of this prism isautomatic tracking total station surveying.
The 360-degree reflective configuration can be considered for systems
where a total station automatically tracks a moving or changing target position.
Potential applications include:
Compatibility should be confirmed according to the specific total station model and tracking system.
The 360° prism can be used in suitable surveying and monitoring projects involving underground structures.
Suitable for selected tunnel measurement and monitoring applications.
Can be considered for subway construction and underground engineering surveying.
Suitable for selected mining surveying and measurement environments.
The actual installation method should be determined according to
project requirements and the surveying instrument being used.
The 360° Total Station Prism can be used in various engineering fields.
Suitable for selected railway surveying and infrastructure measurement projects.
Can be used as a reflective target for compatible total station monitoring systems.
Suitable for selected dam measurement and structural monitoring applications.
Can be installed at appropriate fixed points for surveying and monitoring of slopes.
Suitable for road construction and infrastructure surveying.
Can be used in selected mining measurement and surveying applications.
The prism is designed to work with compatible total station systems.
It can be considered for selectedTrimble-compatible surveying systems,
subject to the specific instrument model and mounting configuration.
For professional projects, customers should provide the exact total
station model before ordering so compatibility can be confirmed.
The combination ofK9 optical glass and ABS protective housingprovides
a balance between optical performance and practical field protection.
The compact design makes this 360-degree prism convenient for field surveying.
A dedicatedstorage bagis included for easier transportation and storage.
It can be carried between:
We supportOEM and ODM surveying prism solutionsfor surveying
equipment distributors, engineering companies and monitoring projects.
Customization can be discussed for:
Send us your total station model, required prism type
and quantity for compatibility confirmation and quotation.
Typical applications include:
Designed for compatible total station and auto-tracking applications.
Premium K9 glass with precision polishing and optical accuracy testing.
Protective housing helps safeguard the optical prism during field use.
Small design with a storage bag for convenient transportation.
Suitable for tunnels, subways, mines, railways, highways and dams.
Customized surveying prism solutions available for project requirements.
A 360° total station prism is a reflective surveying target designed to provide a reflective target around a broad range of viewing directions for compatible total station systems.
The optical component usespremium K9 optical glass.
Yes. The optical prism is protected by anABS housing.
Yes, it is intended for compatible automatic tracking systems. The exact total station model should be confirmed before ordering.
It is suitable for selected compatible Trimble systems. Please provide your exact Trimble model to confirm compatibility.
Yes. It can be used in suitable tunnel surveying and monitoring systems.
Yes. The product is supplied with a storage bag for convenient transportation and storage.
Yes. We support OEM/ODM customization according to the customer's prism, mounting, housing and packaging requirements.
