The 520nm 10mW Green Line Laser Module with Locking Ringis a compact semiconductor laser source designed for industrial positioning, alignment, leveling, calibration and OEM equipment integration.

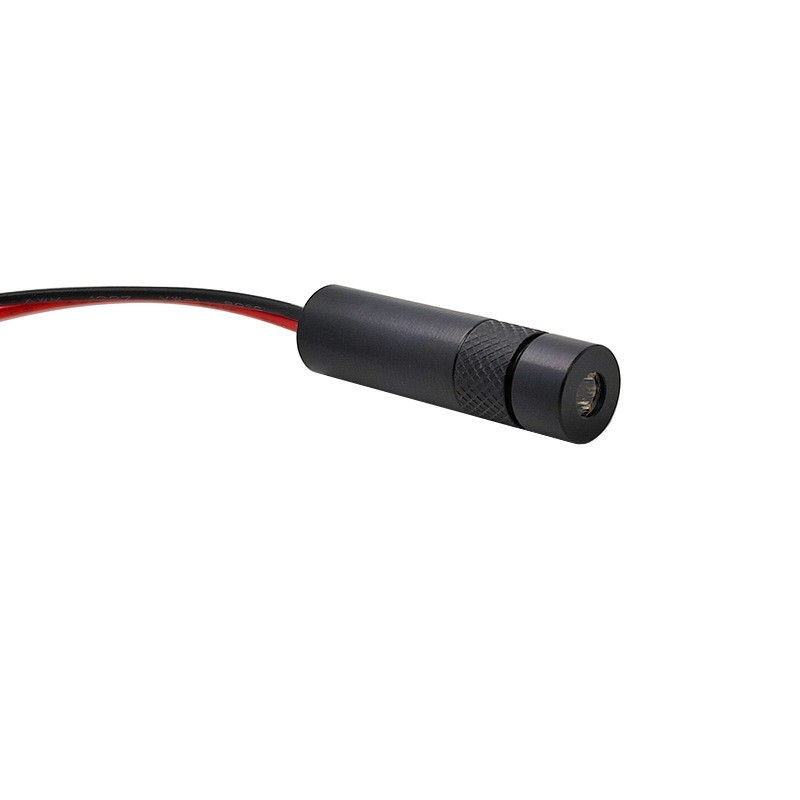

Featuring a Ø8×30mm aviation aluminum housing, external focusing structure and mechanical locking ring, the module allows users to adjust the laser line thickness and then lock the focus position for stable operation.
The standard configuration operates at520nm ±10nmwith output power below10mW. Other wavelengths, output powers, housing sizes and electrical configurations can be customized according to project requirements.
| Parameter | Specification |
|---|---|
| Product Type | Green Line Laser Module |
| Model | S83052010L |
| Wavelength | 520nm ±10nm |
| Output Power | <10mW |
| Laser Color | Green |
| Beam Pattern | Line |
| Standard Size | Ø8×30mm |
| Other Sizes | Customizable |
| Housing Material | Aviation Aluminum Alloy |
| Housing Type | All-Metal Shell |
| Surface Finish | Black Insulated Matte Oxidized Finish |
| Optional Finish | Brass-Colored Shell |
| Working Distance | <3m under suitable indoor conditions |
| Line Thickness | Adjustable |
| Focus Mode | External Adjustable Focus |
| Focus Lock | Locking Ring |
| Circuit Control | APC |
| Operating Voltage | DC 2.7–4.2V |
| Working Current | <180mA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours Continuous Operation |
| Tail Wire | AWG 26 Red & Black Wire, Approx. 15cm |
| Optional Cable | 1m DC Female Plug Cable with Power Adapter |
| Safety Class | Class IIIB |
| Package Content | 1 × Laser Module |

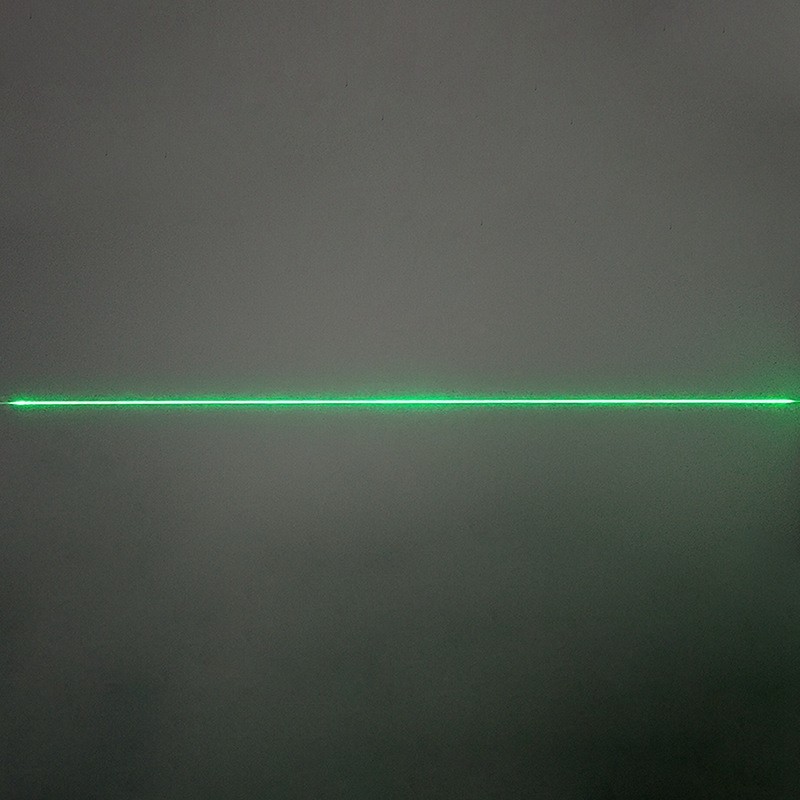

The module produces a clear 520nm green laser line suitable for visual positioning and alignment.
Typical characteristics include:
The line can be optimized according to the required installation distance.
Actual visibility depends on ambient lighting, target surface, focusing conditions and optical configuration.

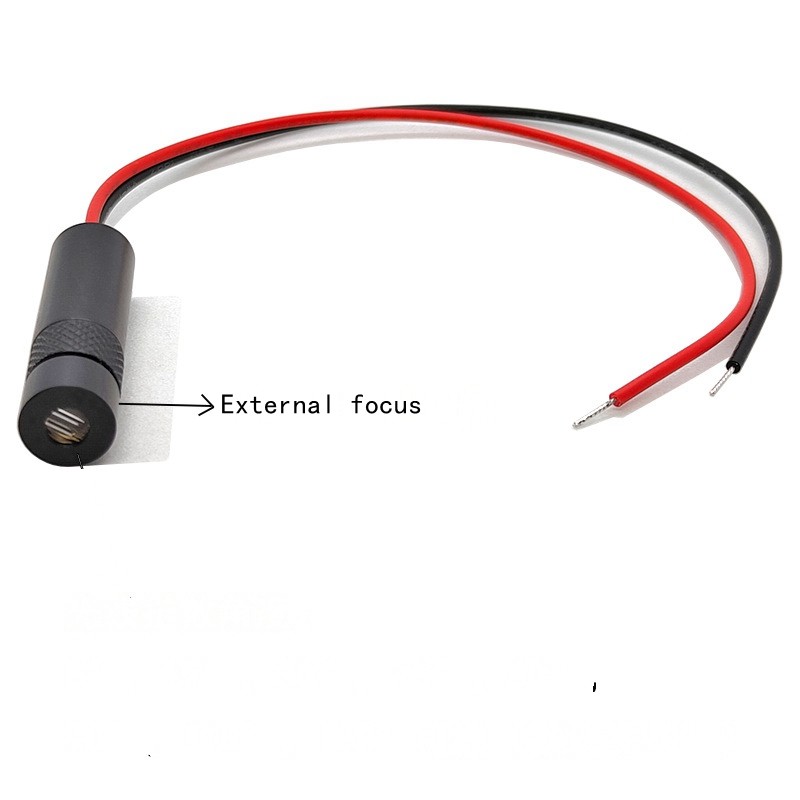

A key feature of this model is theexternal focus mechanism with locking ring.
Users can:
This makes the module suitable for equipment requiring repeatable laser-line performance after installation.
The integrated APC circuit helps maintain stable optical output during continuous operation.
Electrical specifications:
Other voltage and driver configurations can be customized for OEM projects.

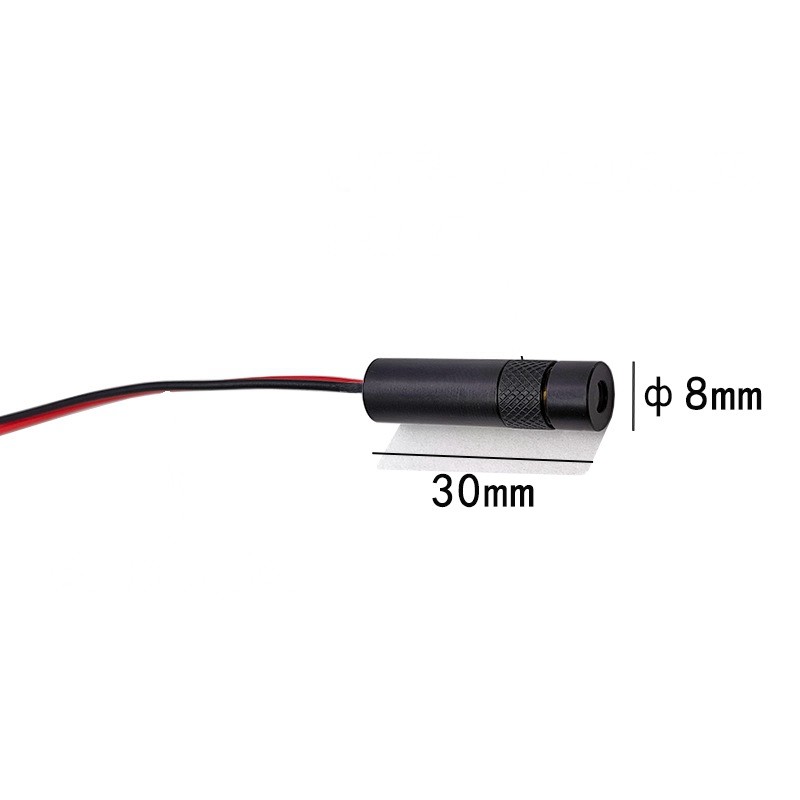

The module uses a compact aviation aluminum housing measuring:
Ø8×30mm
Benefits include:
Standard:
Optional:
Photex Laser provides customized 520nm green line laser modules with locking focus structures for industrial positioning, alignment, leveling and OEM optical applications.
