Photex Laser provides customized660nm 120mW red Powell lens line laser module
sfeaturing an adjustable line width as fine as 0.1mm at close working distances,
uniform line intensity and reduced bright spots at both ends for precision positioning,
alignment and industrial marking applications.
The 660nm 120mW Red Powell Lens Line Laser Module is designed for applications
requiring a thin, uniform and highly stable red laser line.
Featuring a Powell prism optical system and semiconductor laser diode,
the module produces a straight, evenly distributed line with minimized endpoint hotspots.
Its externally adjustable focusing structure allows users to optimize
line width according to installation height and working distance.

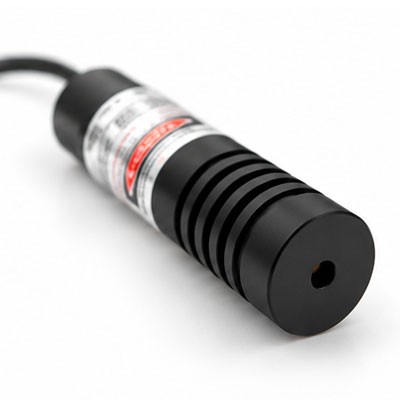

The standard Ø16×90mm housing supports industrial integration,

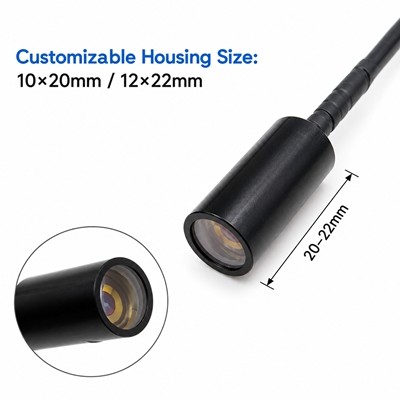

while alternative dimensions and optical configurations are available for OEM applications.
660nm red laser wavelength
120mW nominal optical output
Adjustable line width down to 0.1mm at short distances
Powell lens for uniform line distribution
Reduced bright spots at both line ends
External focus adjustment with locking mechanism
Indoor working distance over 12m under specified conditions
Semi-outdoor working distance up to 6m without direct sunlight
Installation height from 0 to 10m
Optional 5°–120° fan angles
Aluminum housing for heat dissipation
OEM / ODM customization available
| Parameter | Specification |
|---|---|
| Product Type | Uniform Red Line Laser Module |
| Model | RPM660AB120-GD16-WLD-0.1mm |
| Wavelength | 660nm |
| Laser Color | Red |
| Output Power | 120mW |
| Beam Pattern | Uniform Straight Line |
| Optical Element | Powell Prism |
| Minimum Adjustable Line Width | 0.1mm at 0.1–0.3m |
| Standard Dimensions | Ø16×90mm |
| Input Voltage | DC 2.8–5.2V |
| Working Current | ≤500mA |
| Fan Angle | 5°–120° Optional |
| Focus Adjustment | External Adjustable Focus |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Housing Material | Aluminum Alloy |
| Customization | Available |
| Working Distance | Adjustable Line Width |
|---|---|
| 0.1–0.3m | 0.1mm |
| 0.3–0.5m | 0.2mm |
| 0.5–0.8m | 0.3mm |
| 0.8–1m | 0.4mm |
| 1–1.5m | 0.5mm |
| 1.5–2m | 0.6mm |
| 2–2.5m | 0.7mm |
| 2.5–3m | 0.8mm |
| 3–4m | 1.0mm |
| 4–5m | 1.5mm |
Line widths are reference values under the stated working-distance conditions.
Actual results depend on focus adjustment, installation and optical configuration.
Unlike conventional cylindrical lens systems, a Powell prism redistributes
laser intensity to produce a more uniform line profile.
The optical design helps minimize excessive brightness at the center and reduces bright spots at both ends of the projected line.
This makes the module suitable for precision alignment and optical positioning systems requiring consistent line visibility.
The adjustable optical head allows operators to modify laser line thickness without intentionally shifting the line position.
Once the desired line width is achieved, the locking mechanism helps maintain the selected focus setting during equipment operation.
Industrial positioning and alignment
Precision machinery guidance
Cutting and processing equipment
Textile and garment positioning
Woodworking alignment
Machine vision illumination

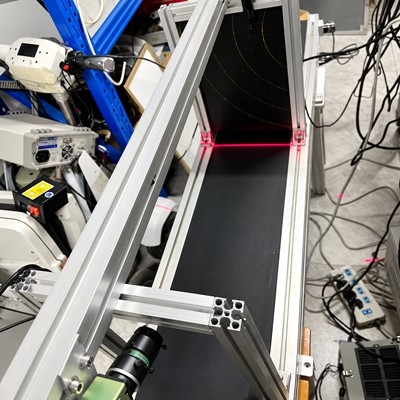

Automated production lines
Customized OEM optical systems
Laser module

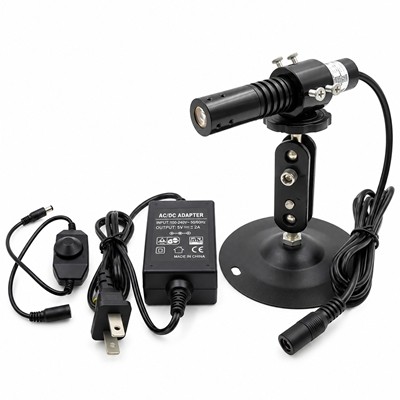

5V power adapter
Universal mounting bracket
Inline brightness controller with DC 4.5–8V input
Uniform Powell lens laser line solutions
Adjustable ultra-thin line projection
Red, green and blue wavelength options
Multiple housing sizes and fan angles
OEM / ODM optical customization
Technical specification and drawing support
