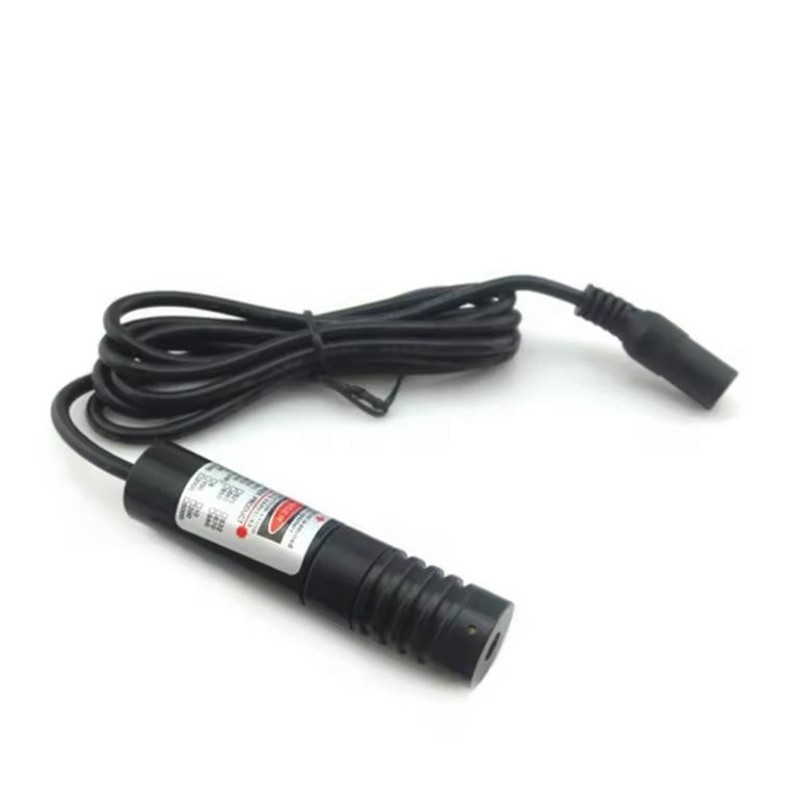

7.88° EXIT Arrow Laser Module

Product Item : HW 7.88 degrees
Category： Custom Laser Modules
Custom laser color
Lens Degree:7.88°

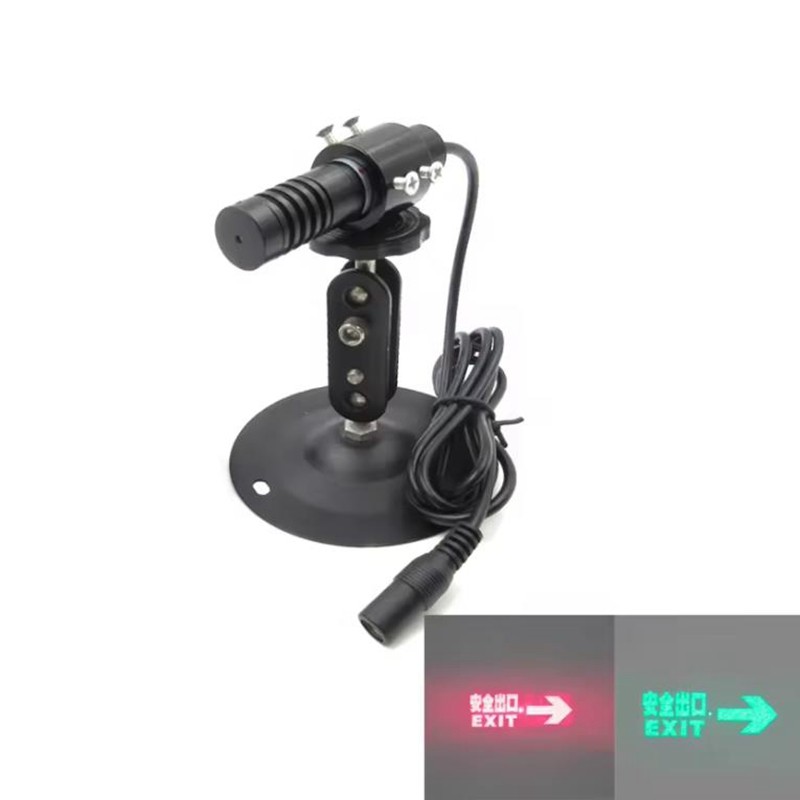

7.88 degree EXIT Safety exit Red laser with arrow effect
arrow at the exit laser module
INQUIRY EMAIL

7.88° EXIT Arrow Safety Laser Module

The7.88° EXIT Arrow Safety Laser Moduleis a special-pattern semiconductor laser designed to project a clearEXIT symbol with directional arrowfor safety guidance, emergency indication, industrial warning and visual navigation applications.

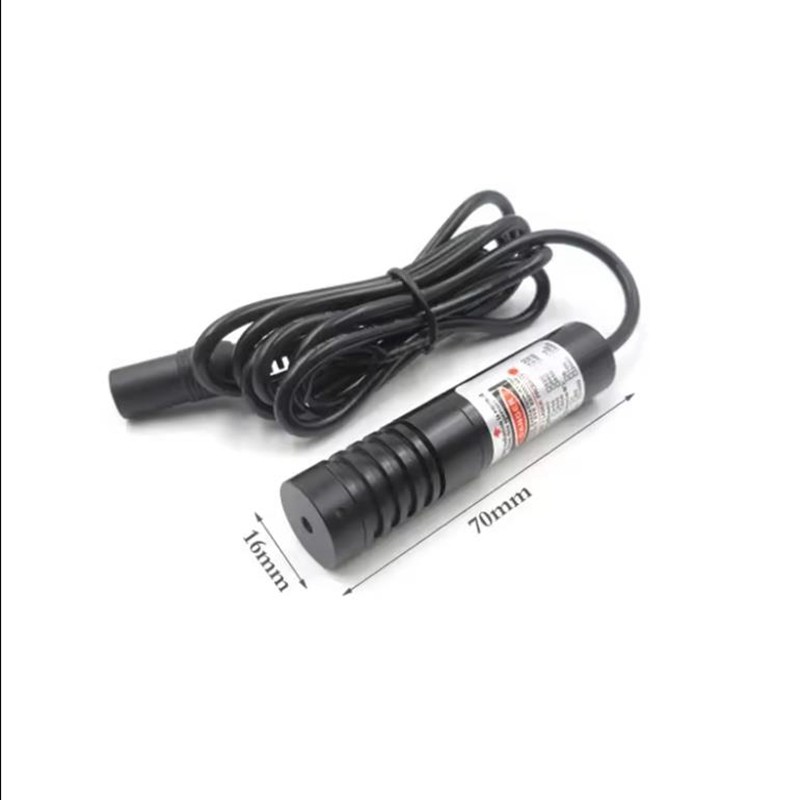

The standard projection angle is7.88° in the X directionand2.6° in the Y direction. At a working distance of 0.5m, the projected EXIT pattern measures approximately69mm × 23mm.

PhotexLaser supports customization of wavelength, output power, working voltage, housing size, projection angle, working distance and special icon patterns.

Key Features

EXIT symbol with arrow projection
7.88° horizontal projection angle
2.6° vertical projection angle
Clear safety guidance pattern
Red, green and blue wavelength options
Custom wavelength and output power
Compact industrial laser module
Special-pattern optical projection
Adjustable working distance
OEM / ODM customization available

Technical Specifications

Parameter	Specification
Product Type	EXIT Safety Icon Laser Module
Pattern	EXIT + Directional Arrow
X Direction Angle	7.88°
Y Direction Angle	2.6°
Pattern Size at 0.5m	Approx. 69mm × 23mm
Standard Wavelength	Red Laser / Customized
Optional Wavelengths	405nm–980nm
Output Power	Customizable
Working Voltage	Customizable
Housing Size	Customizable
Working Distance	Customizable
Optical Pattern	Special Icon Projection
Application	Safety Guidance / Emergency Indication

Projection Performance

At a working distance of0.5m:

X-direction projection angle:7.88°
X-direction pattern length:Approx. 69mm
Y-direction projection angle:2.6°
Y-direction pattern height:Approx. 23mm

The projected icon size increases proportionally with the working distance.

Optional HELP Circle Pattern

Photex Laser can also provide aHELP warning laser with circular pattern.

Typical specification:

Projection angle:2.86°
Working distance:0.5m
Circle diameter:Approx. 25mm

Applications

Emergency Exit Guidance

Suitable for:

Emergency exit indication
Directional safety guidance
Evacuation routes
Restricted-area navigation

Industrial Safety

Used for:

Factory safety indication
Equipment warning
Hazard-zone guidance
Visual instruction

Warehouse & Logistics

Applicable to:

Route indication
Loading-area guidance
Safety marking
Temporary projected signs

Public & Commercial Spaces

Suitable for:

Exit guidance
Directional marking
Emergency signage
Custom visual indication

Customization Options

Wavelength Options

405nm,450nm,520nm,532nm,635nm,650nm,670nm,685nm,780nm,808nm,830nm,850nm,905nm,980nm

Example configurations:

450nm Blue:100mW
520nm Green:50mW
Red laser power customizable

Housing Sizes

Common options:

9×23mm
10×30mm
12×40mm
16×70mm
22×110mm
26×110mm
40×110mm

Other sizes can be customized.

Output Power

Available customization:

0.5mW–500mW
1W
2W
Other power levels on request

Pattern Options

PhotexLaser supports:

EXIT + Arrow
HELP + Circle
Line
Cross
Dot
Circle
Right-angle pattern
Grid
Parallel lines
Multi-line pattern
Custom words, symbols and icons

Why Choose Photex Laser ？

Custom safety icon laser solutions
Flexible wavelength and power options
Special-pattern optical design
OEM / ODM engineering support
Custom mechanical and electrical configurations
Prototype and volume production available

Photex Laser provides customized EXIT, HELP and safety symbol laser modules for emergency guidance, industrial warning and special projection applications.
