Filter Design: Reflective (Dielectric Coating)
Average Transmission: ≥90% (700–1100 nm)
Blocking: OD4 / OD5 (Below 700 nm)
Blocking Range: 400–700 nm
Incident Angle: 0° (Normal Incidence)
Polarization: Unpolarized
Substrate: BK7 / Optical Glass / Fused Silica (Optional)
Coating: Optical Multilayer Dielectric Coating
Coated Surface: Single-side / Double-side
Size: Custom Size Available
Thickness: 1.0 mm / 1.1 mm / Custom
Surface Quality: 60/40 or 40/20
Flatness: λ/4 @ 632.8 nm
Operating Temperature: -20 ~ +80 °C
Application: IR Imaging, Machine Vision, Optical Sensing

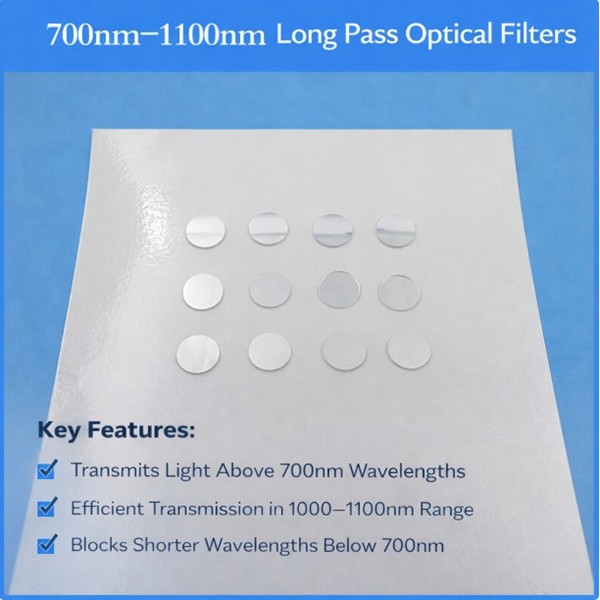

This 700–1100nm long pass infrared filter efficiently blocks
visible light and delivers high NIR transmission for clearer,
more accurate imaging. Designed for reliable performance,
it is perfect for infrared cameras, industrial vision systems, and custom optical applications.
