Photex Laser offers precision Red and Green Cross Line Laser Modules for industrial positioning,
cutting tables, garment manufacturing, machine alignment and automated production equipment.
Available in multiple wavelengths from 505nm to 660nm, the series provides clear,
uniform cross-line projection with externally adjustable line width.

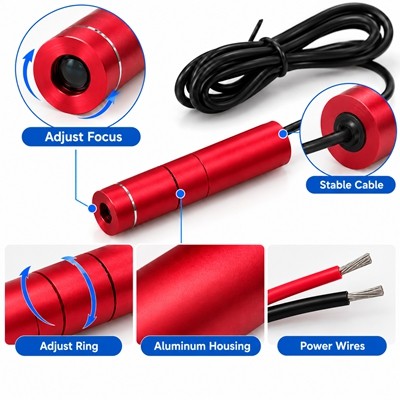

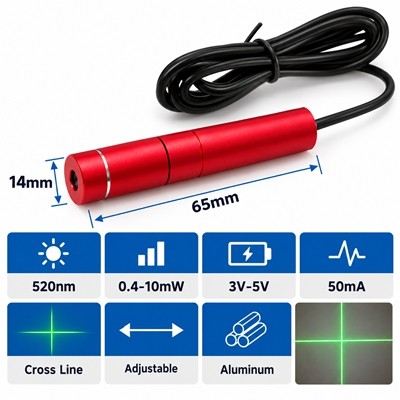

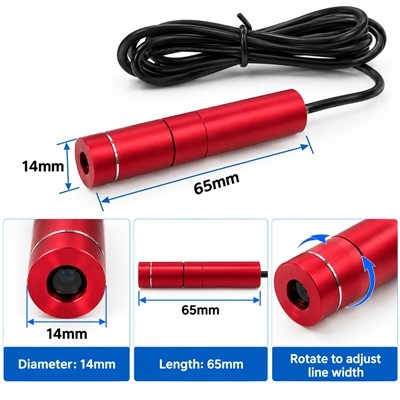

The compact Ø14 × 65mm aluminum housing features an adjustable optical system
and locking mechanism to maintain line positioning after adjustment.
Designed for industrial integration, these laser modules support customized wavelengths,
output powers, operating voltages and optical configurations.
Red & Green Options: Multiple wavelengths and power levels.
Adjustable Line Width: Approximately 0.4mm to several centimeters, depending on distance and configuration.
Stable Cross Projection: Clear horizontal and vertical laser lines.
External Focus Adjustment: Convenient line-width control.
Locking Mechanism: Helps maintain the adjusted optical setting.
Compact Housing: Ø14 × 65mm aluminum body.
Industrial Construction: Designed for heat dissipation and vibration resistance.
OEM/ODM: Custom optical and electrical specifications.
|
Wavelength |
Power |
Model |
Current |
|---|---|---|---|
|
655nm |
5mW |
M5AC655-1465HGD |
≤35mA |
|
655nm |
10mW |
M10AC655-1465HGD |
≤60mA |
|
655nm |
30mW |
M30AC655-1465HGD |
≤100mA |
|
655nm |
50mW |
M50AC655-1465HGD |
≤120mA |
|
658nm* |
100mW |
M100AC655-1465HGD |
≤150mA |
|
660nm* |
200mW |
M20AC655-1465HGD |
≤260mA |
|
637nm |
5mW |
M5AC637-1465HGD |
≤50mA |
|
635nm |
10mW |
M10AC6310-1465HGD |
≤100mA |
|
638nm |
20mW |
M20AC638-1465HGD |
≤110mA |
|
638nm |
30mW |
M30AC638-1465HGD |
≤150mA |
|
Wavelength |
Power |
Model |
Current |
|---|---|---|---|
|
515nm |
5mW |
M5A515-1465HGD |
≤180mA |
|
515nm |
10mW |
M10A515-1465HGD |
≤200mA |
|
505nm |
35mW |
M35A505-1465HGD |
≤300mA |
|
520nm |
50mW |
M50A520-1465HGD |
≤400mA |
|
520nm* |
85mW |
M85A85-1465HGD |
≤600mA |
The following figures are manufacturer-provided reference cross-line lengths under different lighting conditions.
Each figure represents the approximate length of the horizontal and vertical lines, not the guaranteed detection range.
|
Laser Type |
Indoor |
Semi-Outdoor |
Direct Sunlight |
|---|---|---|---|
|
655nm 5mW |
1.5m |
— |
— |
|
655nm 10mW |
3m |
— |
— |
|
655nm 30mW |
6m |
2m |
— |
|
655nm 50mW |
8m |
4m |
— |
|
658nm 100mW |
10m |
5m |
— |
|
660nm 200mW |
12m |
6m |
— |
|
637nm 5mW |
3m |
— |
— |
|
635nm 10mW |
6m |
2m |
— |
|
638nm 20mW |
8m |
4m |
— |
|
638nm 30mW |
12m |
6m |
— |
|
515nm 5mW |
5m |
2m |
— |
|
515nm 10mW |
7m |
3m |
— |
|
505nm 35mW |
9m |
4.5m |
2m |
|
520nm 50mW |
12m |
6m |
3m |
|
520nm 85mW |
13m |
6.5m |
3.5m |
Actual projection performance depends on installation height, ambient light, target surface and optical adjustment.

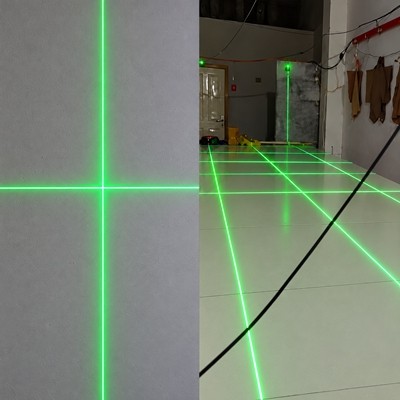

Fabric Cutting & Garment Manufacturing
Cross-line positioning for fabric cutting tables, textile alignment and garment production equipment.
Cutting & CNC Equipment
Laser cross projection for material positioning, machine setup and cutting alignment.
Industrial Assembly & Positioning
Crosshair reference projection for component alignment and automated assembly.
Precision Alignment Systems
Red or green cross-line references for machinery, fixtures and production equipment.
Adjustable Line Width
External optical adjustment allows users to change line thickness without intentionally shifting the crosshair position.
Precision Optical Design
Quality laser diodes and optical components provide clear cross-line projection for industrial positioning.
Durable Aluminum Housing
Coated aluminum construction and internal thermal materials support heat dissipation and mechanical stability.
Flexible Laser Configurations
Multiple red and green wavelengths, output powers and optical configurations are available.
OEM/ODM Manufacturing
Customized solutions for equipment manufacturers, system integrators and industrial distributors.
Photex Laser supports flexible OEM/ODM laser module manufacturing.
|
Custom Option |
Availability |
|---|---|
|
Laser Color |
Red / Green |
|
Wavelength |
Custom Available |
|
Output Power |
Custom Available |
|
Line Width |
Adjustable |
|
Housing Dimensions |
Custom Available |
|
Working Voltage |
Custom Available |
|
Cable Length |
Custom Available |
|
Connectors |
Upon Request |
|
Mounting Bracket |
Custom Available |
|
Optical Configuration |
Upon Request |
Send us your required wavelength, power, projection distance, mounting height and quantity for technical evaluation and quotation.
Q1: What is a cross line laser module?
A cross line laser module projects intersecting horizontal and vertical laser lines for industrial alignment and positioning.
Q2: Can the laser line width be adjusted?
Yes. The external focusing mechanism supports adjustable line width and a locking function.
Q3: What is the difference between red and green cross line lasers?
Green laser lines generally appear brighter to the human eye than red lines of similar optical power
under many lighting conditions. Actual visibility depends on wavelength, output power and ambient light.
Q4: Can the laser module be used on cutting tables?
Yes. Cross line laser modules can provide visual alignment references for cutting tables and manufacturing equipment.
Q5: Can Photex Laser provide customized products?
Yes. OEM/ODM options include wavelength, output power, voltage, housing size, cable length and optical configurations.
Q6: What is included in the complete set?
The standard set includes a laser module, dedicated power supply and universal mounting bracket.
Looking for a Reliable Cross Line Laser Module Manufacturer?
Photex Laser provides red and green crosshair laser modules for cutting machines, garment manufacturing, industrial positioning and automation.
Contact us with your required wavelength, output power, installation height, line length and order quantity for a customized quotation.
