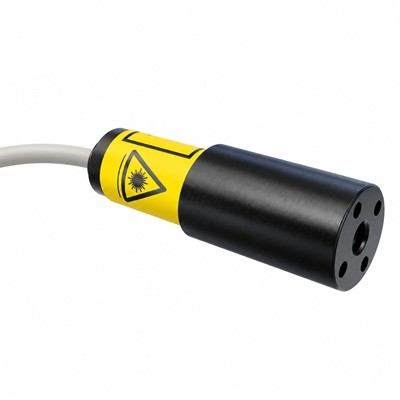

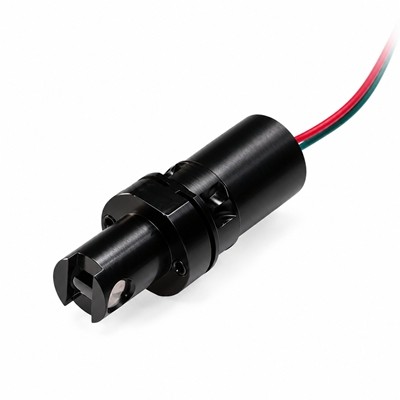

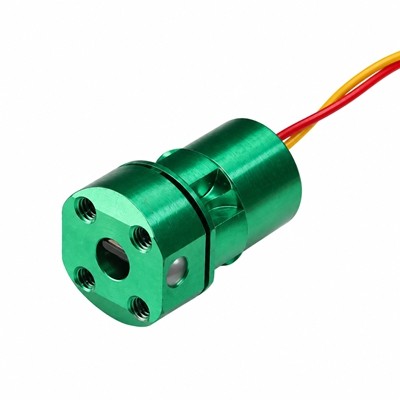

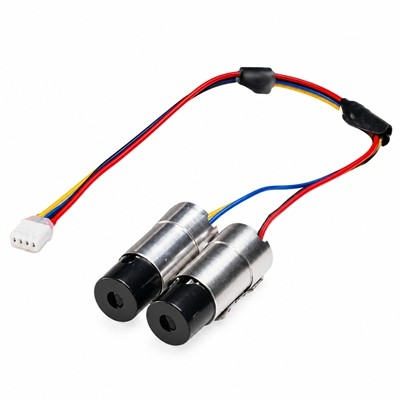

The Industrial Line Laser Module is a customizable laser line generator designed for machine positioning,
alignment, cutting guidance, measurement and automation equipment.
Available in 635–665nm redand505–535nm green wavelength ranges, the module can be configured
with different output powers, fan angles and optical systems to meet
different working distances and line projection requirements.
With output power options from0.2mW to 200mWand fan angles from5° to 180°,
the laser can be adapted for a wide range of OEM and industrial applications.
Choose different wavelengths according to visibility and equipment requirements:
Different output powers can be selected according to working distance,
ambient lighting conditions and required line visibility.
Different line projection angles are available for short, medium and wide line applications.
Line straightness can reach≤20″, making the module suitable for industrial
alignment and positioning applications requiring a defined reference line.
Optical configurations can include:
Glass Cylindrical Lens / Glass Collimating Lens / PMMA Optical Lens
The optical configuration can be selected according to line width,
working distance and fan angle requirements.
| Parameter | Specification |
|---|---|
| Laser Type | Line Laser Module |
| Red Wavelength | 635–665nm |
| Green Wavelength | 505–535nm |
| Output Power | 0.2–200mW |
| Fan Angle | 5°–180° |
| Line Straightness | ≤20″ |
| Line Width | Approx. 2mm/5m, 4mm/10m under specified conditions |
| Concentricity | ≤100mm/10m |
| Operating Voltage | DC 2–30V / Custom |
| Optical Lens | Optical Glass / PMMA |
| Housing | Custom Available |
| Lead Wire | Custom Available |
| OEM / ODM | Supported |
Projects a visible reference line onto the workpiece to assist operators
with positioning and alignment.
Suitable for integration intowoodworking, textile, stone and other
cutting equipmentwhere a visible cutting reference line is required.
The projected laser line can be used as a visual reference for equipment setup,
workpiece alignment and production positioning.
Compact line laser modules can be integrated into automation
systems requiring visible positioning references.
Different optical configurations can support alignment, measurement and inspection applications.
Customized line laser projection can also be evaluated for machine vision and optical inspection systems.
Line lasers are widely marketed for precisely these kinds of alignment,
positioning, machine-vision and industrial integration applications.
Realpoo supports customized line laser modules for different industrial equipment.
Available customization includes:
Wavelength— Red / Green / Custom
Output Power— 0.2–200mW
Fan Angle— 5°–180°
Line Width— Custom
Working Distance— Custom
Operating Voltage— Custom
Optical Lens— Glass / PMMA
Housing Structure— Custom
Cable Length— Custom
Connector— Custom
For faster selection and quotation, please provide:
Wavelength + Output Power + Working Distance + Required Line Length + Line Width + Voltage + Application
Our team can recommend a suitable laser configuration according to your equipment requirements.
Custom Optical Solutions
Different wavelengths, powers, fan angles and optical configurations are available.
OEM / ODM Support
Customized housing, wiring, voltage and optical performance according to equipment requirements.
Quality Control
Optical output and projection performance are inspected before shipment.
Engineering Support
Configuration recommendations based on working distance and application.
Sample Support
Samples can be supplied for testing and equipment integration before volume orders.
A line laser module uses dedicated optics to convert the laser beam into a visible line,
providing a reference for positioning, alignment, cutting guidance and other industrial applications.
This series supports635–665nm red laserand505–535nm green laserconfigurations.
Yes. The projected line length depends mainly on thefan angle and working distance.
Please provide both parameters when requesting a quotation.
Fan angles from approximately5° to 180°can be configured according to the optical system.
Yes. Please provide the required line width and working distance
so that the appropriate optical configuration can be evaluated.
Yes. Wavelength, power, voltage, fan angle, optics, housing,
cable and connector configurations can be customized.
