Photex Laser offersVirtual Keyboard Laser Modulesin 650nm red, 520nm green and 450nm blue.
Featuring diffractive optics, clear keyboard pattern projection and a compact
Ø16 × 70mm aluminum housing, these modules are ideal for optical displays,
demonstrations and OEM laser projection systems.
Clear Projection:Sharp virtual keyboard patterns.

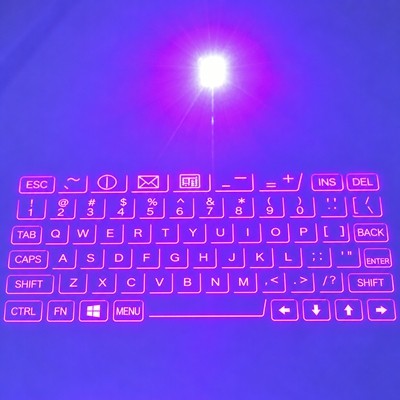

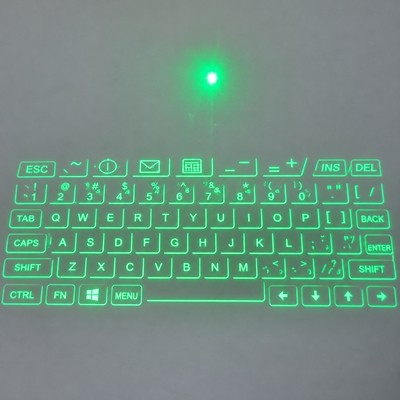

RGB Options:650nm Red / 520nm Green / 450nm Blue.
Compact Design:Ø16 × 70mm aluminum housing.
Diffractive Optics:Precision keyboard pattern projection.
Power Options:50mW / 100mW diode power.
Stable Operation:Intelligent IC driver.
OEM / ODM:Custom power, patterns and dimensions.
| Parameter | Specification |
|---|---|
| Wavelength | 650nm / 520nm / 450nm |
| Diode Power | 50mW / 100mW |
| Voltage | DC 2.8–5.2V |
| Current | <500mA |
| Dimensions | Ø16 × 70mm |
| Optical Element | Diffractive Grating |
| Projection Area | 245 × 100mm |
| Projection Distance | 108mm (Reference) |
| Projection Height | 60mm (Reference) |
| Customization | OEM / ODM Available |
Projection dimensions depend on installation conditions.
Diode power does not necessarily equal emitted optical power.
RPM100XNJP650-16GD-1
RPM650XNJP650-16GD-2-112
RPM650XNJP650-16GD-3-365

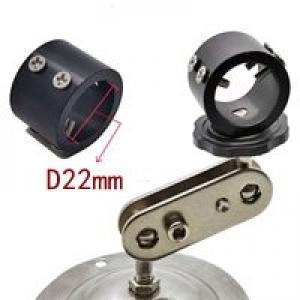

Standard Kit:Laser Module + Mounting Bracket + Adjustable Power Supply (configuration dependent).

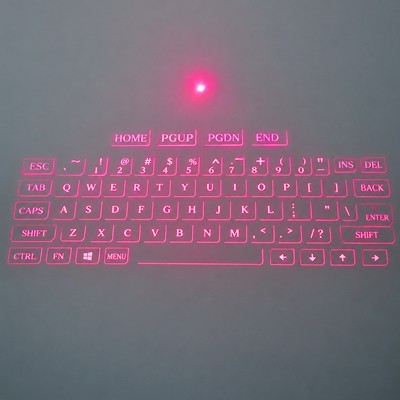

Virtual Keyboard Pattern Projection
Interactive Display Prototypes
Educational Optical Demonstrations
OEM Laser Projection Equipment
Exhibitions & Technology Displays
Note: Keyboard projection only. Key detection requires additional sensors.
Photex Laser supports customized:
Wavelength & Laser Power
Projection Pattern & Working Distance
Housing Size & Operating Voltage
Cable Length & Mounting Options
Precision Diffractive Optical Design
Red, Green & Blue Laser Options
Compact & Durable Aluminum Housing
Flexible OEM / ODM Manufacturing
Professional Technical Support
Q: Can it project a keyboard pattern?
Yes, using diffractive laser optics.
Q: Are green and blue versions available?
Yes, 520nm green and 450nm blue options are available.
Q: Can projection size and patterns be customized?
Yes, based on your application requirements.
Q: Does it support typing detection?
No. Additional sensing hardware is required.
Looking for a reliableVirtual Keyboard Laser Module Manufacturer?
ContactPhotex Laserfor samples, technical specifications and OEM solutions.
Send us your wavelength, projection size, working distance and quantity for a competitive quotation.
