The670nm 10mW Red Dot Laser Moduleis a compact visible
red laser source designed for positioning, alignment and optical equipment.

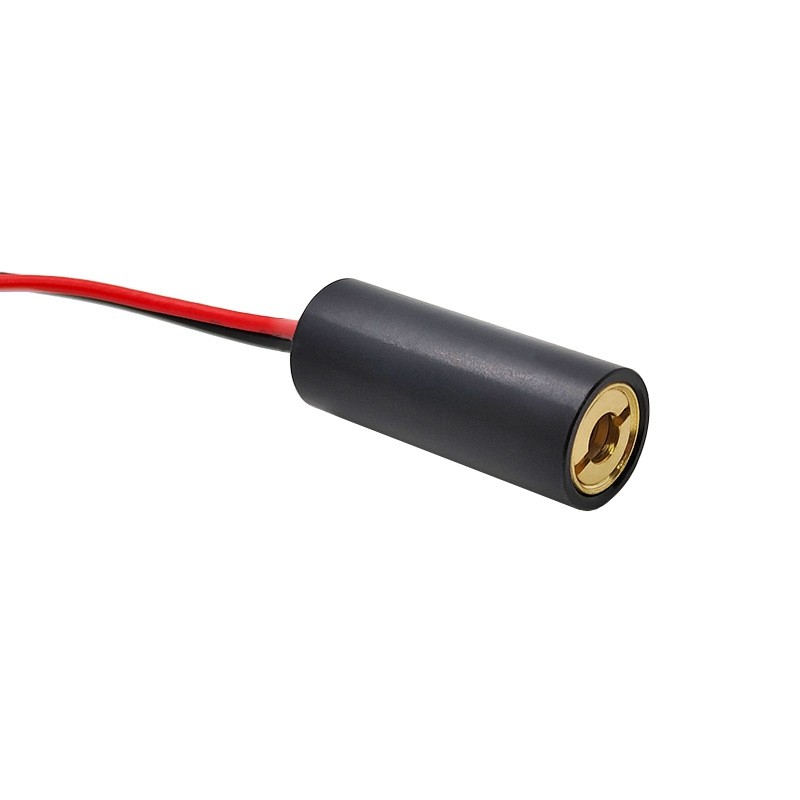

Featuring aΦ10×25mm full metal aviation aluminum housing,
adjustable-focus optical design and APC circuit,
this module provides a compact and flexible laser solution for equipment integration.
The standard configuration uses a 670nm
red laser wavelengthwith an output power of less than 10mW.
Custom wavelengths, output powers,
TTL control and housing specifications are available for OEM and ODM projects.
The module uses a670nm ±10nm visible red laser source.
The red laser dot provides a clear reference point for positioning and alignment applications.
Custom wavelengths are available according to project requirements.
The module features a compact:

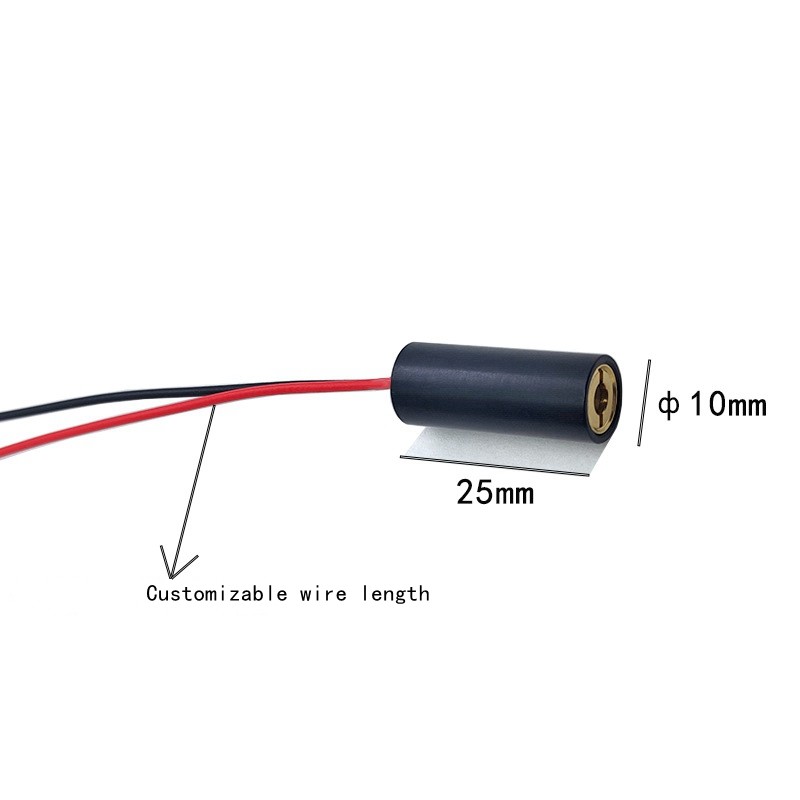

Φ10×25mm housing
The full-metal aviation aluminum construction provides
a compact and robust mechanical structure for integration into optical and electronic equipment.
Custom housing dimensions are also available.
The module supports:

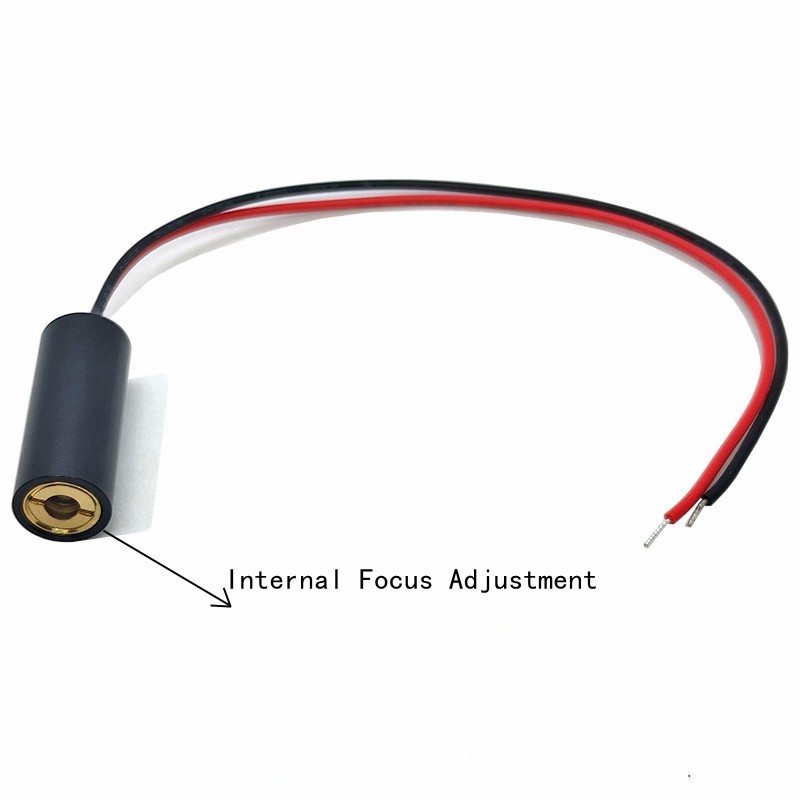

Adjustable Focus
or
Fixed Focus
The adjustable-focus version allows the laser beam to
be optimized according to the customer's required working distance.
The beam shape is:
Dot / Elliptical
The specified beam spot is approximately:
<12mm at 10m
Actual beam appearance may vary according to working distance and ambient lighting conditions.
The standard laser module uses anAPC circuitto help maintain stable laser output.
For applications requiring electronic modulation,TTL control can be customized.
This makes the module suitable for integration into customized optical and electronic systems.
The housing is made fromaviation aluminumand
features an insulating oxide matte black finish.
The black surface treatment provides a professional
appearance while maintaining the compact mechanical design.
Custom housing sizes and configurations can be discussed for OEM applications.
| Item | Specification |
|---|---|
| Product Type | Red Dot Laser Module |
| Wavelength | 670nm ±10nm |
| Output Power | <10mW |
| Custom Power | Available |
| Custom Wavelength | Available |
| Beam Shape | Dot / Elliptical |
| Housing Size | Φ10×25mm |
| Housing Material | Aviation Aluminum |
| Housing Type | Full Metal Housing |
| Surface Finish | Insulating Oxide Matte Black |
| Housing Color | Black |
| Focus | Adjustable / Fixed |
| Beam Spot | <12mm at 10m |
| Working Range | <200m Indoor |
| Circuit | APC |
| TTL | Customizable |
| Operating Voltage | 2.8–5.2V DC |
| Operating Current | <35mA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |
| Tail Wire | 26# Red / Black |
| Tail Wire Length | Approx. 15cm |
| Cable Option | 1m DC Female Plug Cable |
| Safety Class | Class IIIB |
| Package | 1 × Laser Module |
The specified indoor working range is:
<200 meters
Actual visibility and laser-dot clarity may vary depending
on ambient lighting, working distance and environmental conditions.
For applications with a defined working distance,
the focus can be adjusted to optimize the laser dot.
The laser module can be customized according to different project requirements.
Available customization may include:
Custom output powers are available according to application requirements.
We support OEM/ODM customization for customers requiring
specific optical, electrical and mechanical configurations.
Customers can provide drawings, specifications or samples for engineering evaluation.
The670nm red dot laser moduleis suitable for:
Suitable for equipment with limited installation space.
Full-metal housing provides a compact and robust structure.
Focus can be optimized for different working distances.
Supports stable laser output.
TTL modulation can be customized for OEM systems.
Wavelength, power, housing, cable and connector can be customized.
Designed for continuous operation exceeding 10,000 hours.
The standard wavelength is670nm ±10nm, producing a visible red laser beam.
The supplied specification lists the exit pupil power as<10mW. Custom output powers are available.
The standard housing size isΦ10×25mm.
Yes. The module supportsadjustable focus or fixed focus.
Adjustable focus is recommended when a specific working distance needs to be optimized.
Yes.TTL control can be customized.
The standard circuit isAPC.
The housing is made fromaviation aluminumwith a full-metal construction.
Yes. Custom dimensions are available for OEM applications.
Yes. Customized wavelength options can include635nm,
650nm, 780nm, 850nm and 980nm, depending on project requirements.
The specified service life ismore than 10,000 hours of continuous operation.
The supplied specification identifies this configuration asClass IIIB.
Appropriate laser safety controls and precautions should be followed during installation and operation.
