The650nm 5mW Red Laser Moduleis a compact visible red laser source designed for positioning, alignment and optical equipment.

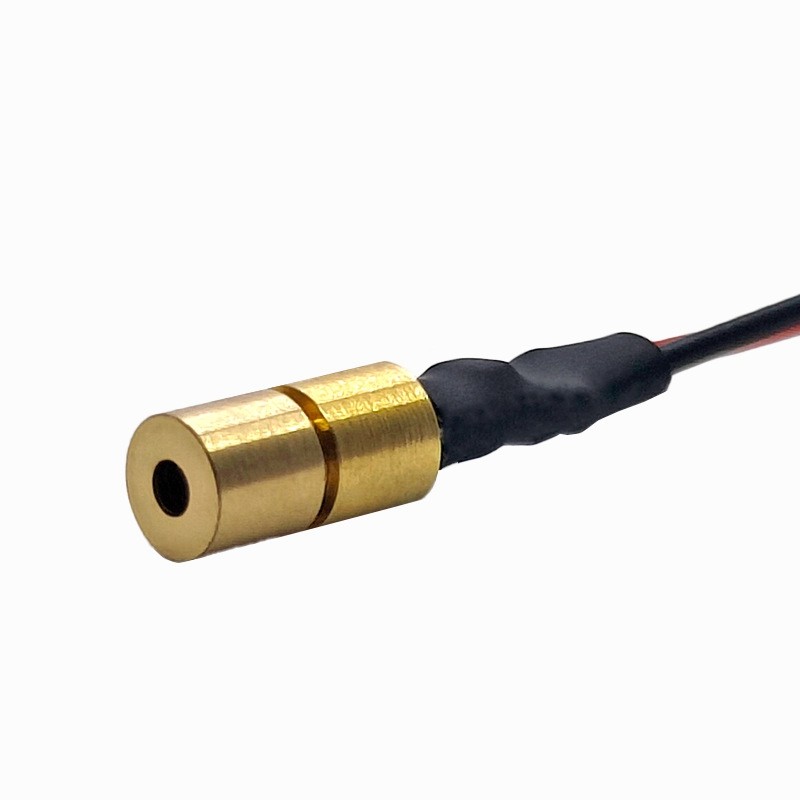

Featuring a4×13.7mm full metal copper housing, the module combines a compact mechanical design with adjustable optical focusing and stable APC laser control.
The standard configuration uses a650nm red laser wavelengthwith an output power of less than 5mW.
Custom wavelengths, output power, TTL control and housing options are available for OEM applications.
The laser module features a compact4×13.7mm copper housingwith a full metal construction.
The compact cylindrical design makes it suitable for integration into equipment with limited installation space.
A black housing option can also be produced according to customer requirements.
The standard laser wavelength is:
650nm ±10nm
The visible red output provides a clear laser reference point for positioning and alignment applications.
For customized projects, other wavelengths are available, including:
This allows the same compact mechanical platform to be adapted to different optical applications.
The module supports:
Adjustable Focus
or
Fixed Focus
The standard adjustable-focus configuration allows the laser beam to be optimized according to the customer's required working distance.
The beam shape is:
Dot / Elliptical
Actual beam visibility and spot size may vary depending on working distance and ambient lighting conditions.
The module uses anAPC circuitto support stable laser output during operation.
For applications requiring electronic modulation,TTL control can be customized.
This makes the module suitable for integration into customized optical and electronic systems.
With a4×13.7mm compact housing, this laser module is designed for
applications where both optical performance and installation space are important.
The full metal copper housing provides a robust mechanical structure
suitable for integration into various instruments and equipment.
| Item | Specification |
|---|---|
| Product Type | Red Laser Module |
| Wavelength | 650nm ±10nm |
| Custom Wavelength | 635 / 780 / 850 / 980nm |
| Output Power | <5mW |
| Custom Power | Available |
| Beam Shape | Dot / Elliptical |

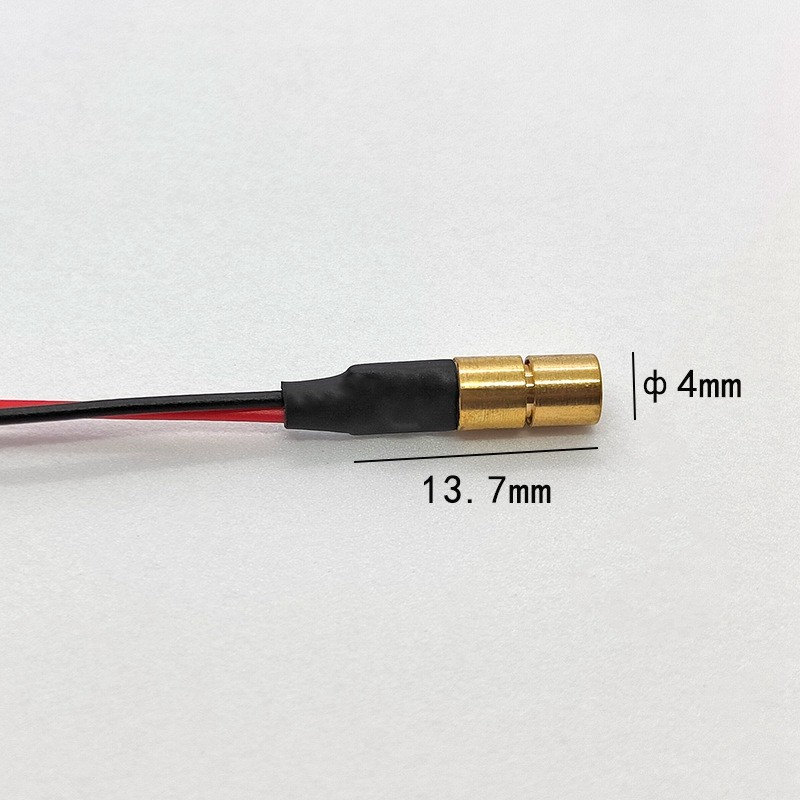

| Housing Size | 4×13.7mm |
| Housing Material | Copper |
| Housing Construction | Full Metal |
| Standard Color | Copper |
| Optional Color | Black |
| Focus | Adjustable / Fixed |
| Circuit | APC |
| TTL | Customizable |
| Working Voltage | 2.8–5.2V DC |
| Working Current | <35mA |
| Working Range | <100m Indoor |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |

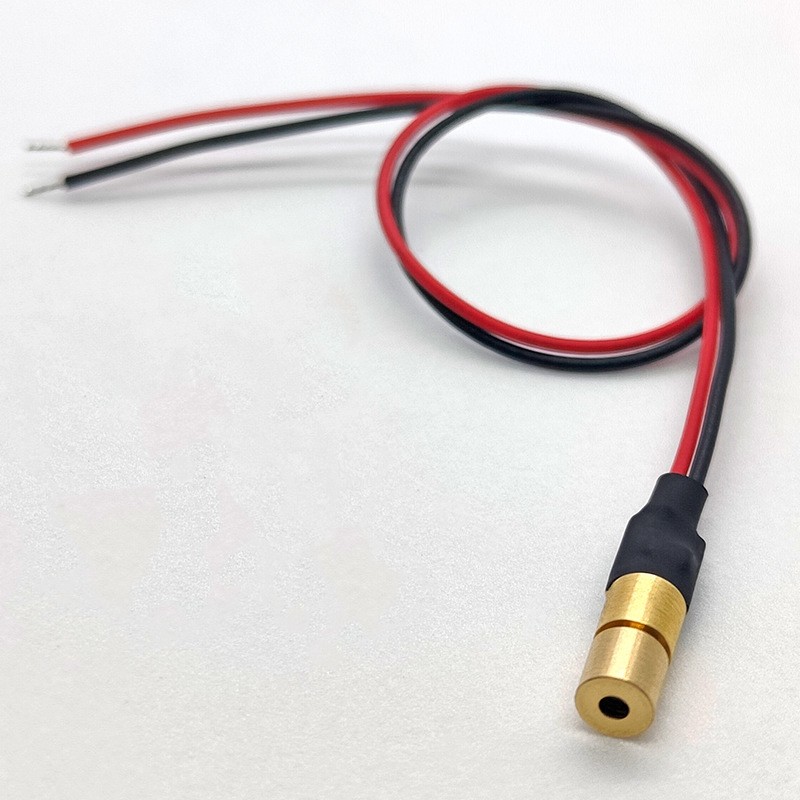

| Tail Wire | 28# Red / Black |
| Tail Wire Length | Approx. 15cm |
| Cable | 1m DC Female Plug Cable |
| Safety Class | Class IIIA |
| Package | 1 × Laser Module |
The typical indoor working range is:
<100 meters
Actual laser visibility and clarity can vary depending on
ambient lighting conditions, working distance and installation environment.
For applications requiring a specific working distance,
the focus can be optimized according to customer requirements.
We provide customized laser module solutions for OEM and ODM projects.
Available customized wavelengths include:
635nm / 650nm / 780nm / 850nm / 980nm
The650nm red laser modulecan be used for:
4×13.7mm housing for space-limited equipment.
Copper construction provides a robust compact mechanical structure.
Focus can be adjusted according to the required working distance.
APC circuit supports stable laser output.
TTL modulation is available for customized electronic control.
635nm, 650nm, 780nm, 850nm and 980nm configurations can be customized.
Customized power, wavelength, housing, cable and connector options are available.
The standard wavelength is650nm ±10nm.
The standard650nm configuration is a visible red laser,
not an infrared laser. For infrared applications,
780nm, 850nm and 980nmwavelength options can be customized.
The standard exit pupil optical power is less than 5mW.
Other power levels can be customized.
The housing size is4×13.7mm.
Yes. The module can be supplied withadjustable focus or fixed focus.
Adjustable focus is recommended when the customer has a specific working-distance requirement.。m
Yes. The standard circuit is APC, andTTL control can be customized.
Yes. The standard housing is copper-colored, and ablack housingcan be produced.
Besides the standard 650nm version,
customized wavelengths include635nm, 780nm, 850nm and 980nm.
The service life is specified asmore than 10,000 hours of continuous operation.
Yes. We can customize wavelength, output power, focus,
housing, cable, connector, TTL control and other specifications.
The supplied specification identifies this configuration asClass IIIA.
Appropriate laser safety precautions should be followed during installation and operation.
