The650nm 5mW Red Dot Laser Moduleis a compact
visible red laser source designed for point positioning,
alignment and laser indication applications.
With a small Φ5mm housing, fixed-focus optical design and
APC drive circuit, the module provides a stable red laser dot while requiring minimal installation space.
It is suitable for integration into optical instruments,
positioning systems, electronic equipment and customized OEM products.

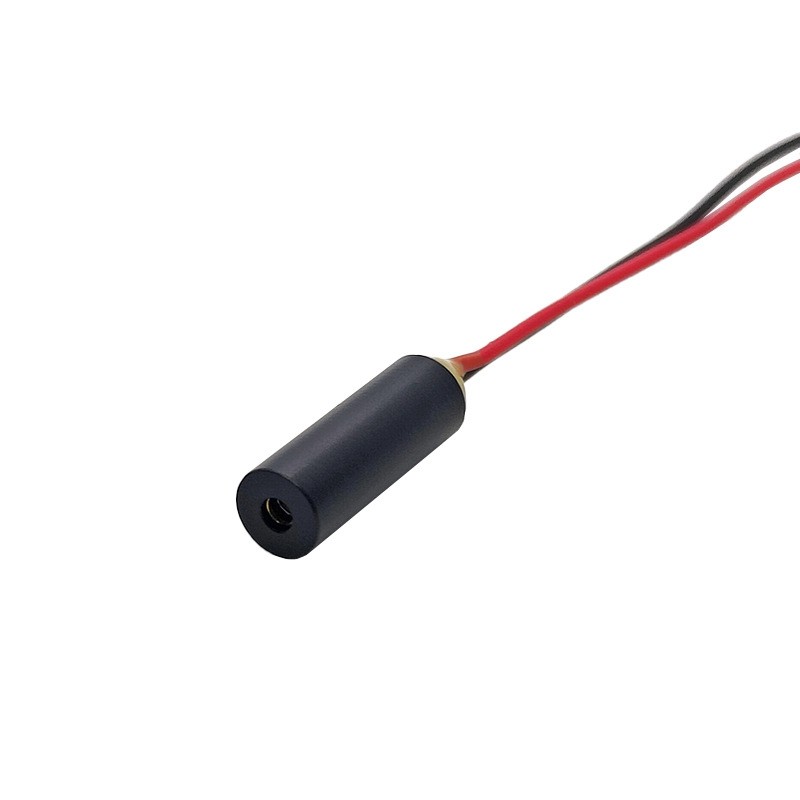

The module features a compact5mm diameter housing, making it suitable for equipment where installation space is limited.
Its small cylindrical structure allows easy integration into optical and electronic assemblies.
The module uses a650nm red laser source,

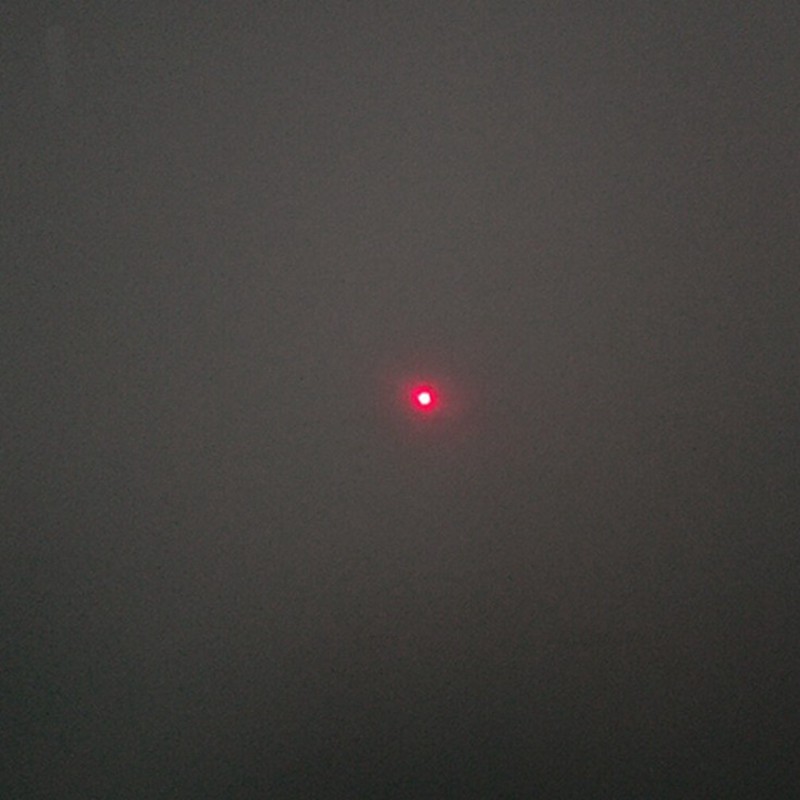

providing a clearly visible red laser dot for positioning and alignment.
The standard output power isless than 5mW,
while other output power levels can be customized according to application requirements.
The module uses afixed-focus optical configurationto provide a stable red laser dot.

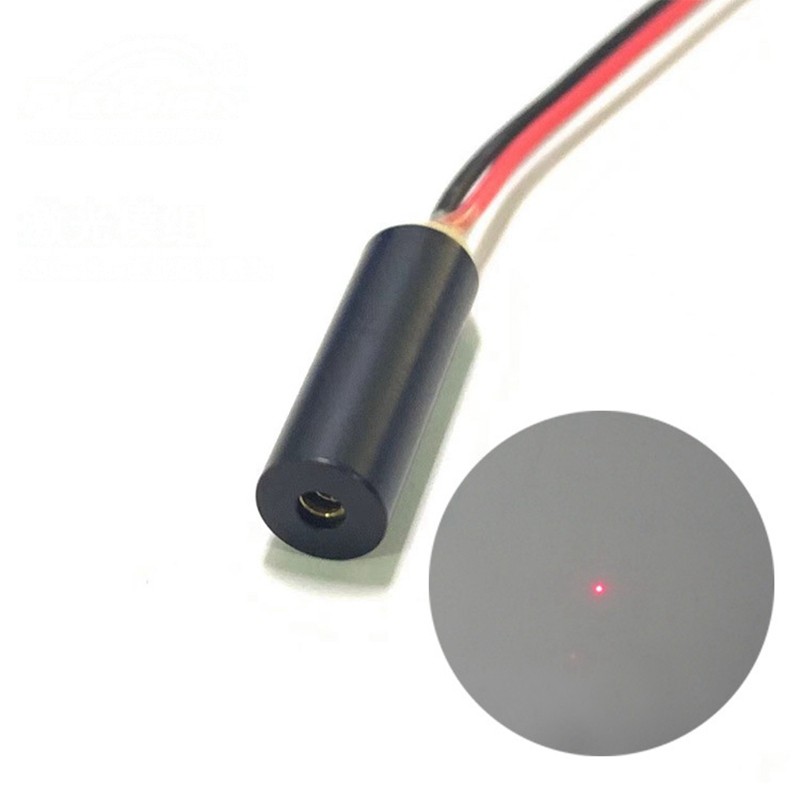

The dot is elliptical in shape, and actual beam appearance
can vary depending on working distance and ambient lighting conditions.
The integratedAPC circuithelps maintain stable laser output during continuous operation.
For applications requiring electronic laser control,TTL modulation can be customized.
The module is designed for continuous operation with a service life of:
>10,000 hours
This makes it suitable for equipment requiring reliable long-term laser operation.
| Item | Specification |
|---|---|
| Wavelength | 650nm |
| Output Power | <5mW |
| Custom Output | Available |
| Laser Color | Red |
| Beam Shape | Dot / Elliptical |

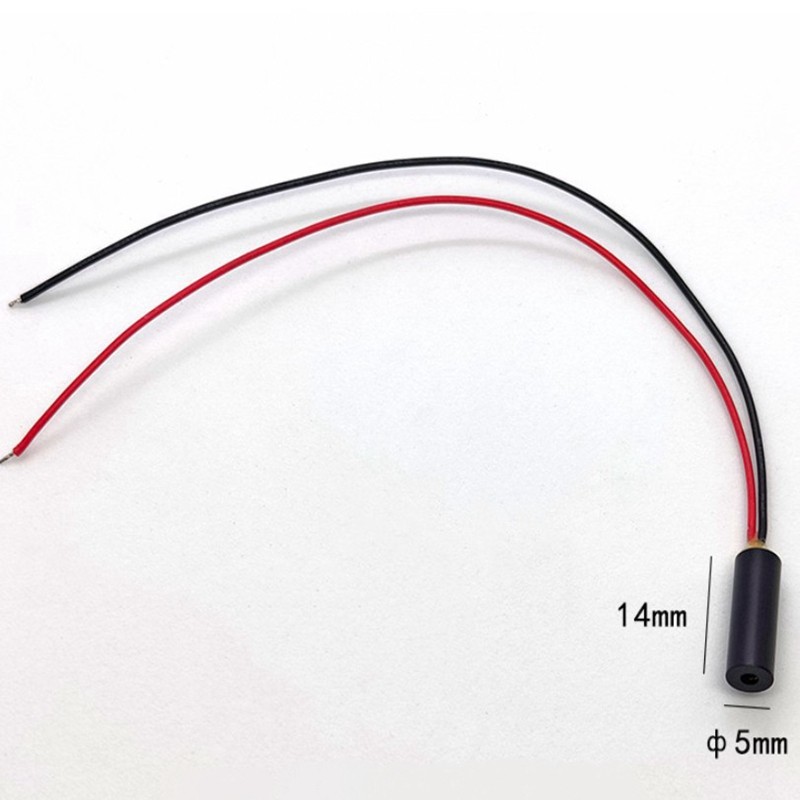

| Housing Diameter | Φ5mm |
| Focus | Fixed Focus |
| Working Range | <100m Indoor |
| Circuit | APC |
| TTL | Customizable |
| Working Voltage | 2.8–5.2V DC |
| Working Current | <35mA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |
| Tail Wire | 28# Red & Black |
| Tail Wire Length | Approx. 15cm |
| Cable | 1m DC Female Plug Cable with Adapter |
| Safety Class | Class IIIA |
| Package | 1 × Laser Module |
The visible red laser dot provides a convenient reference point for equipment positioning and alignment.
Typical applications include:

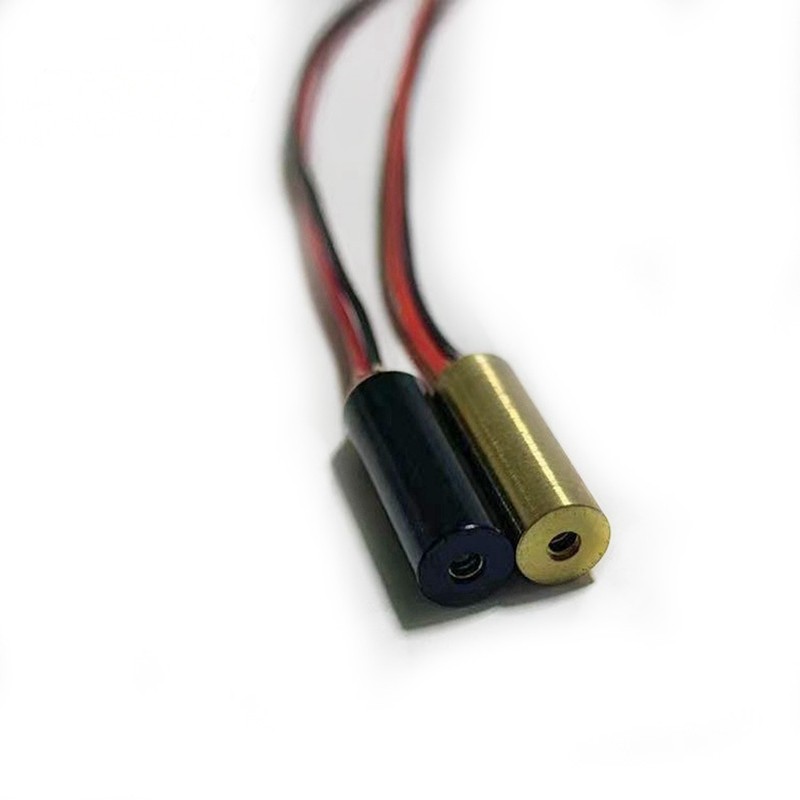

TheΦ5mm cylindrical housingmakes this laser module particularly suitable for compact equipment.
The module can be integrated into:
We provide OEM/ODM laser module customization according to customer requirements.
Available options include:
For OEM projects, customers can provide drawings, specifications or samples for engineering evaluation.
Small cylindrical housing for space-limited equipment.
650nm wavelength provides a clearly visible red positioning point.
APC circuit supports stable laser operation.
Simple and reliable optical configuration.
Power, TTL, cable, connector and mechanical specifications can be customized.
Designed for continuous operation with a service life of more than 10,000 hours.
The standard wavelength is650nm, producing a visible red laser beam.
The standard output power isless than 5mW. Other output power levels can be customized.
The housing diameter isΦ5mm.
This model uses afixed-focus optical design.
Yes.TTL control can be customizedaccording to customer requirements.
The standard module uses anAPC circuitfor stable laser output.
The standard working voltage is2.8–5.2V DC.
Yes. Cable length, connector and wire configuration can be customized for OEM applications.
The designed service life ismore than 10,000 hoursunder continuous output/use conditions.
The supplied specification identifies this configuration as Class IIIA.
Appropriate laser safety precautions should be followed during installation and operation.
