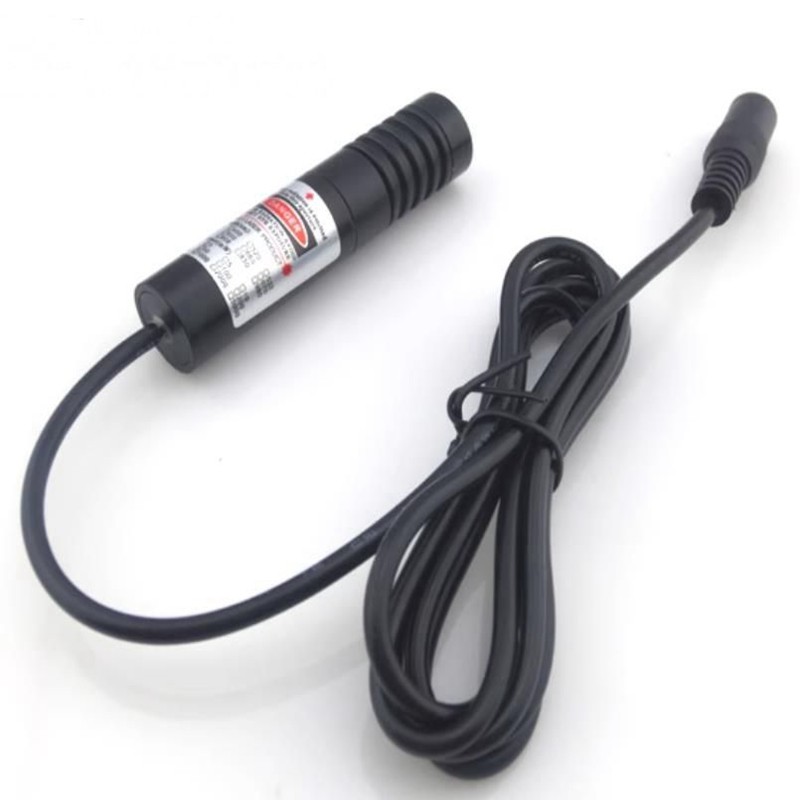

3 Parallel Line Laser Module
The3 Parallel Line Laser Moduleis a precision structured light laser source designed to project three uniform parallel laser lines for industrial positioning, alignment, measurement and machine vision applications.
Using an imported German grating optical plate and precision laser beam shaping technology, the module generates clear and evenly spaced parallel lines with excellent collimation and stability.
Available in650nm red, 520nm green and 450nm blue wavelengths, this multi-line laser module supports customized output power, working distance, line spacing, housing size and optical patterns.
Photex Laser provides OEM/ODM solutions for industrial laser positioning and optical projection systems.
Key Features
-
Three Parallel Laser Line Projection
-
Adjustable Line Width & Spacing
-
Imported German Grating Optical Lens
-
31° Projection Angle
-
High Brightness and Uniform Lines
-
Excellent Collimation Stability
-
650nm Red / 520nm Green / 450nm Blue Options
-
Aviation Aluminum Housing
-
Shock Resistant & Anti-Static Design
-
24-Hour Continuous Operation Capability
-
OEM / ODM Customization Available
Technical Specifications
Excitation mode: electric excitation type
Working material: semiconductor
Optical path: internal optical path
Output type: power type
Transmission signal: single power supply type
Speed: High speed
Channel: Single channel
Output wavelength: 650/520/450 (nm)
The installation height of 0 m - 5 m can be used
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

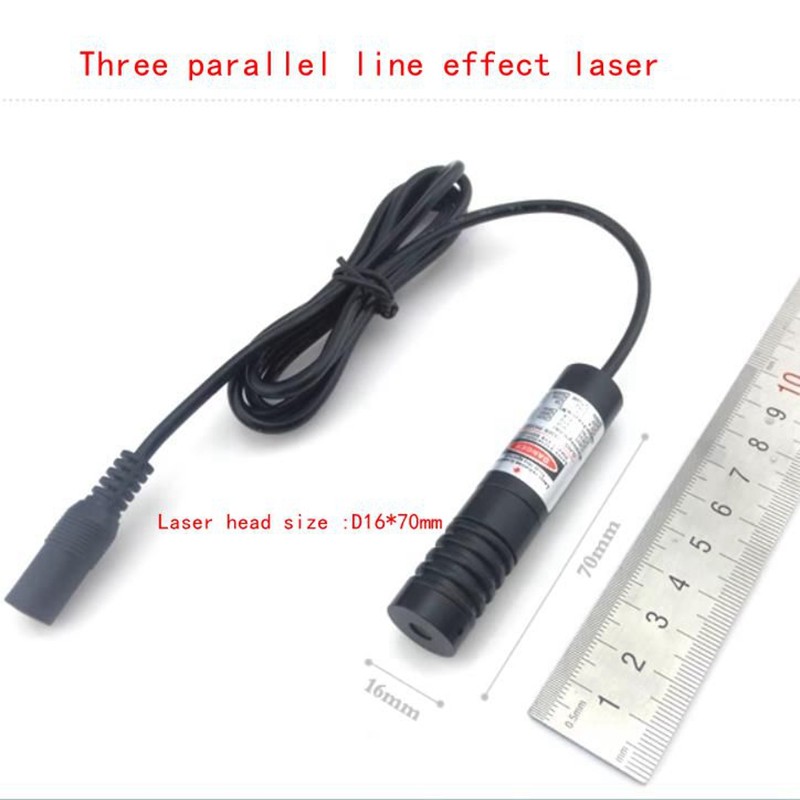

Dimensions: 16*70mm (customizable)
Optical lens: Grating plate (imported from Germany)
Lens Angle: 31 degrees

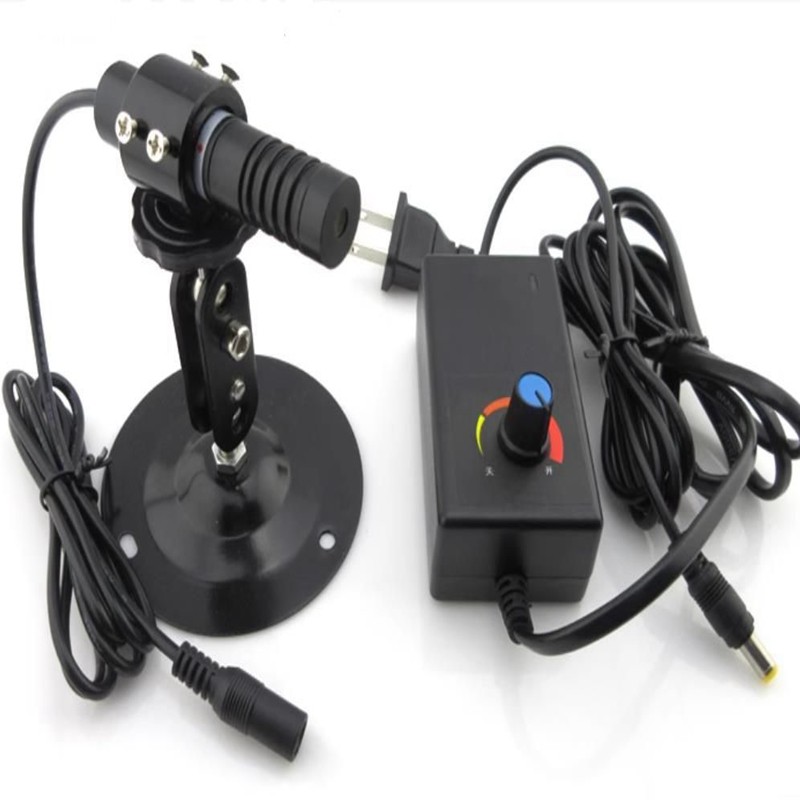

Accessories: 1-3V adjustable power supply + universal support
Available Models
Red 3 Parallel Line Laser
Model:HW6503PXX100-16GD
Specifications:
-
Wavelength: 650nm
-
Power: 100mW
-
Color: Red
Green 3 Parallel Line Laser
Model:HW5203PXX50-16GD
Specifications:
-
Wavelength: 520nm
-
Power: 50mW
-
Color: Green
Blue 3 Parallel Line Laser
Model:HW4503PXX100-16GD
Specifications:
-
Wavelength: 450nm
-
Power: 100mW
-
Color: Blue
Optical Performance
Working Distance: 50cm
-
Line length:276mm
-
Total width of 3 lines:56mm
-
Line spacing:28mm
Working Distance: 100cm
-
Line length:552mm
-
Total width of 3 lines:112mm
-
Line spacing:56mm
The laser lines remain thin, uniform and highly collimated for precise positioning applications.
Product customization Size:
Conventional diameter 9*23mm, 10*30mm, 12*40mm, 16*70mm,
22*110mm, 26* 110mm, 40*110mm, other can be customized
Power: 0.5-500mw 1W 2W Other customizable
wave length: 450nm520nm532nm635nm650nm670nm685nm780nm
405 nm 808nm830nm 850nm 905nm980nm Blue violet blue green red Near infrared
Advantages
High Optical Stability
Imported laser diode and precision optics provide:
-
Stable output
-
High consistency
-
Long lifetime operation
Industrial Grade Housing
Aviation aluminum housing provides:
-
Efficient heat dissipation
-
Shock resistance
-
Drop resistance
-
Anti-static protection
Flexible Adjustment
The module supports customization of:
-
Line width
-
Line spacing
-
Working distance
-
Projection size
-
Optical pattern
Applications
Industrial Alignment
Used for:
-
Equipment installation
-
Mechanical positioning
-
Assembly alignment
Machine Vision Systems
Suitable for:
-
Object detection
-
Camera calibration
-
Optical measurement
Manufacturing Inspection
Applications:
-
Production line positioning
-
Quality inspection
-
Precision measurement
Customization Options
Housing Sizes
Available:
-
9×23mm
-
10×30mm
-
12×40mm
-
16×70mm
-
22×110mm
-
26×110mm
-
40×110mm
Power Options
-
0.5mW
-
5mW
-
50mW
-
100mW
-
500mW
-
1W
-
2W
