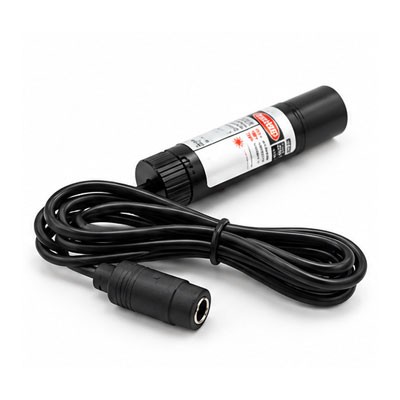

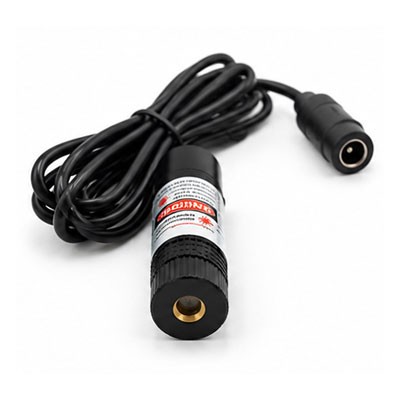

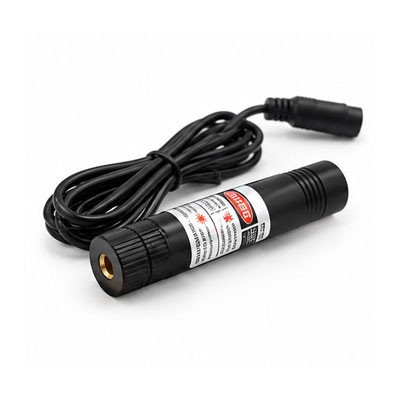

650nm Square Pattern Laser Module
The650nm Square Laser Moduleis a specialized structured light laser source designed to generate a clear square-shaped laser pattern for optical positioning, alignment, inspection and measurement applications.
Featuring precision optical shaping technology, this laser module produces a stable square projection pattern with customizable dimensions, wavelength and output power.
The compact cylindrical housing supports flexible integration into industrial equipment, machine vision systems and optical instruments.
Photex Laser provides customized laser solutions including special beam shapes, housing dimensions, wavelength and power configurations.
Key Features
-
Square Pattern Laser Projection
-
Special Optical Spot Design
-
650nm Visible Red Laser Output
-
Custom Structured Light Patterns Available
-
High Stability Laser Projection
-
Compact Cylindrical Housing
-
Multiple Wavelength Options
-
Wide Power Range Customization
-
OEM / ODM Support
Technical Specifications
Wavelength: 650nm
Size: D16*70mm
Voltage: DC3-5V
Spot size: four square box 1 meter :200*135mm(length and width)
Product customization:
Size: Conventional diameter 9*23mm, 10*30mm, 12*40mm, 16*70mm,
22*110mm, 26* 110mm, 40*110mm, other can be customized
Power: 0.5-500mw 1W 2W Other customizable
wave length: 450nm520nm532nm635nm650nm670nm685nm780nm 405 nm
808nm830nm 850nm 905nm980nm
Optical Performance
The module generates a special square-shaped laser pattern for visual positioning and optical detection.
Typical performance:
-
Square laser projection
-
Uniform pattern output
-
Custom pattern size
-
Adjustable working distance
-
Stable optical alignment
Example:
At1 meter working distance:
Square pattern size:
200mm × 135mm
Available Housing Sizes
Standard configurations:
|
Diameter
|
Length
|
|
9mm
|
Customized
|
|
10mm
|
30mm
|
|
12mm
|
40mm
|
|
16mm
|
70mm
|
|
22mm
|
110mm
|
|
26mm
|
110mm
|
|
40mm
|
110mm
|
Custom dimensions available.
Available Wavelength Options
Photex Laser supports multiple wavelength customization:
Visible Laser
-
450nm Blue
-
520nm Green
-
532nm Green
-
635nm Red
-
650nm Red
-
670nm Red
-
685nm Red
Infrared Laser
-
780nm
-
808nm
-
830nm
-
850nm
-
905nm
-
980nm
Applications
Machine Vision & Inspection
Used for:
-
Pattern projection
-
Optical inspection
-
Camera calibration
-
Vision positioning
Industrial Alignment
Suitable for:
-
Equipment positioning
-
Assembly guidance
-
Precision alignment
Optical Measurement
Applications:
-
Measurement systems
-
Structured light detection
-
Calibration equipment
Automation Systems
Used in:
-
Industrial robots
-
Production lines
-
Smart manufacturing equipment
Customization Options
Photex Laser provides:
Optical Customization
-
Square pattern
-
Cross pattern
-
Line pattern
-
Grid pattern
-
Special beam shape
Mechanical Customization
-
Diameter
-
Length
-
Housing material
-
Cable configuration
Laser Parameters
-
Wavelength
-
Output power
-
Working distance
-
Spot size
