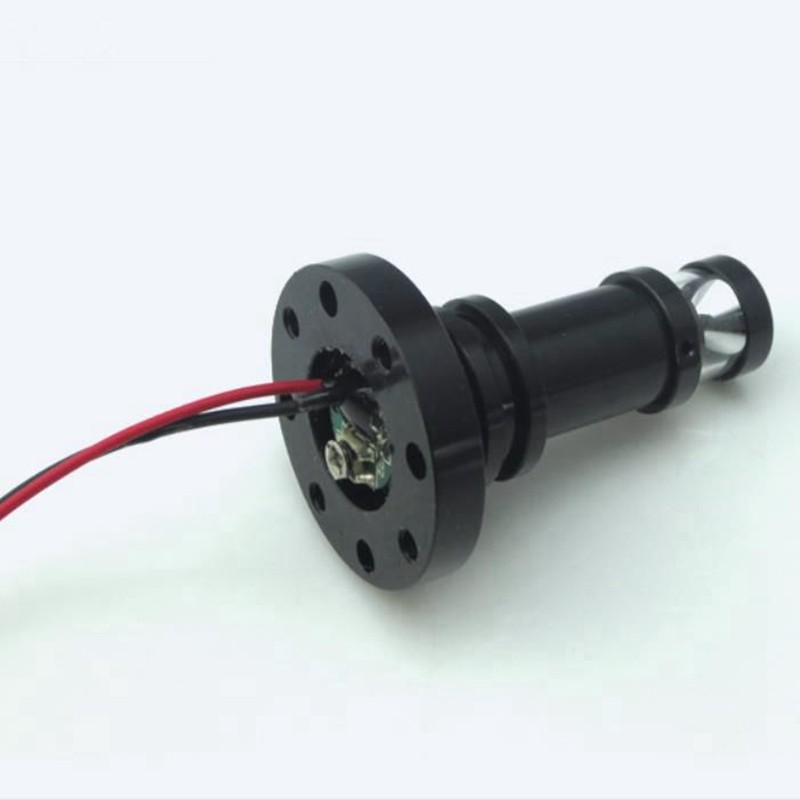

The635nm 120mW 360° Full Angle Line Laser Moduleis a compact semiconductor
laser designed for precision leveling, industrial positioning and optical alignment.

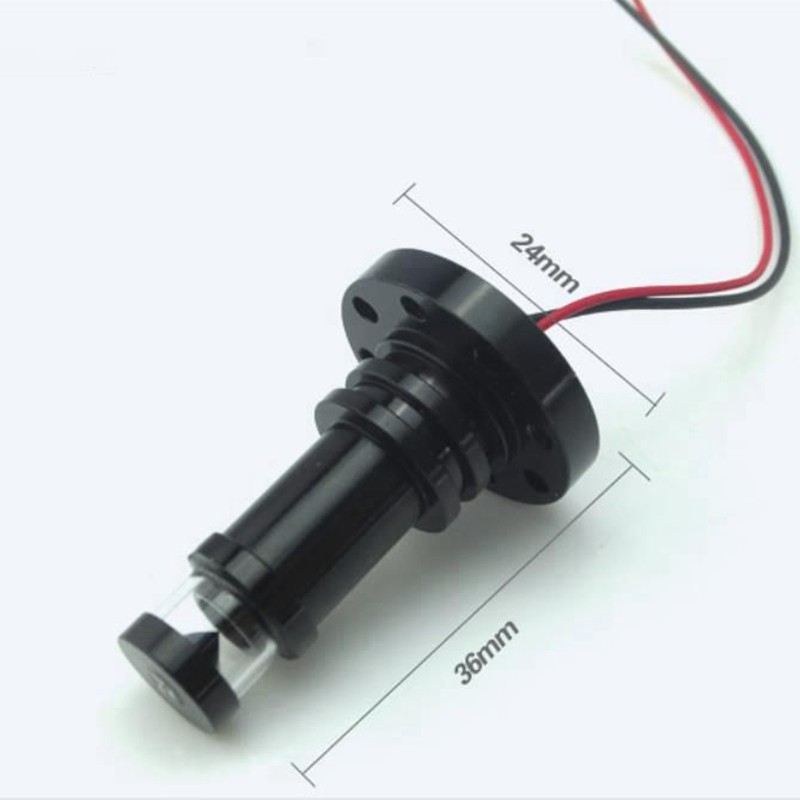

Featuring aØ24×36mm housing, the module produces a complete 360° red laser
line for construction laser levels, measuring instruments and industrial equipment.
Photex Laserprovides OEM / ODM customization for wavelength, power, line width, voltage and mechanical dimensions.
635nm visible red laser output
120mW optical power
360° full-circle laser line projection
Compact Ø24×36mm design
Clear red laser reference line
Stable optical performance
Shock-resistant structure
DC 2.8–5V operation
Wide operating temperature range
OEM / ODM customization available
| Parameter | Specification |
|---|---|
| Product Type | 360° Line Laser Module |
| Model | HW63536L120-15BC |
| Wavelength | 635nm |
| Output Power | 120mW |
| Laser Color | Red |
| Projection Angle | 360° |
| Beam Pattern | Full Circle Line |
| Dimensions | Ø24×36mm |
| Operating Voltage | DC 2.8–5V |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Line Width | Custom Available |
| OEM / ODM | Supported |
The module uses specialized optical lens technology to generate a continuous 360° red laser line.
Advantages:
Full-circle laser coverage
Clear positioning reference
Compact optical structure
Suitable for multi-directional alignment
Easy integration into laser leveling equipment
Construction Leveling:Wall, floor and ceiling alignment
Interior Decoration:Tile and furniture positioning
Industrial Positioning:Machine and equipment alignment
Measuring Instruments:Laser levels and optical tools
Scientific Research:Optical experiments and laboratory equipment
Photex Laser supports customized laser solutions:
Wavelength: 635nm / 520nm (Optional)
Output power
Working voltage
Laser line width
Working distance
Cable length
Housing dimensions
Connector and mounting options
Professional laser module solutions
High-quality optical components
Compact and reliable designs
Flexible OEM / ODM customization
Technical specification support
Factory-direct supply
Photex Laser specializes in customized laser modules for industrial positioning, construction leveling and optical equipment applications.
Q1: What is the projection angle?
A: The module generates a complete 360° laser line.
Q2: What is the operating voltage?
A: DC 2.8–5V.
Q3: Can the wavelength and power be customized?
A: Yes. Photex Laser supports customized wavelengths, output power and optical configurations.
Q4: What are the main applications?
A: Construction leveling, industrial alignment, measuring instruments and optical equipment.
The 120mW laser output presents a serious eye hazard.
Appropriate laser safety controls are required during installation and operation.
Contact Photex Laser for product specifications, OEM customization and bulk quotations.
