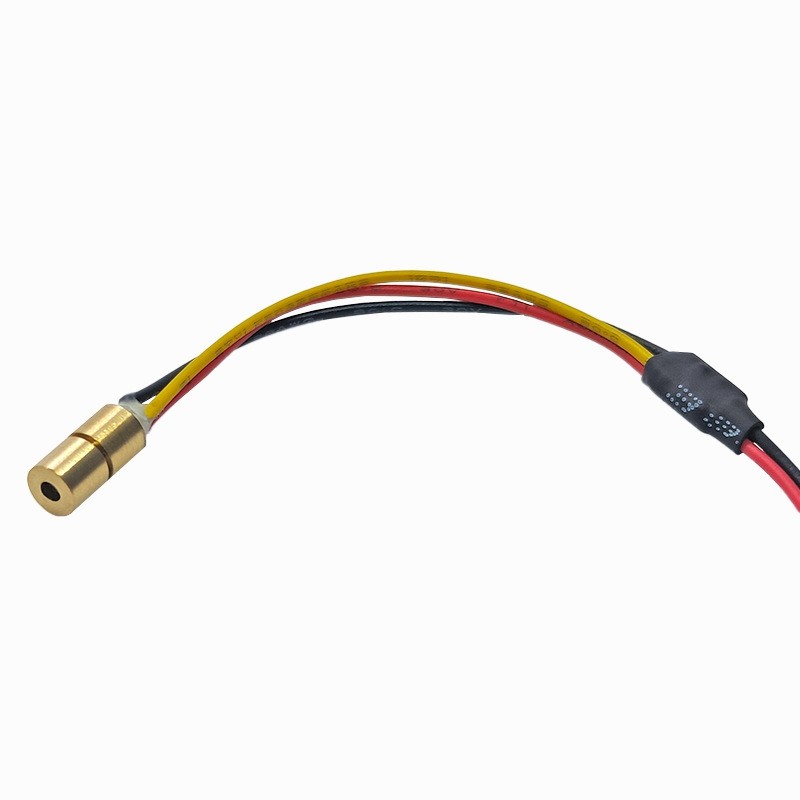

The635nm 1mW Red Laser Moduleis an ultra-compact visible
red laser source designed for positioning, alignment and integration into compact optical and electronic equipment.
With a miniatureΦ4×8mm housing, this laser module is designed for applications where installation space is limited.
The standard configuration provides635nm red laser output at 1mW,
with a dot or elliptical beam. The focus can be supplied as
eitheradjustable focus or fixed focus, with adjustable focus as the default configuration.
The module uses anAPC circuit,
while TTL modulation can be customized for applications requiring electronic laser control.

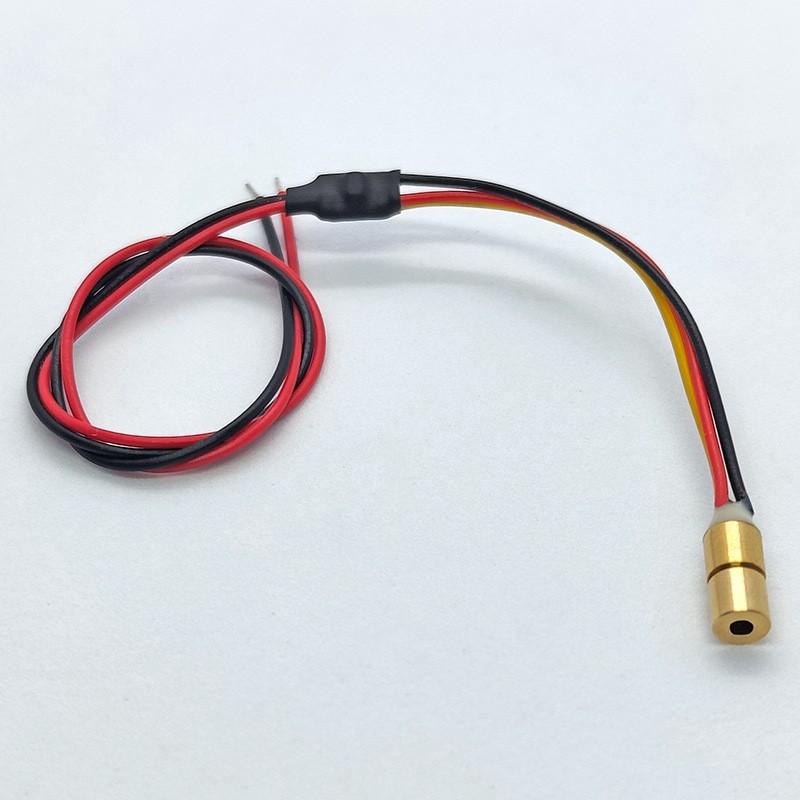

TheΦ4×8mm mini laser moduleis designed for compact
optical systems and equipment with limited installation space.
Its small form factor makes it suitable for applications
where a conventional larger laser module cannot be easily integrated.
The module provides635nm visible red laser outputwith a standard power of1mW.
The red laser dot provides a clear visual reference for positioning and alignment applications.
The standard beam pattern isdot or elliptical.
The focus can be optimized according to the customer's required working distance.
The module supports:
Adjustable focus is supplied by default, unless a fixed-focus configuration is requested.
The standard module uses anAPC circuitfor laser output control.
TTL modulation can be customizedaccording to customer requirements.
| Parameter | Specification |
|---|---|
| Laser Type | Red Dot Laser Module |
| Wavelength | 635nm |
| Output Power | 1mW |

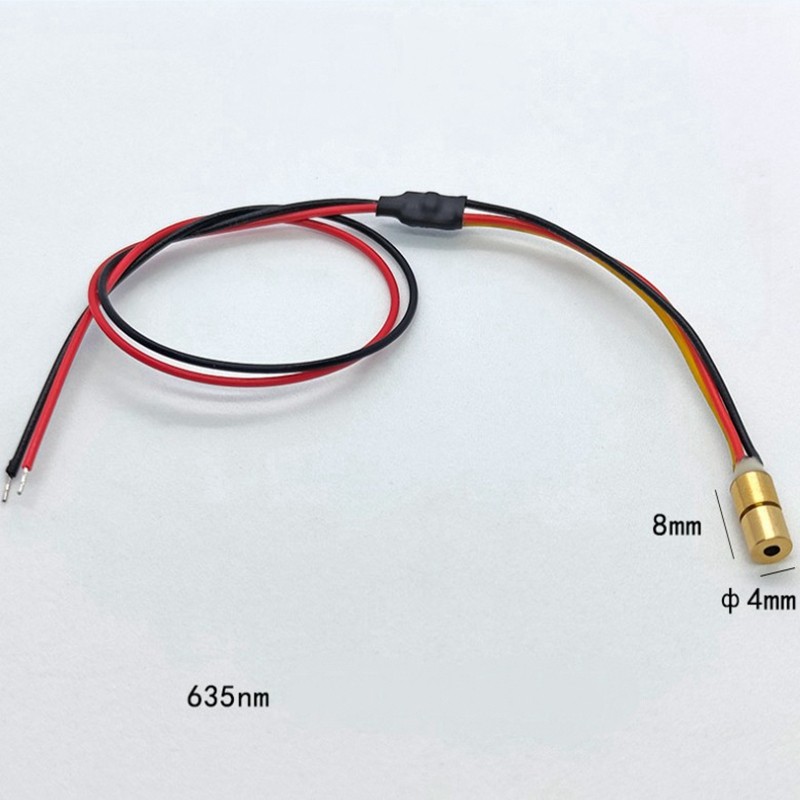

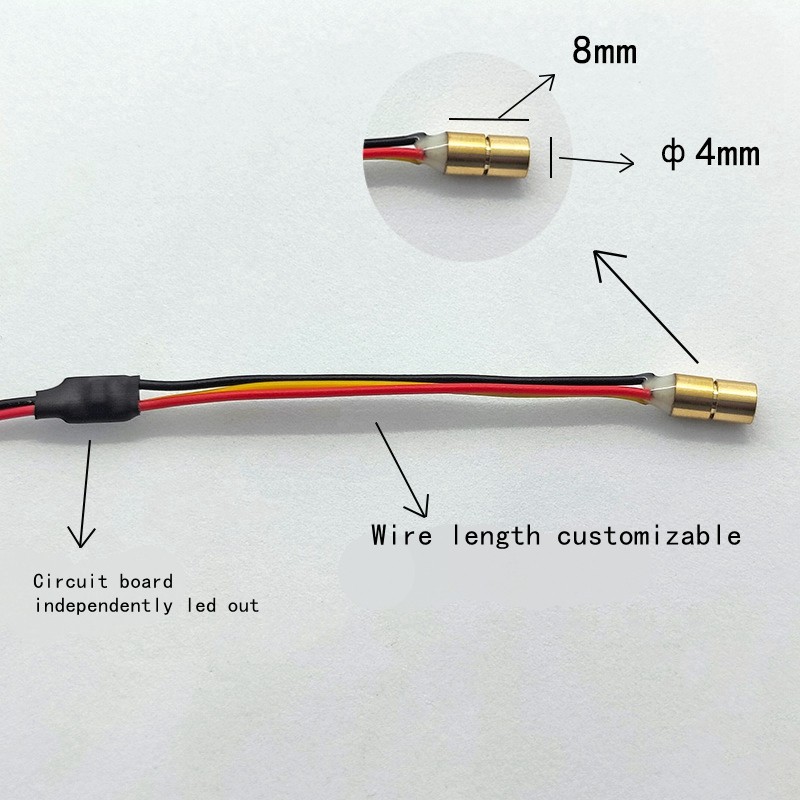

| Size | Φ4×8mm |
| Beam Shape | Dot / Elliptical |
| Focus Mode | Adjustable / Fixed |
| Default Focus | Adjustable |
| Circuit | APC |
| TTL | Customizable |
| Operating Voltage | 1.5–3VDC |
| Operating Current | <30mA |
| Working Range | <50m Indoor* |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |
| Custom Power | Available |
| OEM/ODM | Available |
* Actual working range may vary depending on ambient light,
optical conditions and application requirements.
The small4×8mm form factormakes this 635nm laser module particularly suitable for compact equipment.
It can be integrated into systems requiring a small visible red laser source for:
We support customized635nm red laser modulesfor OEM and ODM applications.
Customization can include:
Customers can provide drawings or technical requirements for engineering evaluation.
OnlyΦ4×8mm, making it suitable for compact equipment.
635nm provides a visible red laser beam for positioning and alignment.
Adjustable or fixed focus can be selected according to the application.
Operates from1.5–3VDC, making it suitable for compact electronic systems.
APC is standard, with TTL customization available.
Wavelength, power, focus, housing and electrical specifications can be customized.
Designed for continuous operation with a service life ofmore than 10,000 hoursunder specified conditions.
The standard wavelength is635nm.
The standard output power is1mW. Other power levels can be customized.
The standard size isΦ4×8mm.
Yes.635nm is a visible red laser wavelength.
Yes. Adjustable focus and fixed focus are available.Adjustable focus is the default configuration.
The operating voltage is1.5–3VDC.
The standard circuit is APC.TTL control can be customized.
Yes. Custom output power is available according to application requirements.
Yes. We provideOEM/ODM laser module customization for equipment manufacturers and system integrators.
