Photex Laseroffers compact8mm Powell Lens Laser Modulesfor 3D scanning, machine vision,
industrial alignment and optical measurement.
Available in658nm red, 520nm green and 450nm blue, these modules deliver uniform laser lines,
adjustable line width and stable performance. OEM/ODM customization is supported.
Uniform Laser Line:Imported Powell lens optics
Adjustable Line Width:Easy external adjustment
Compact Design:Ø8 × 32mm aluminum housing
RGB Options:658nm / 520nm / 450nm
Custom Fan Angle:5°–120°
Stable Performance:Efficient heat dissipation
OEM/ODM:Custom power, optics and dimensions
| Parameter | Specification |
|---|---|
| Brand | Photex Laser |
| Wavelength | 658nm / 520nm / 450nm |
| Output Power | Red 100mW / Green 50mW / Blue 100mW |
| Size | Ø8 × 32mm |
| Voltage | DC 2.8–5.2V |
| Current | Red ≤150mA / Green ≤400mA / Blue ≤200mA |
| Lens | Imported Powell Lens |
| Fan Angle | 5°–120° |
| Line Width | Adjustable |
| Housing | Aluminum Alloy |
| Customization | OEM / ODM Available |
658nm Red Laser – 100mW
Models: ZLM658AB100-GD832 / GD832-WLD
Indoor Range: Up to 12m
Semi-Outdoor Range: Up to 6m
520nm Green Laser – 50mW
Models: ZLM520AB50-GD832 / GD832-WLD
Indoor Range: Up to 25m
Semi-Outdoor Range: Up to 10m
Direct Sunlight Range: Up to 5m
450nm Blue Laser – 100mW
Models: ZLM450AB100-GD832 / GD832-WLD

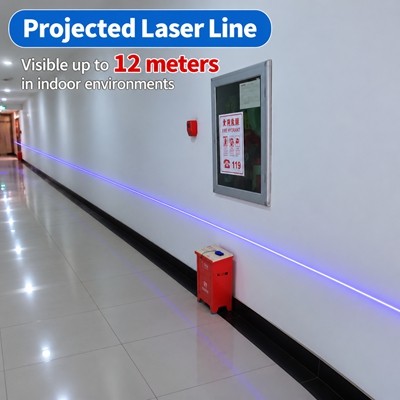

Indoor Range: Up to 12m
Semi-Outdoor Range: Up to 6m
WLD versions minimize bright spots at both ends of the laser line. Working distances vary with lighting conditions.
3D Scanning:Surface profiling and measurement
Machine Vision:Optical inspection and detection
Industrial Alignment:Precision positioning
Automation:Production line guidance
Laser Triangulation:Contour and dimensional measurement
Photex Laser supports:
Custom wavelengths and output powers
Adjustable line width and brightness
Fan angles from 5° to 120°
Custom housing sizes and voltages
Cable, connector and mounting options
Uniform Powell lens laser technology
Compact and stable industrial design
Red, green and blue laser options
Flexible OEM/ODM manufacturing
Technical support and custom solutions
Q: Is the laser line width adjustable?
Yes, external adjustment is available.
Q: Can you customize the laser module?
Yes, wavelength, power, dimensions and optics can be customized.
Q: Is it suitable for 3D scanning?
Yes, it is designed for 3D scanning, machine vision and industrial measurement applications.
