The 940nm 50mW Infrared Dot Laser Moduleis a compact near-infrared
laser source designed for optical positioning, alignment, sensing and equipment integration.

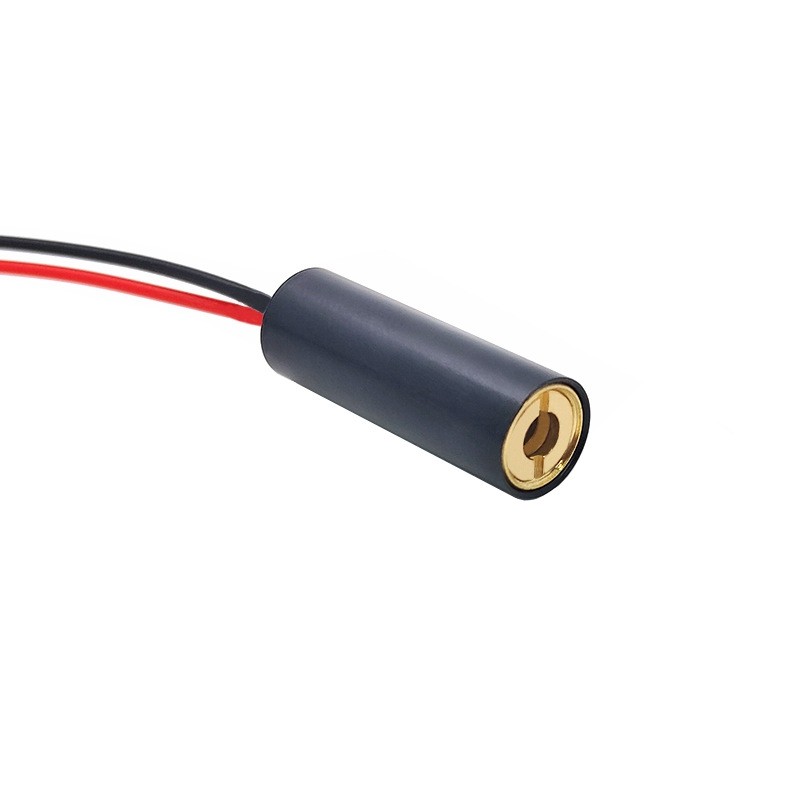

Featuring aΦ9×26mm full metal housing, black insulated black
oxide surface treatment and flexible focus options,
this module provides a compact solution
for applications requiring an invisible infrared laser beam.
The standard wavelength is940nm ±10nm,
with an output power of less than 50mW.
Custom wavelengths and output powers are available for OEM and ODM projects.
The module operates at940nm ±10nm, providing an invisible
near-infrared laser source for applications where visible laser light is not required.

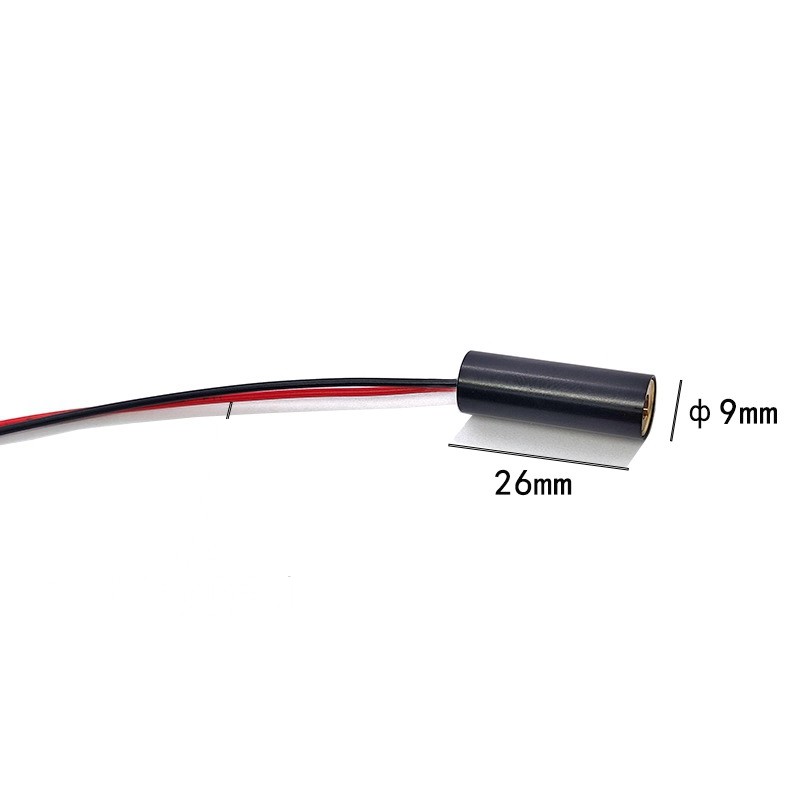

The compact cylindrical9×26mm metal housingis suitable
for integration into space-limited optical instruments and industrial equipment.
The full metal housing provides a robust structure for equipment integration.
The standard finish isblack insulated black oxide treatment.

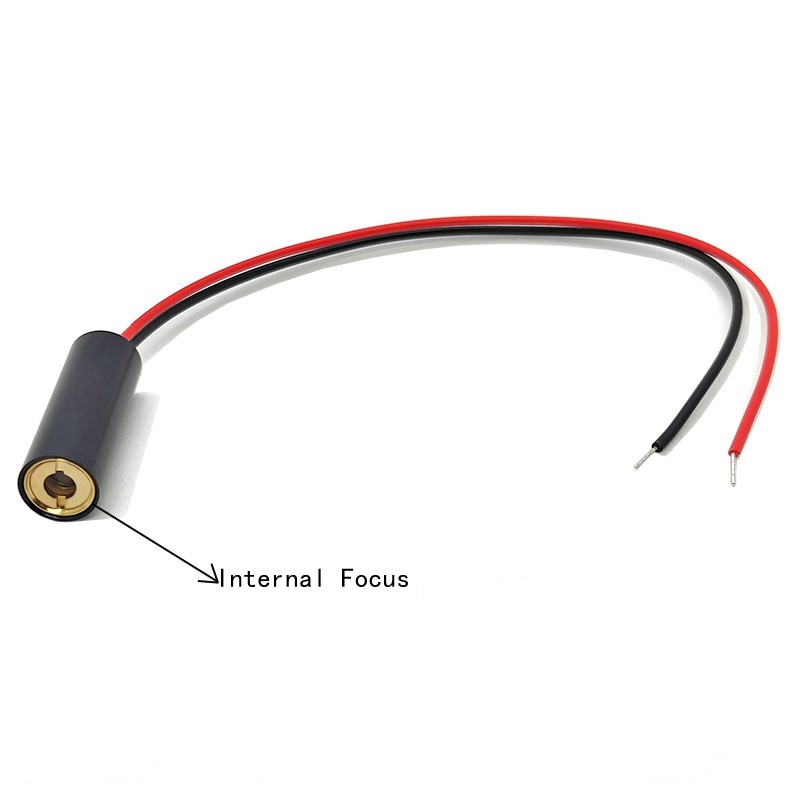

The laser module can be supplied with eitheradjustable
focus or fixed focus, depending on the required optical configuration.
The standard beam pattern isdot or elliptical, suitable for optical positioning,
alignment and other applications requiring a compact IR laser beam.
The standard circuit uses anACC line.
TTL modulation can be customized according to customer requirements.
| Item | Specification |
|---|---|
| Wavelength | 940nm ±10nm |
| Output Power | <50mW |
| Dimension | Φ9×26mm |
| Housing Material | Full Metal |
| Surface Finish | Black Insulated Black Oxide |
| Beam Shape | Dot / Elliptical |
| Focus | Adjustable / Fixed |
| Circuit | ACC |
| TTL | Customizable |
| Voltage | 2.8–5.2VDC |
| Current | <150mA |
| Range | <600m Indoor* |
| Working Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |
| Tail Wire | 28# Red/Black |
| Wire Length | Approx. 15cm |
| Cable Option | 1m DC Female Plug Cable** |
| Safety Class | Class IIIB |
| Custom Wavelength | 635 / 780 / 850 / 980nm |
| Custom Power | Available |
| OEM/ODM | Available |
* Actual range varies according to ambient light and application conditions.
** 1m DC female plug cable is included when purchased with the power adapter.
The standard configuration is940nm 50mW,
while customized specifications can be supplied for different optical systems.
Custom output power is also available based on the customer's application requirements.
As a professional laser module manufacturer,
we support customized solutions for OEM and ODM projects.
Customization options include:
Customers can provide drawings, specifications or application requirements for engineering review.
The 940nm infrared dot laser module can be integrated into:
TheΦ9×26mmhousing is suitable for compact optical equipment and limited installation spaces.
Choose between adjustable focus and fixed focus according to your application.
Wavelength, power, housing, cable, TTL and other specifications can be customized.
We support samples, customized development and volume production.
Designed for continuous operation with
a service life ofmore than 10,000 hoursunder specified operating conditions.
The standard wavelength is940nm ±10nm.
940nm is in the near-infrared range and isnot normally visible to the human eye.
The standard specification isless than 50mW. Custom output power is available.
Yes. The module can be supplied withadjustable focus or fixed focus.
Yes. The standard version uses an ACC line, whileTTL control can be customized.
Yes. The standard size isΦ9×26mm, and custom housing dimensions are available.
Available options include635nm, 780nm, 850nm and 980nm, in addition to the standard 940nm.
Yes. We supportOEM/ODM laser module customization,
including wavelength, power, housing, focus, cable and control circuit.
