The650nm 1mW Red Laser Moduleis a compact visible red laser
source designed for positioning, alignment, measurement equipment and optical system integration.

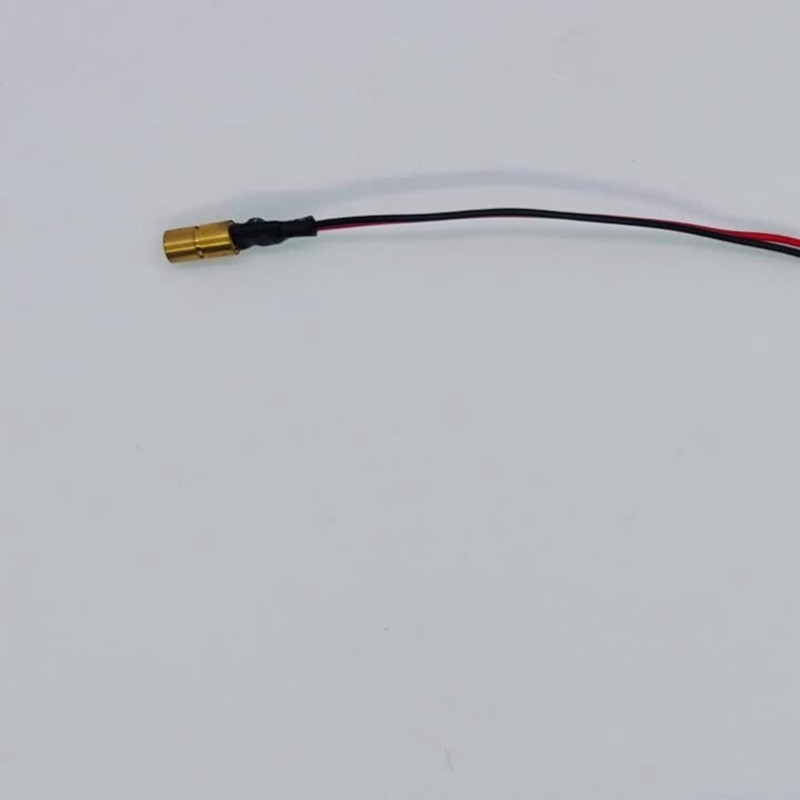

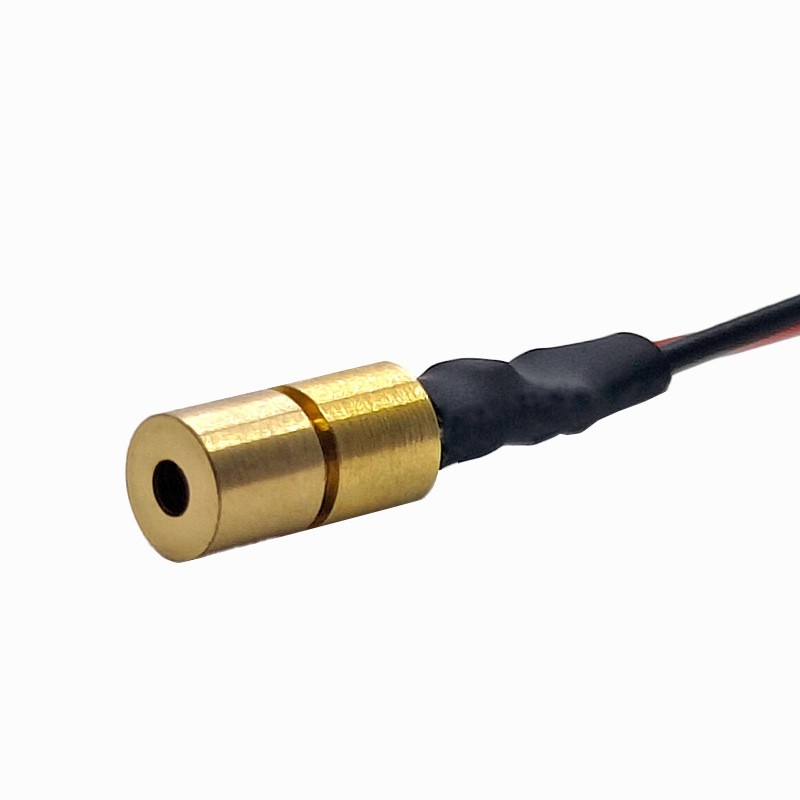

With an ultra-compactΦ4×13.7mm full-metal copper housing,
the module is suitable for applications where installation space is limited.
The standard configuration provides650nm ±10nm red laser output at 1mW,
with an adjustable focus design for optimizing the laser beam at the required working distance.
The module uses anAPC drive circuit,
while TTL modulation can be customized according to application requirements.
The compact4×13.7mm cylindrical housingallows
easy integration into small optical instruments, positioning systems and electronic equipment.
The module provides650nm ±10nm visible red laser output,
producing a clear red dot for positioning and alignment applications.
The standard output power is1mW, with customized power levels available for OEM projects.
The module uses afull-metal copper casingwith a natural brass/copper appearance.
A black housing can also be supplied according to customer requirements.

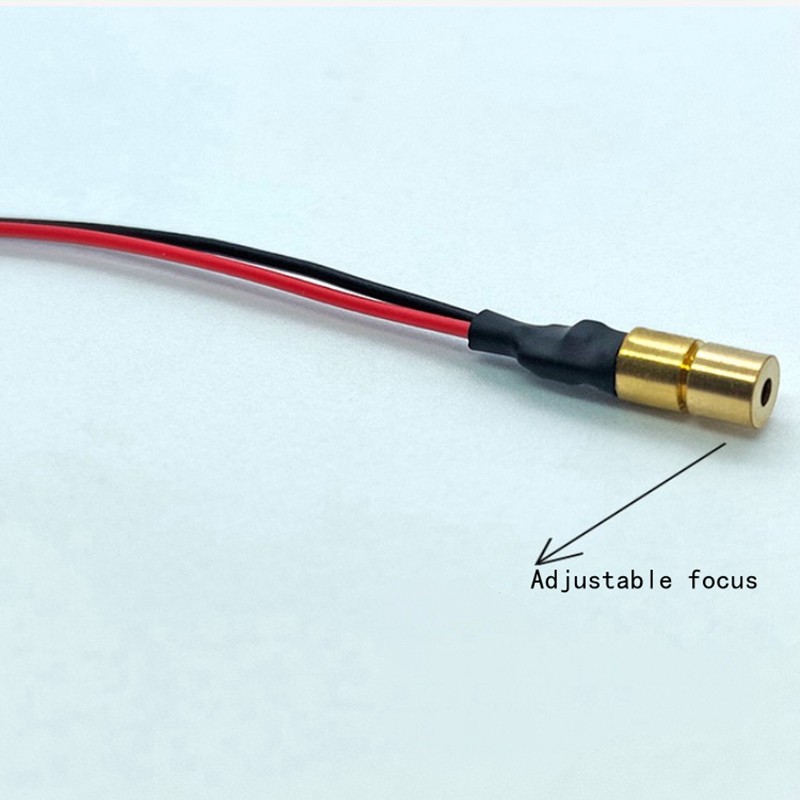

The standard configuration usesadjustable focus,
allowing customers to optimize the beam according to the required working distance.
Fixed-focus versions are also available.
The module is equipped with anAPC circuitfor stable laser output.
TTL control can be customized when required.
| Parameter | Specification |
|---|---|
| Laser Type | Red Dot Laser Module |
| Wavelength | 650nm ±10nm |
| Output Power | 1mW |
| Size | Φ4×13.7mm |
| Material | Copper |
| Housing | Full Metal |
| Standard Color | Brass / Natural Color |
| Optional Color | Black |
| Beam Shape | Dot / Elliptical |
| Focus | Adjustable / Fixed |
| Default Focus | Adjustable |
| Circuit | APC |
| TTL | Customizable |
| Operating Voltage | 2.8–5.2VDC |
| Operating Current | <30mA |
| Working Range | <50m Indoor* |
| Working Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |
| Tail Wire | 28# Red/Black |
| Tail Wire Length | Approx. 15cm |
| Cable Option | 1m DC Female Plug Cable** |
| Safety Class | Class II |
| Custom Wavelengths | 635 / 780 / 850 / 980nm |
| Custom Power | Available |
| OEM/ODM | Available |
* Actual working range may vary depending on ambient light and application conditions.
** 1m DC female plug cable is supplied when purchased with the power adapter.
The standard wavelength is650nm,
while other wavelengths can be customized for different optical applications.
Available options include:
This allows the same compact mechanical platform to be adapted for different OEM optical systems.
The standard output is1mW.
Custom output power can be discussed according to:
For OEM projects, we can evaluate the required wavelength and output power before production.
We provideOEM and ODM red laser module solutionsfor equipment manufacturers and system integrators.
Customization options include:
Customers can send drawings or technical requirements for engineering evaluation.
The compact size also makes the module suitable for integration into:
At only Φ4×13.7mm, the module is suitable for compact equipment where installation space is limited.
The copper housing provides a robust mechanical structure for OEM equipment integration.
Adjustable focus allows the beam to be optimized for the required application distance.
Wavelength, power, housing, focus, TTL, cable and other specifications can be customized.
We support prototype samples, engineering customization and volume production.
The module is designed for continuous operation
with a service life ofmore than 10,000 hoursunder specified conditions.
The standard wavelength is650nm ±10nm.
The standard output power is1mW. Custom power levels are available.
The standard size isΦ4×13.7mm.
Yes. It uses afull-metal copper housingwith a natural brass/copper color.
Yes. Ablack housingcan be customized.
Yes. The standard version usesadjustable focus. Fixed focus is also available.
Yes. The standard circuit isAPC, and TTL modulation can be customized.
Yes. Besides 650nm, we can customize635nm, 780nm, 850nm and 980nm.
Yes. We provideOEM/ODM customizationfor wavelength, power, housing, focus, cable and control circuit.
