Photex Laser offers6mm Mini Laser Moduleswith 405nm violet, 450nm blue, 488nm cyan and 505–520nm green wavelengths.
Featuring external focus adjustment, a compact Ø6 × 10mm copper housing and DC 2.8–5.2V operation,
these modules are designed for precise dot projection, optical alignment and OEM integration.

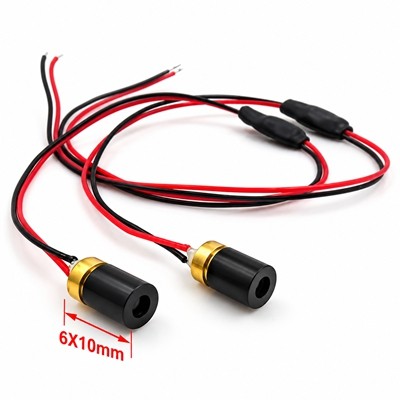

Mini Design:Ø6 × 10mm copper housing.
Multiple Wavelengths:405nm / 450nm / 488nm / 505–520nm.
Adjustable Focus:Customizable laser dot size.
Power Options:1–150mW, wavelength dependent.
Stable Driver:Intelligent IC control.
OEM / ODM:Custom voltage, dimensions and optics.
| Parameter | Specification |
|---|---|
| Wavelength | 405 / 450 / 488 / 505–520nm |
| Output Power | 1–150mW, Model Dependent |
| Laser Pattern | Dot |
| Focus | External Adjustable |
| Operating Voltage | DC 2.8–5.2V* |
| Operating Current | Model Dependent |
| Housing Size | Ø6 × 10mm |
| Driver Board | 7.6 × 18mm |
| Housing Material | Copper |

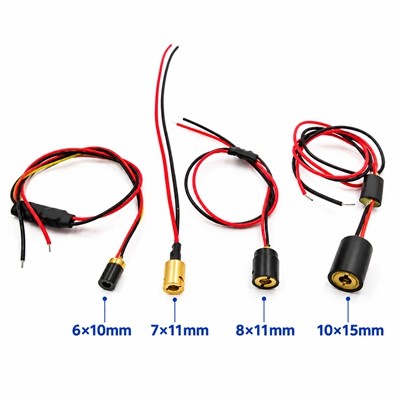

| Optional Sizes | 7×11 / 8×11 / 10×15mm |
| Customization | OEM / ODM Available |
520nm 85mW model requires DC 3.5–5.2V.
| Color | Wavelength | Power Options |
|---|---|---|
| Violet | 405nm | 1–150mW |
| Blue | 450nm | 1–100mW |
| Cyan | 488nm | 1–60mW |
| Green | 505–520nm | 1–85mW |
Power availability varies by wavelength.
Industrial Laser Positioning
Optical Alignment Systems
Miniature Laser Equipment
Optical Testing & Demonstrations
OEM Laser Devices
Wavelength & Output Power
Focus & Laser Spot Size
Housing Size & Operating Voltage
Cable Length & Working Distance
Ultra-Compact Laser Design
Multiple Wavelength Options
Adjustable Dot Projection
Copper Housing for Heat Dissipation
Flexible OEM / ODM Support
Looking for a reliableMini Laser Module Manufacturer?
ContactPhotex Laserfor samples, technical specifications and custom laser solutions.
Send us your required wavelength, power, working distance and quantity for a competitive quotation.
