Photex Laser offers650nm Red and 520nm Green Round Dot Laser Modulesdesigned for laser leveling instruments,
surveying equipment and precision alignment systems.

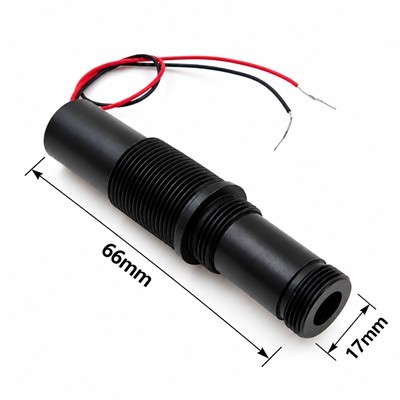

Featuring uniform circular spots, coated glass optics and a compact Ø17 × 66mm aluminum housing,
these modules provide controlled laser dot projection for industrial OEM applications.
Uniform Round Spot:Clear, circular laser projection.
Dual Wavelengths:650nm Red / 520nm Green.
Precision Optics:Coated glass lens assembly.
Compact Design:Ø17 × 66mm aluminum housing.
Stable Driver:Intelligent IC control.
OEM / ODM:Custom wavelength, power and spot size.

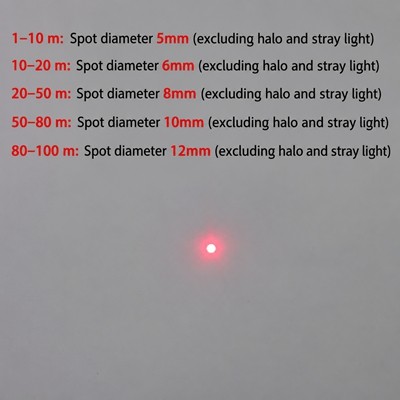

| Working Distance | Spot Diameter |
|---|---|
| 1–10m | 5mm |
| 10–20m | 6mm |
| 20–50m | 8mm |
| 50–80m | 10mm |
| 80–100m | 12mm |
Reference values exclude peripheral halos and stray light. Actual spot size depends on optical configuration and measurement conditions.
Laser Leveling Instruments
Surveying & Measurement Equipment
Industrial Laser Alignment
Precision Positioning Systems
OEM Optical Equipment
Wavelength & Laser Power
Spot Size & Working Distance
Housing Dimensions & Voltage
Cable Length & Optical Configuration
Uniform Circular Beam Design
Precision Coated Glass Optics
Compact Aluminum Housing
Red & Green Laser Options
Flexible OEM / ODM Manufacturing
Looking for a reliableLaser Level Module Manufacturer?
ContactPhotex Laserfor samples, specifications and custom solutions.
Send us your wavelength, spot diameter, working distance and quantity for a competitive quotation.
