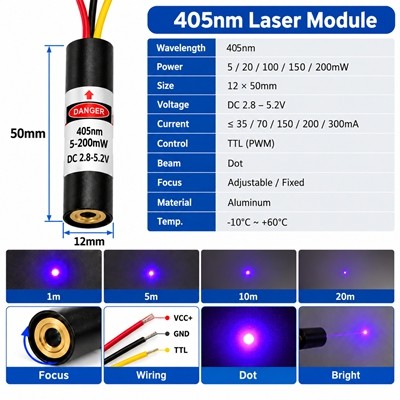

Photex Laser offers high-performance 405nm Violet Dot Laser Modules with output power options
from 5mW to 200mW, designed for industrial positioning, optical detection, laser marking alignment and automated equipment.
Featuring TTL modulation from 1–100kHz, precision optical lenses and a compact
Ø12 × 50mm aluminum housing, these laser modules deliver focused violet laser spots with adjustable beam size.
Available with fixed or adjustable focus, the modules support customized wavelengths,
output powers, operating voltages and optical configurations.
405nm Violet Laser: Focused violet dot projection.
5–200mW Power Options: Five standard models available.
TTL Modulation: 1–100kHz for external signal control.

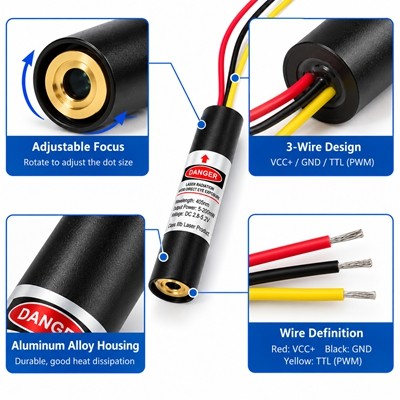

Adjustable Focus: Spot size adjustable from approximately 1mm to several centimeters, depending on working distance.
Wide Voltage Input: DC 2.8–5.2V.

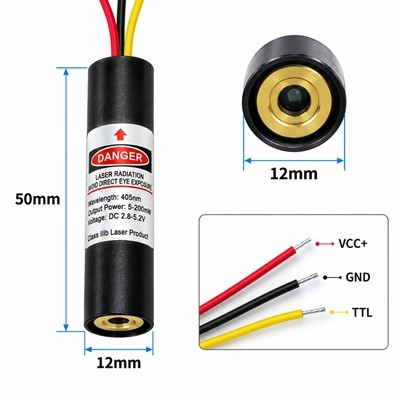

Compact Housing: Ø12 × 50mm aluminum body.
Industrial Design: Designed for heat dissipation and stable operation.
OEM/ODM Support: Custom wavelengths, power, focus and housing options.
|
Model |
Power |
Current |
|---|---|---|
|
M5AD405-1250TC |
5mW |
≤35mA |
|
M20AD405-1250TC |
20mW |
≤70mA |
|
M100AD405-1250TC |
100mW |
≤150mA |
|
M150AD405-1250TC |
150mW |
≤200mA |
|
M200AD405-1250TC |
200mW |
≤300mA |
All models feature a standard Ø12 × 50mm housing and DC 2.8–5.2V input. Customized specifications are available upon request.

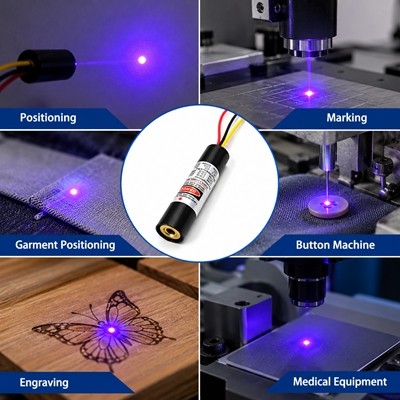

Laser Marking & Engraving
Laser positioning and alignment for marking machines, engraving systems and automated production equipment.
Garment & Button Machines
Dot laser positioning for textile processing, button attaching and garment manufacturing equipment.
Optical Detection & Automation
TTL-controlled laser output for optical testing, machine integration and automated inspection systems.
Precision Industrial Alignment
Visible laser reference points for equipment setup, component positioning and manufacturing processes.
Photex Laser provides flexible laser module customization for industrial equipment manufacturers and system integrators.
Customization Options
Wavelength: 405nm / Other wavelengths upon request
Output Power: 5–200mW
Housing Dimensions: Custom Available
Operating Voltage: Custom Available
TTL Modulation Frequency: Custom Available
Laser Focus: Adjustable / Fixed
Cable Length & Connectors: Custom Available
Spot Size & Working Distance: Upon Request
Send us your technical requirements or drawings for customized laser solutions.
Professional Laser Module Manufacturing
Photex Laser provides laser modules for industrial positioning, optical detection and equipment integration.
Flexible Customization
OEM/ODM solutions for wavelengths, output powers, housing dimensions and optical configurations.
Industrial Applications
Compact laser module designs suitable for integration into automated equipment.
Technical Support
Assistance with laser module selection, optical specifications and custom product development.
Q1: What is TTL modulation in a laser module?
TTL modulation allows external digital signals to control laser ON/OFF switching,
making it suitable for automated equipment and optical detection systems.
Q2: What output powers are available?
Standard 405nm models include 5mW, 20mW, 100mW, 150mW and 200mW.
Q3: Can the laser spot size be adjusted?
Yes. Adjustable-focus and fixed-focus configurations are available.
Q4: Can Photex Laser customize laser modules?
Yes. Custom wavelengths, power levels, housing dimensions, focus and electrical configurations are available upon request.
Q5: Is the module suitable for continuous operation?
The modules are designed for industrial applications.
Continuous operation depends on power level, heat dissipation and operating conditions.
