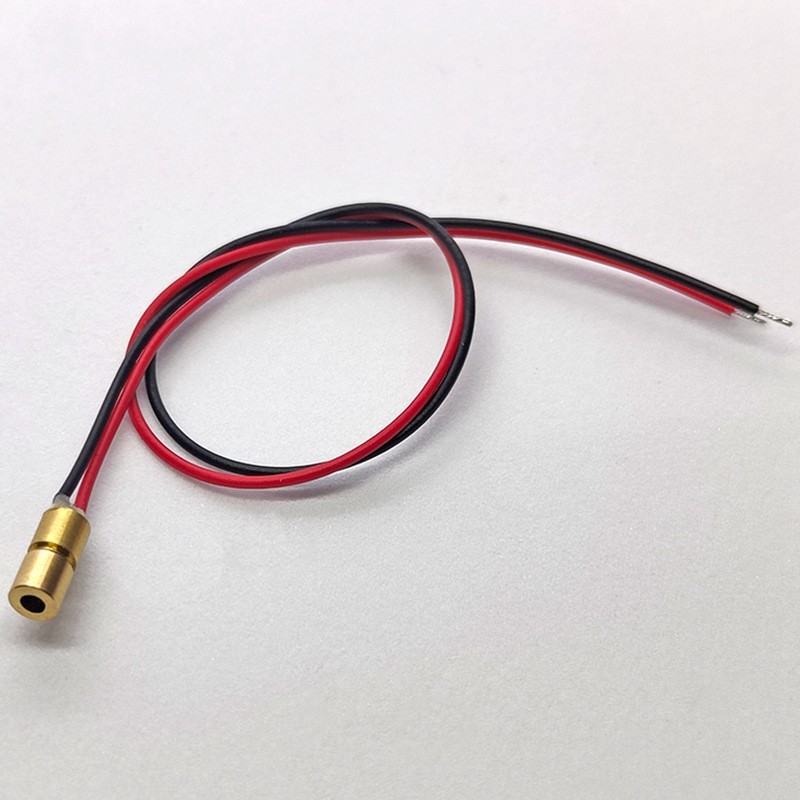

Featuring an ultra-smallØ3.6×9mm aviation aluminum housing, APC control circuit and adjustable or fixed-focus options, this module provides a visible red laser dot with stable output and low current consumption.
The standard configuration operates at650nm ±10nmwith optical output below5mW. Other wavelength and power configurations can be customized according to application requirements.
| Parameter | Specification |
|---|---|
| Product Type | Ultra-Mini Red Dot Laser Module |
| Model | RPS456505D / S456505D |
| Wavelength | 650nm ±10nm |
| Output Power | <5mW |
| Laser Color | Red |
| Beam Pattern | Dot |
| Spot Shape | Elliptical |

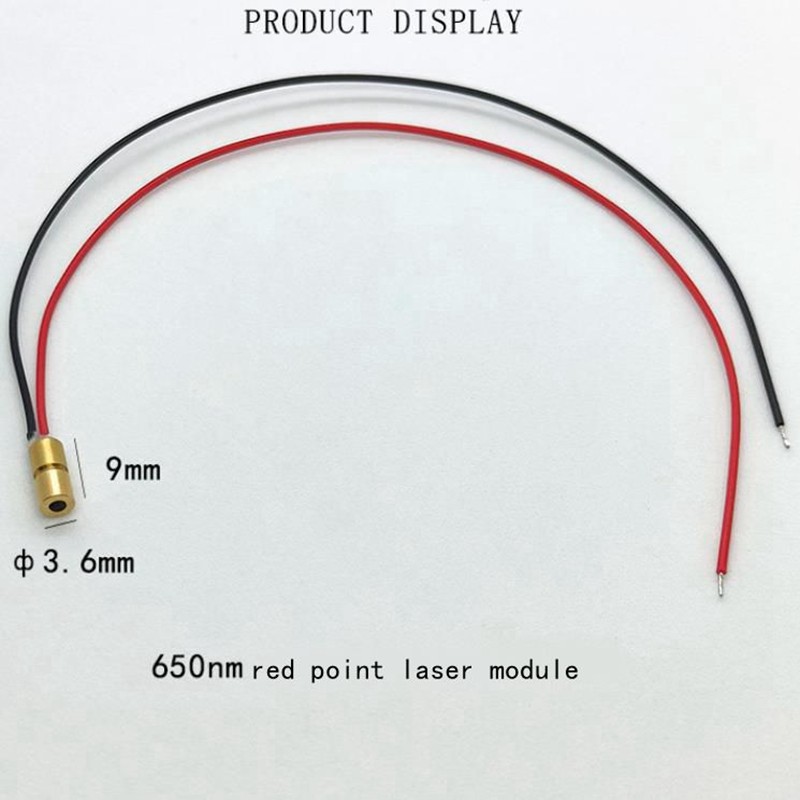

| Standard Size | Ø3.6×9mm |
| Housing Material | Aviation Aluminum |
| Housing Type | All-Metal Shell |
| Surface Finish | Black Insulated Oxidized Finish |
| Installation Method | Insert Type |
| Number of Ports | 1 |
| Working Distance | <100m under suitable indoor conditions |
| Focus Mode | Adjustable Focus / Fixed Focus Optional |
| Standard Focus | Adjustable Focus |
| Circuit Control | APC |
| Operating Voltage | DC 2.8–5.2V |
| Working Current | <40mA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours Continuous Operation |

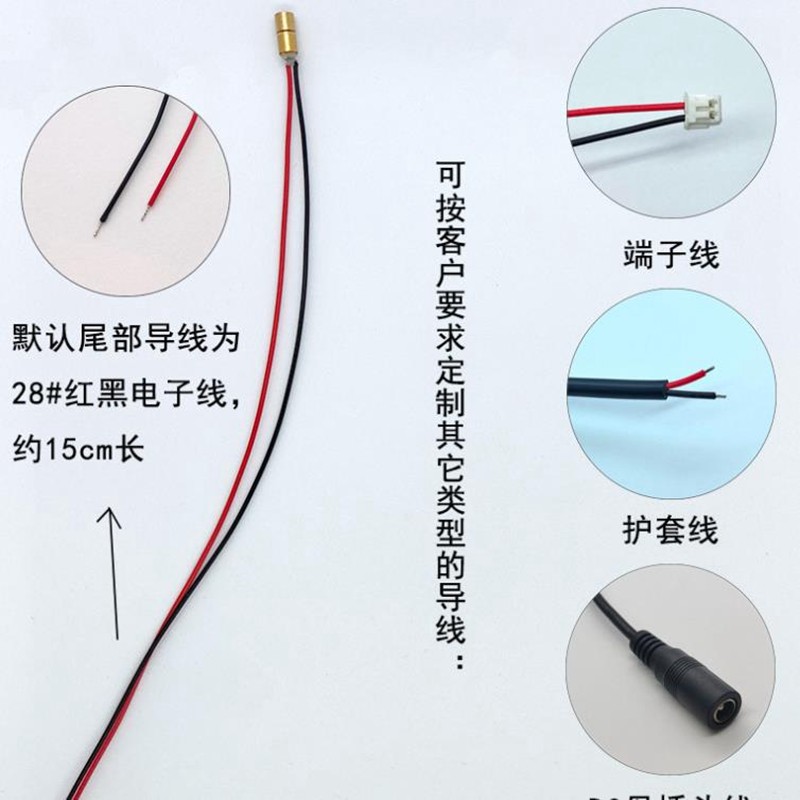

| Tail Wire | 28# Red & Black Wire, Approx. 15cm |
| Optional Cable | 1m DC Female Plug Cable |
| Safety Class | Class IIIA |
| Package Content | 1 × Laser Module |
The main advantage of this model is its miniature mechanical size.
At onlyØ3.6×9mm, it is suitable for compact products where conventional laser modules are too large.
Typical integration scenarios include:
The module generates a visible 650nm red laser dot suitable for calibration, positioning and indication.
Typical optical characteristics include:

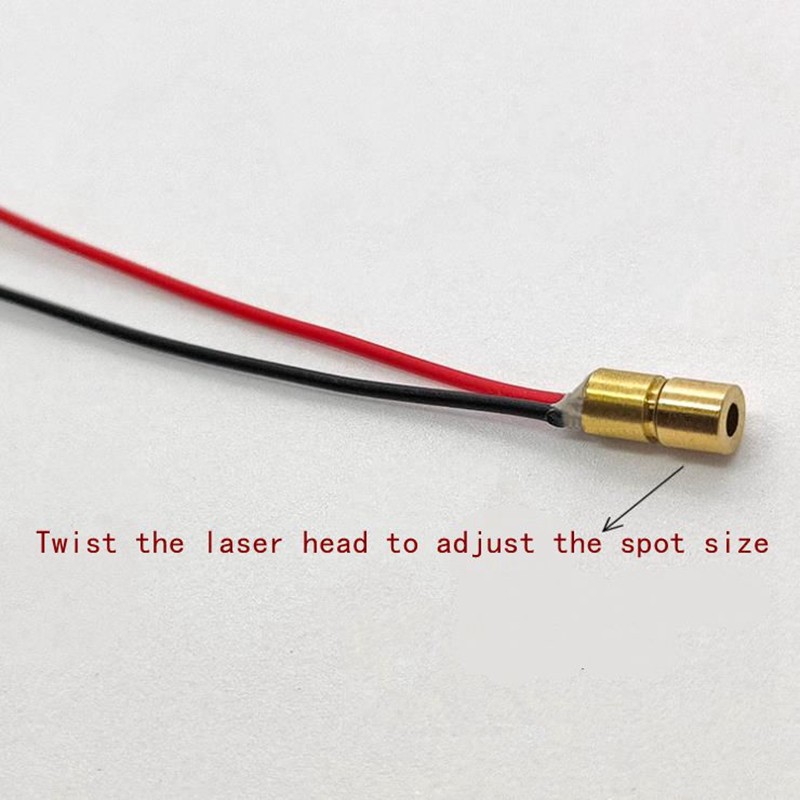

The focus can be adjusted according to the required working distance to obtain the best spot size and clarity.
Actual visibility and working distance depend on ambient light, target reflectivity and focusing conditions.
The integrated APC circuit helps maintain stable optical output during operation.
Electrical specifications:
This low-current configuration is suitable for compact electronic and battery-powered systems.
The standard wavelength is:
Custom wavelength options include:
Other wavelengths can be evaluated according to project requirements.
The Ø3.6×9mm platform can be supplied with multiple output power options:
Laser safety classification may vary depending on the selected output power and final optical configuration.
Standard:
Optional:
Photex Laser provides ultra-miniature 650nm red dot laser modules for calibration, positioning, alignment and compact OEM optical applications.
