The 650nm Line Laser Module with 9-Point Patternis a special-pattern semiconductor laser designed to project a straight laser line combined with nine evenly spaced reference points.
With a13.2° line divergence angle, the module produces a line length of approximately116mm at 0.5m, while the spacing between the nine projected points is approximately14.5mm.
This combined line-and-point pattern is suitable for industrial positioning, alignment, marking, measurement and machine vision applications where multiple reference points are required along a straight line.
PhotexLaser supports OEM/ODM customization for wavelength, output power, line angle, point spacing, working distance, housing size, cable configuration and special optical patterns.
| Parameter | Specification |
|---|---|
| Product Type | Line + 9-Point Pattern Laser Module |
| Model | HW650YZ9D100-16GD-13.2°-QYG001 |
| Laser Type | Semiconductor Laser |
| Optical Path | Internal Optical Path |
| Channel | Single Channel |
| Wavelength | 650nm |
| Wavelength Customization | Available |
| Output Power | 100mW |
| Power Customization | Available |
| Pattern | Straight Line + 9 Points |
| Line Divergence Angle | 13.2° |
| Line Length at 0.5m | Approx. 116mm |
| 9-Point Spacing at 0.5m | Approx. 14.5mm |
| Installation Height | 0–5m |
| Working Voltage | DC 2.8–5.2V |
| Working Current | <500mA |

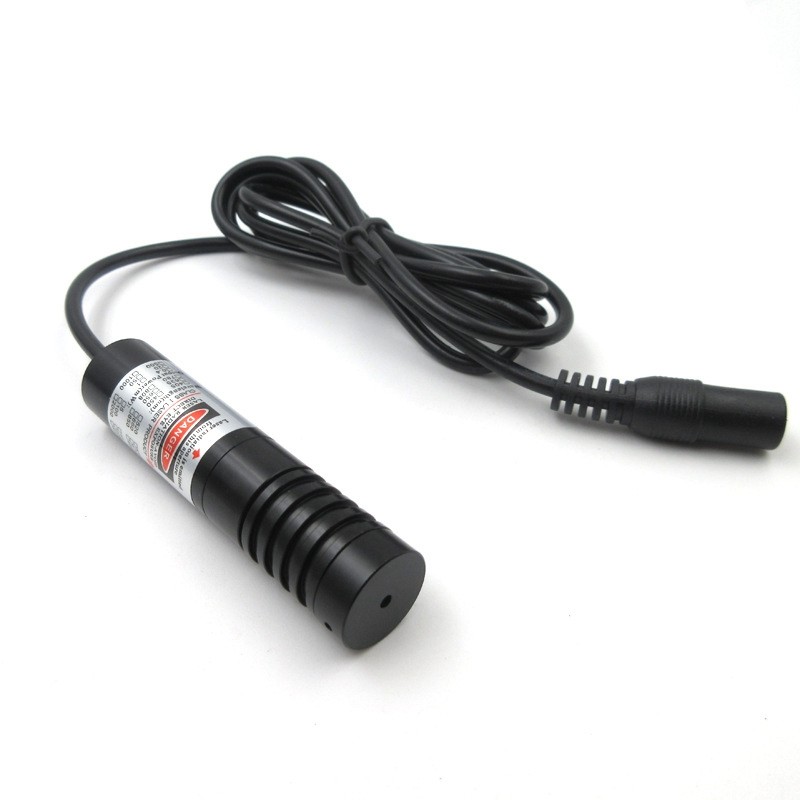

| Standard Size | Ø16×70mm |
| Housing Size | Customizable |
| Optical Lens | Grating Plate |
| Line Width | Adjustable |
| Housing Material | Aviation Aluminum |
| Driver | Intelligent IC Driver |
| Operating Mode | Continuous |
At a working distance of 0.5m:
The projected pattern expands proportionally as the working distance increases.
The module combines a straight laser line with nine reference points, providing multiple positioning references within a single optical pattern.
Main advantages include:
The line and 9-point pattern provides both continuous alignment reference and discrete positioning marks.
The projected line thickness can be adjusted according to working distance, visibility and application requirements.
A high-stability laser diode and intelligent driver board provide reliable performance for extended operation.
The aviation aluminum housing and internal thermal filling provide:
The standard working range is:
DC 2.8–5.2V
Other voltage configurations can be customized.

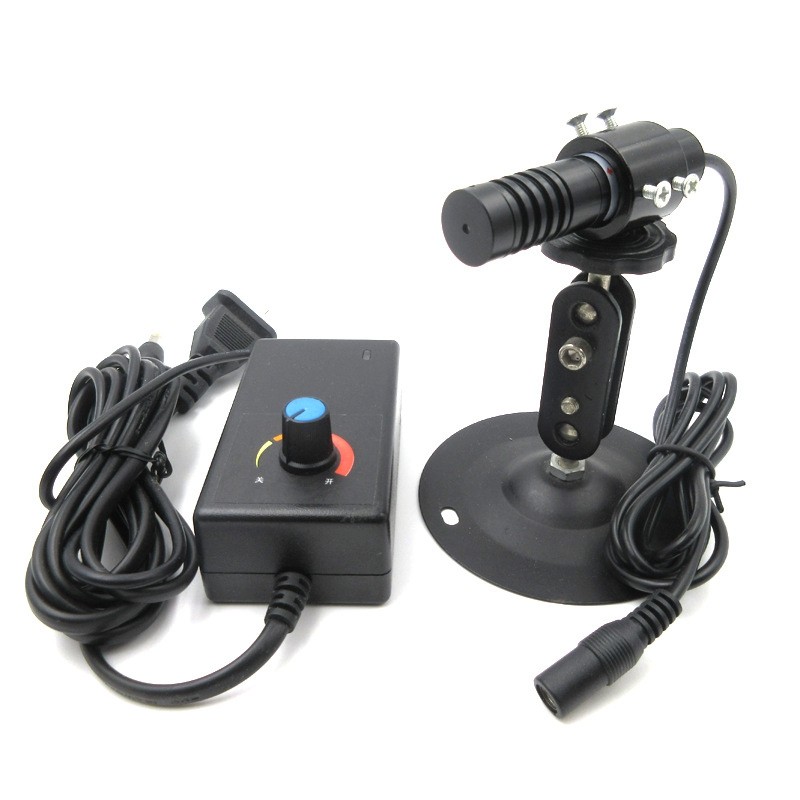

A standard set includes:
Suitable for:
Used for:
Can be integrated into:
Applicable to:
Photex Laser provides customized line-and-point laser modules for industrial positioning, measurement, machine vision and optical alignment applications.
