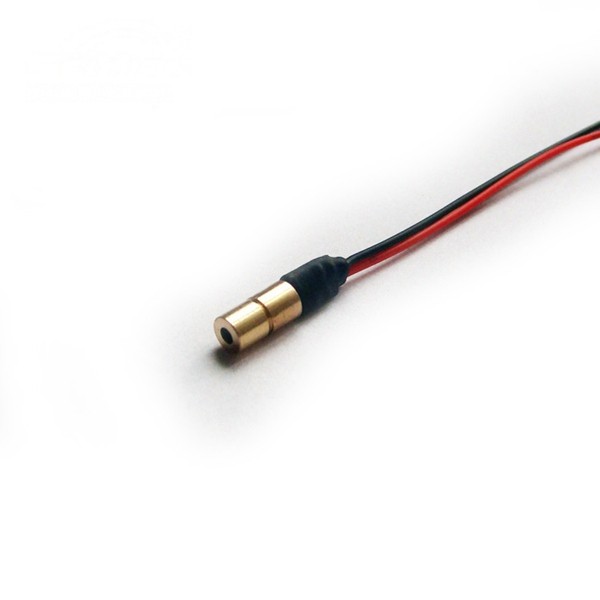

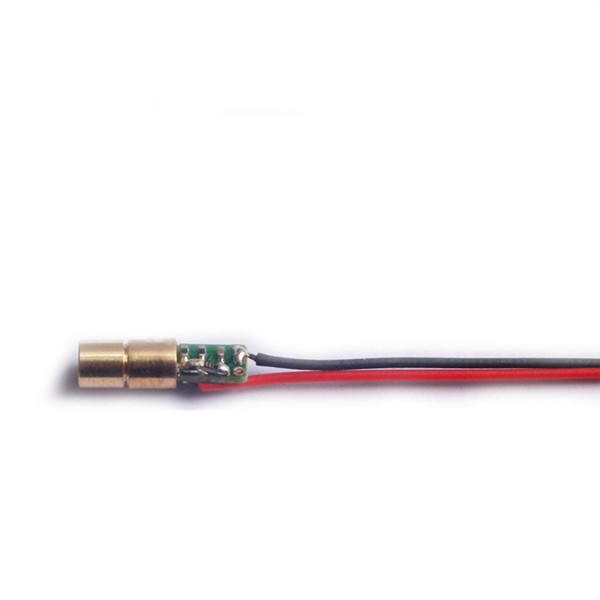

650nm 5mW Red Dot Laser Module, Φ4mm Ultra-Compact Mini Laser
TheS456505D 650nm 5mW Red Dot Laser Module
is a compact red laser source designed for applications requiring
a small installation footprint and clear point laser output.
Featuring anultra-small Φ4mm cylindrical housing,
this mini laser module can be integrated into compact optical instruments,
alignment systems, positioning equipment and customized OEM products.
The module provides a red dot output at650nm,
with a maximum output power of5mWand rated current below35mA.
The module uses a cylindrical housing with only4.0mm diameter,
making it suitable for applications where installation space is limited.
The 650nm wavelength produces a visible red laser point for
optical positioning, alignment and indication applications.
The module provides a maximum output power of5mW,
suitable for compact red laser applications requiring a clearly visible point.
Rated current isless than 35mA, helping simplify integration into compact electronic and optical systems.
The compact cylindrical structure is designed for easy integration into customized optical and electronic assemblies.
The S456505D is designed to comply withRoHS requirements.Technical Specifications
| Parameter | Specification |
|---|---|
| Model | S456505D |
| Laser Type | Red Dot Laser Module |
| Wavelength | 650nm |
| Maximum Output Power | 5mW |
| Rated Power | <5mW |
| Output | Dot / Point |
| Housing | Cylindrical |
| Diameter | Φ4.0mm |
| Rated Current | <35mA |
| Number of Ports | 1 |
| Operating Temperature | -10°C to +50°C |
| Certification | RoHS |
| Accessory | Laser Head |
The4mm diameter housingmakes this red laser module suitable for compact assemblies where conventional laser modules may occupy too much space.
It can be integrated into:
The module can also be evaluated for customized
applications according to the customer's mechanical and electrical requirements.Typical Applications
Used as a visible red reference point for optical alignment and positioning.
Suitable for applications requiring a compact visible laser point.
Can be integrated into selected optical measurement instruments.
The visible red point can serve as an indication or alignment reference.
The Φ4mm compact design is suitable for space-constrained optical assemblies.
Designed for integration into customized products and equipment.
As a professional laser module manufacturer, we support
OEM and ODM customizationaccording to project requirements.
Possible customization options include:
Send us your required wavelength, power, dimensions and quantity for a customized quotation.
Ultra-Compact Design
Only Φ4mm diameter for space-limited applications.
Visible Red Output
650nm red laser provides a visible point for positioning and alignment.
Compact OEM Integration
Suitable for integration into optical and electronic equipment.
Stable Electrical Specifications
Rated current below 35mA.
Factory OEM/ODM Support
Customization available according to customer drawings and specifications.
FAQ
The standard wavelength is650nm, which is a visible red laser.
The maximum output power is5mW. The rated power is specified asless than 5mW.
The cylindrical housing has an outer diameter of approximately4.0mm.
Yes. The S456505D is designed as ared dot / point laser module.
The operating temperature is-10°C to +50°C.
Yes. OEM/ODM customization can be discussed based on wavelength,
power, housing dimensions, cable, connector and other project requirements.
Yes. The product is specified asRoHS compliant.
