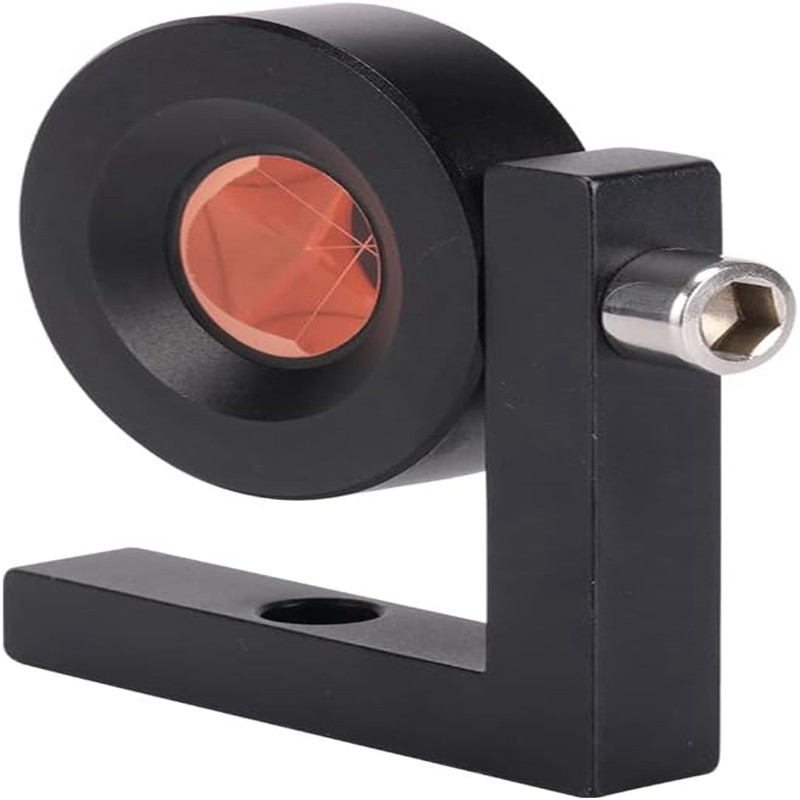

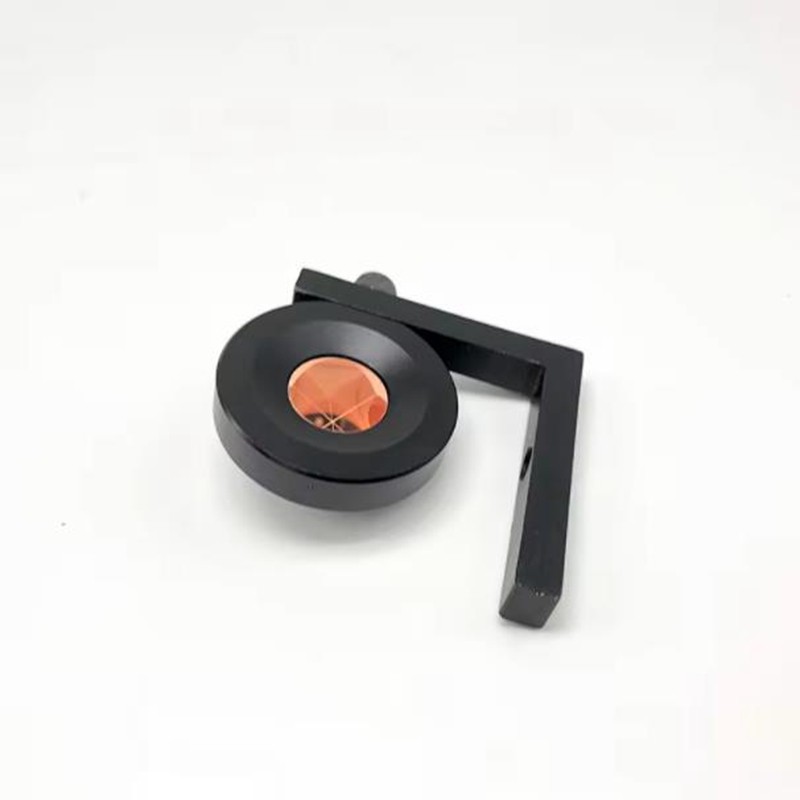

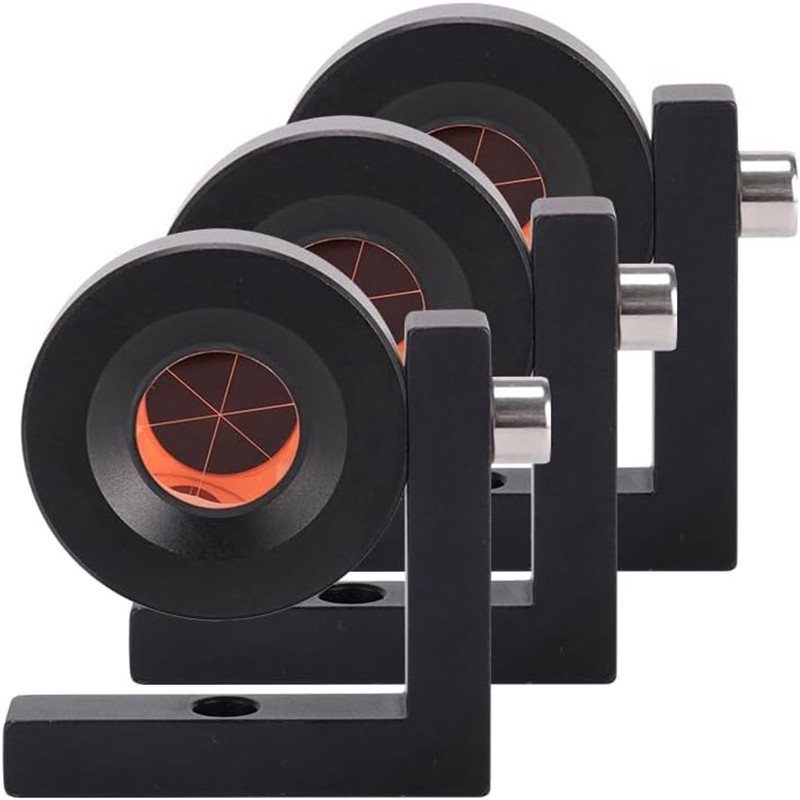

The Engineering Surveying Prismis a professional reflective
accessory designed for total station surveying, engineering measurement and mapping applications.
With a25.4mm prism glass diameter,-30mm prism constantand
a measuring range of up to800m, this prism is suitable for
a wide range of construction and engineering surveying environments.
Its stable structure and precision optical prism provide reliable
reflective performance for total station measurements.
Designed for engineering surveying and mapping applications
where stable prism reflection and accurate measurement are required.
The prism features a-30mm prism constant,
making it suitable for total station systems configured for this prism constant.

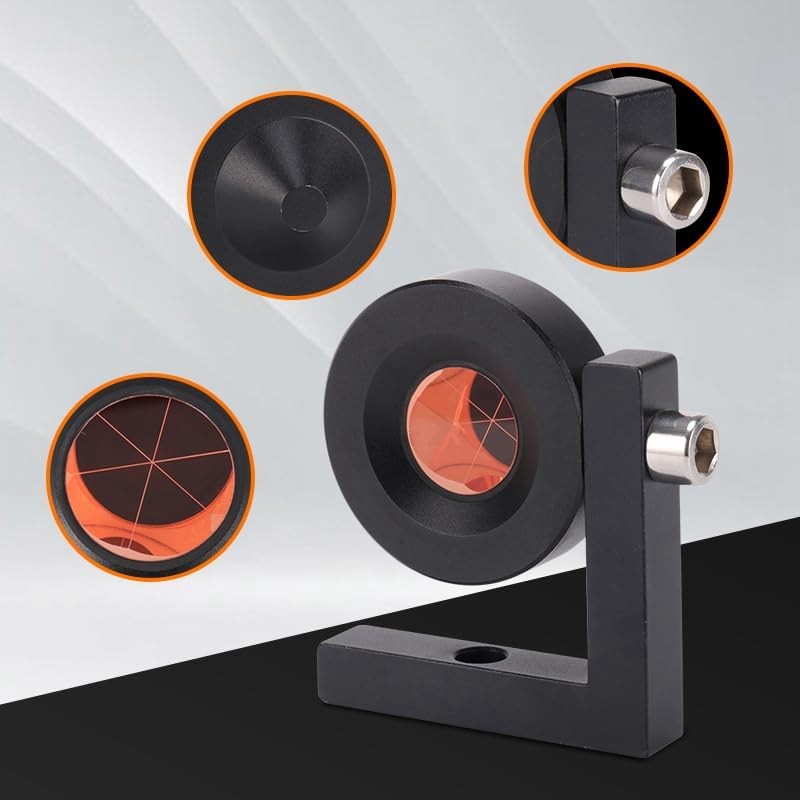

The optical prism has a25.4mm glass diameter, providing a
compact and practical reflective target for surveying applications.
The specified measuring range isup to 800 meters, depending
on the total station, atmospheric conditions, measurement environment and installation conditions.
The prism is designed for stable installation and reliable use in engineering surveying environments.
Designed for use with compatible total station systems,
including selectedLeica-compatible surveying setups.
| Item | Specification |
|---|---|
| Product | Engineering Surveying Prism |
| Application | Total Station Surveying |
| Prism Glass Diameter | 25.4mm |
| Prism Constant | -30mm |
| Measuring Range | Up to 800m |
| Function | Reflective Measurement |
| Measurement | Object Measurement / Displacement / Distortion |
| Application | Engineering Surveying & Mapping |
| Compatible Equipment | Compatible Total Station Systems |
| Main Environment | Construction & Engineering Sites |
This total station prism can be used in a variety of engineering and surveying projects.
Suitable for monitoring and measuring fixed points in tunnels and underground engineering projects.
Can be used as a reflective surveying target for subway construction and underground measurement.
Suitable for surveying and measurement applications in mining and related engineering environments.
Can be installed at selected fixed points or structures for total station measurement.
Suitable for measurement setups involving dams and other large engineering structures.
Can be used as an auxiliary reflective target for buildings, structures and construction projects.
The surveying prism can support applications involving:
The prism can be installed at suitable fixed locations or objects
according to the requirements of the surveying project.
Typical installation locations include:
The installation method should be selected according
to the specific total station system and project requirements.
The prism is designed for use with compatible total station equipment.
It can be considered for surveying systems using compatible
Leica-type total station configurations,
subject to the specific instrument model and mounting requirements.
For compatibility confirmation, please provide your total station model before ordering.
Designed specifically around total station surveying and engineering measurement applications.
Suitable for measurement systems requiring a -30mm prism constant.
Provides a practical optical reflector size for engineering surveying applications.
Specified measuring range of up to 800m under suitable measurement conditions.
Suitable for tunnels, subways, mines, roads, bridges, dams and buildings.
Customization and project-based solutions can be discussed according to customer requirements.
For professional surveying equipment distributors and engineering projects,
we can discuss customized solutions based on:
Please send your total station model, required prism constant and quantity for a project quotation.
The specified prism constant of this surveying prism is-30mm.
The prism glass diameter is25.4mm.
The specified measuring range isup to 800m.
Actual measurement distance can vary depending on the total station,
atmospheric conditions, target visibility and installation environment.
It is designed for compatible Leica-type total station configurations.
Please provide the exact Leica total station model to confirm compatibility before ordering.
Yes. The prism is suitable for applications involving tunnels,
subways and other underground engineering projects.
Yes. It can be used as a reflective target in suitable
total station setups for displacement and structural monitoring.
Yes. OEM/ODM solutions can be discussed for prism constant,
mounting configuration, bracket, housing and packaging requirements.
