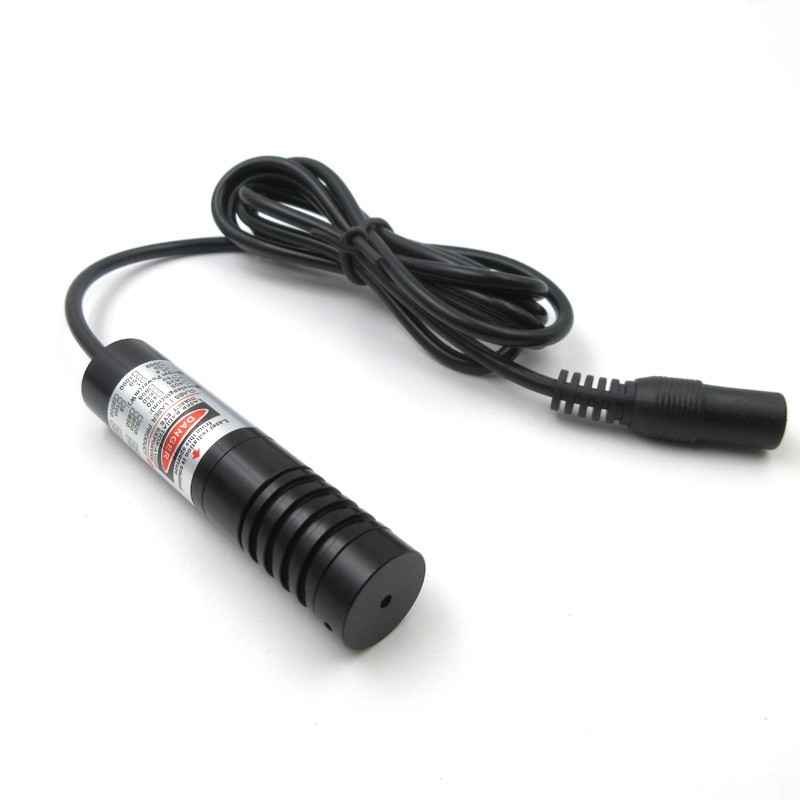

The 650nm 98-Dot Matrix Laser Moduleis a special-pattern semiconductor laser designed to project a dense multi-point lattice for positioning, machine vision, optical inspection, measurement and structured-light applications.
The module generates98 laser dots arranged as two 7×7 matrices, providing a compact and repeatable reference pattern. With a9.6° divergence angle, the projected outer frame measures approximately84mm at 0.5m, with a typical point spacing of14mm.
Photex Laser supports OEM/ODM customization for wavelength, output power, housing dimensions, working voltage, dot spacing, projection angle, working distance and optical pattern.
| Parameter | Specification |
|---|---|
| Product Type | Multi-Point / Dot Matrix Laser Module |
| Model | HW65098DZ100-16GD-9.6°-QYG009 |
| Laser Pattern | 2 × 7×7 Dot Matrix |
| Total Number of Dots | 98 |
| Wavelength | 650nm |
| Wavelength Customization | Available |
| Output Power | 100mW |
| Power Customization | Available |
| Divergence Angle | 9.6° |
| Outer Frame Size at 0.5m | Approx. 84mm |
| Dot Spacing at 0.5m | Approx. 14mm |
| Installation Height | 0–3m |
| Working Voltage | DC 2.8–5.2V |
| Other Voltages | Customizable |
| Working Current | <500mA |
| Standard Size | Ø16×70mm |
| Housing Size | Customizable |
| Optical Lens | Precision Grating Plate |
| Housing Material | Aviation Aluminum |
| Surface Treatment | Insulating Coating |
| Thermal Structure | Thermal Silicone + AB Adhesive Filling |
| Driver | Intelligent IC Driver |
| Operating Mode | Continuous |
At a working distance of0.5m:
The pattern size increases proportionally as the working distance increases.
The precision grating optical system provides:

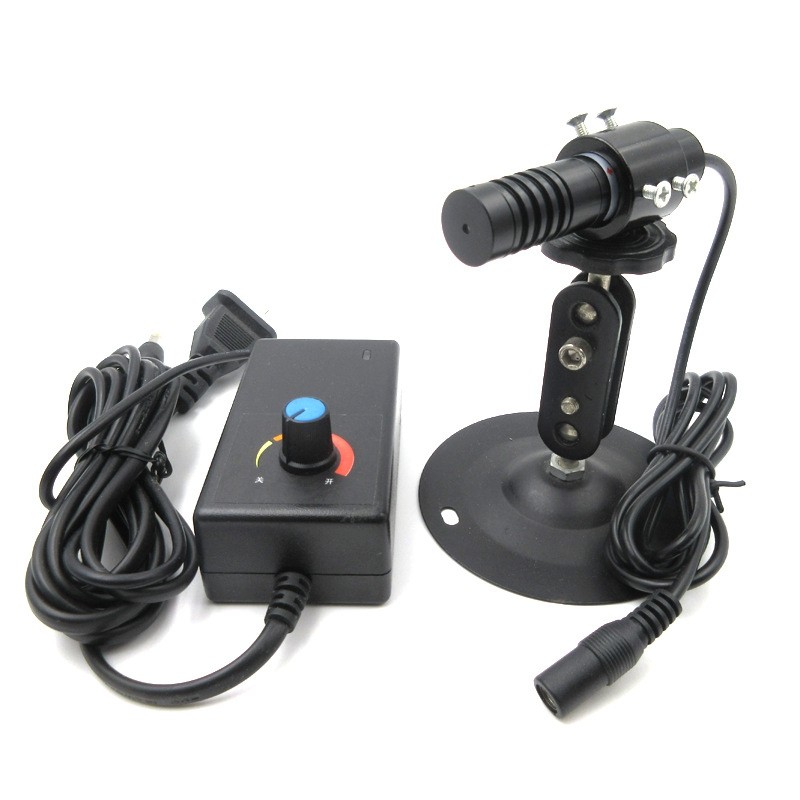

The complete set includes:
The projected laser dots are bright and well defined, providing a reliable optical reference for positioning and inspection.
The spot size can be optimized according to the working distance and application requirements.
A high-stability semiconductor laser diode and intelligent driver circuit support extended continuous operation.
The aviation aluminum housing provides:
Standard operating voltage:
DC 2.8–5.2V
Other voltage configurations can be customized.
Suitable for:
Used for:
Applicable to:
The dense dot matrix provides multiple reference points for:
Photex Laser provides customized dot matrix and multi-point laser modules for machine vision, positioning, inspection, measurement and structured-light applications.
