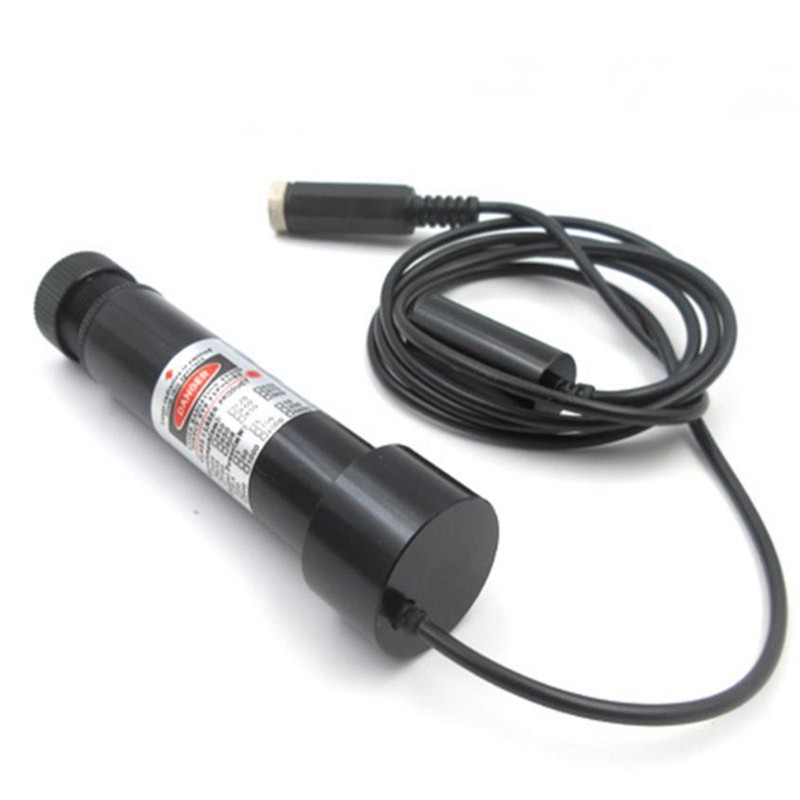

This bullseye-style optical pattern provides both circular reference and center alignment, making it suitable for precision positioning, centering, inspection, machine vision, calibration and industrial alignment applications.
Two standard projection-angle options are available:4.77°and9.95°, allowing different circle diameters at the same working distance.
Photex Laser supports OEM/ODM customization for wavelength, output power, projection angle, circle diameter, dot spacing, housing size, working voltage, cable configuration and optical pattern.

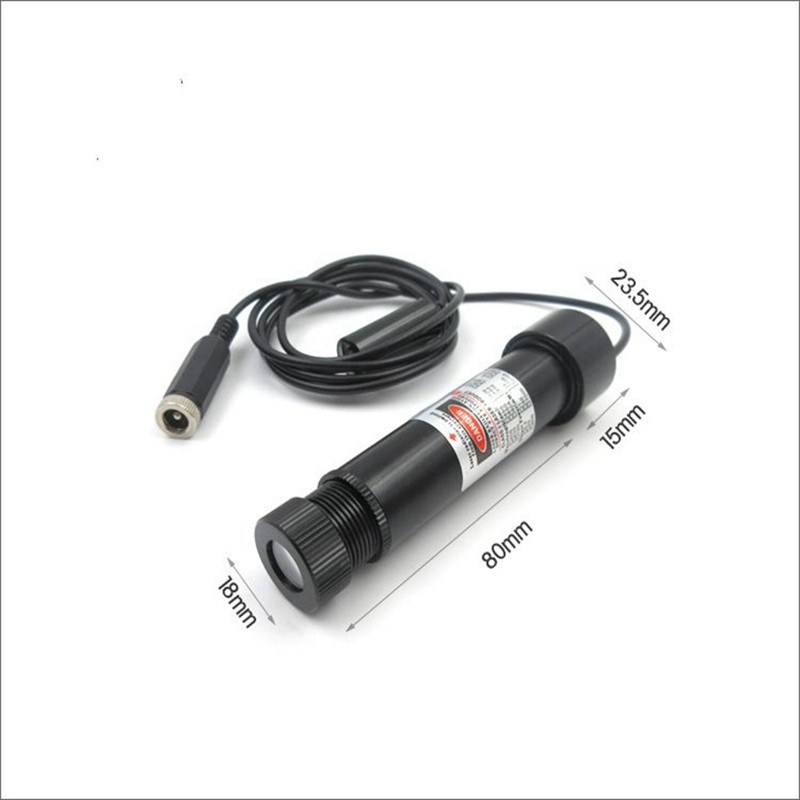

| Parameter | Specification |
|---|---|
| Product Type | 12-Point Circle Laser Module |
| Laser Pattern | 12 Circular Points + Center Dot |
| Laser Type | Semiconductor Laser |
| Optical Path | Internal Optical Path |
| Output Type | Power Type |
| Power Supply Type | Single Power Supply |
| Channel | Single Channel |
| Standard Wavelength | 650nm |
| Standard Output Power | 100mW |
| Projection Angle | 4.77° / 9.95° |
| Installation Height | 0–5m |
| Working Voltage | DC 2.8–5.2V |
| Other Voltages | Customizable |
| Working Current | <500mA |
| Standard Size | Ø16×70mm |
| Housing Size | Customizable |
| Optical Lens | Precision Grating Plate |
| Spot Size | Adjustable |
| Housing Material | Aviation Aluminum |
| Surface Treatment | Insulating Coating |
| Thermal Structure | Thermal Silicone + AB Adhesive Filling |
| Driver | Intelligent IC Driver |
| Cable | High-Temperature & Corrosion-Resistant Wire |
| Continuous Operation | Supported |
Model:HW65012YQZXD100-16GD-4.77°-391
Model:HW65012YQZXD100-16GD-9.95°-400
| Model | Projection Angle | Working Distance | Circle Diameter |
| HW65012YQZXD100-16GD-4.77°-391 | 4.77° | 3m | Approx. 250mm |
| HW65012YQZXD100-16GD-9.95°-400 | 9.95° | 3m | Approx. 522mm |
The larger projection angle produces a larger circular pattern at the same working distance.
The precision grating optical system generates 12 circularly distributed laser points together with a stable center point.
Main optical advantages include:

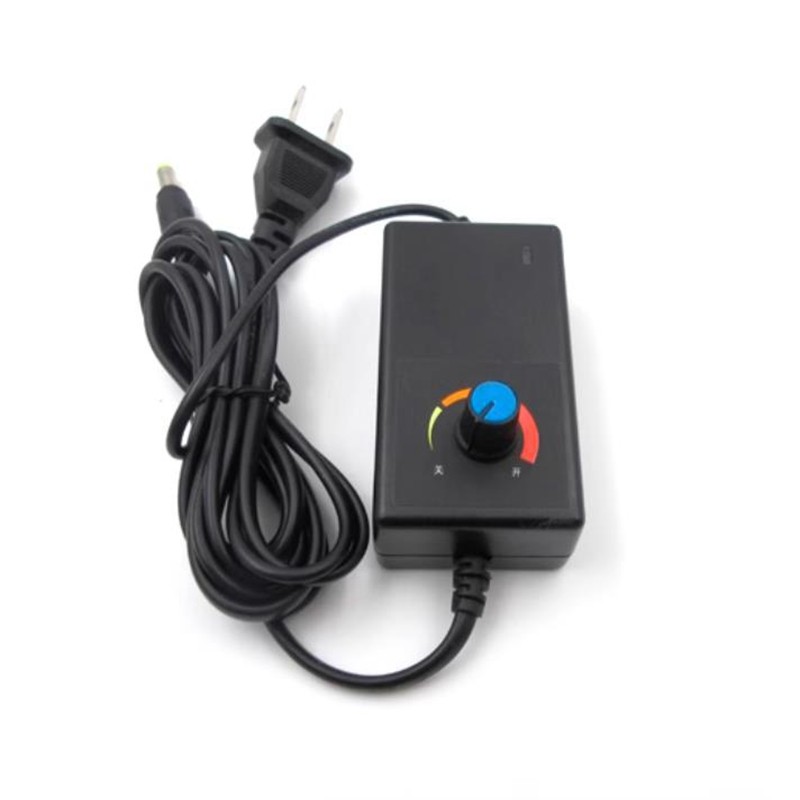

The complete set includes:
The 12-point circular pattern and center dot provide both outer circular reference and precise center positioning.
The laser spot size can be optimized according to working distance and visibility requirements.
A high-stability laser diode and intelligent driver circuit support extended continuous operation.
The aviation aluminum housing provides:
Standard working voltage:
DC 2.8–5.2V
Other voltage configurations can be customized.
Suitable for:
Used for:
Applicable to:
The 12-point circular pattern can be used for:
Photex Laser provides customized circular multi-point and bullseye laser modules for centering, positioning, inspection, machine vision and industrial alignment applications.
