635nm 1mW High-Concentricity Red Dot Laser Module
The 635nm 1mW Red Dot Laser Moduleis a compact red laser
source designed for applications requiring a clear and stable laser dot in a small installation space.
With a6×9mm compact brass housing, high-concentricity optical design
and stable 1mW red laser output, this module provides a practical
solution for precision positioning, alignment and optical equipment.
The module uses anAPC drive circuitfor stable laser output.
TTL control can also be customized according to application requirements.

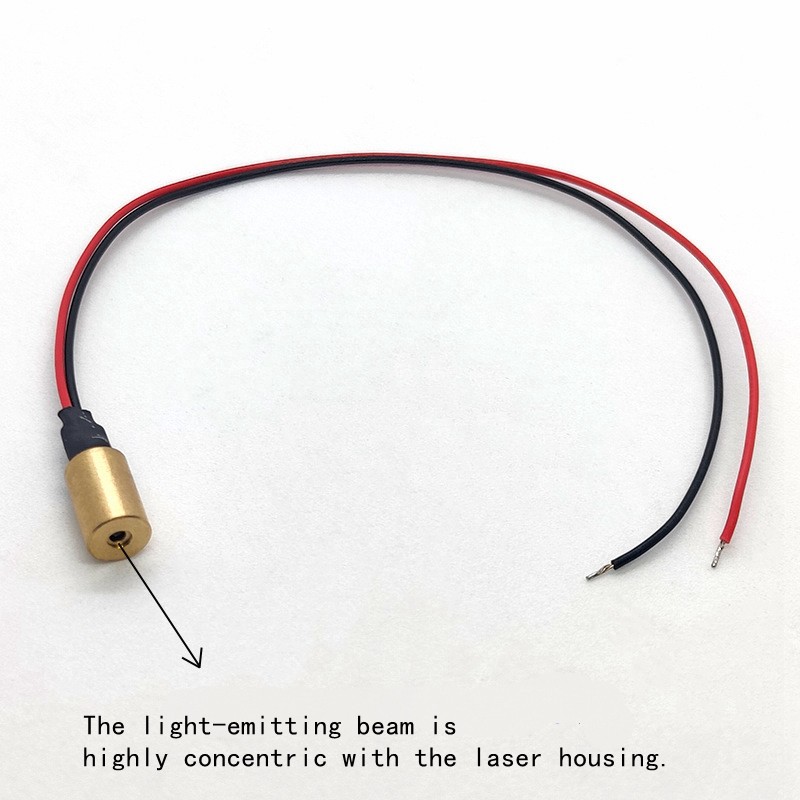

The high-concentricity optical design helps maintain accurate
alignment between the laser beam and the module housing,
making the module suitable for applications requiring consistent laser positioning.

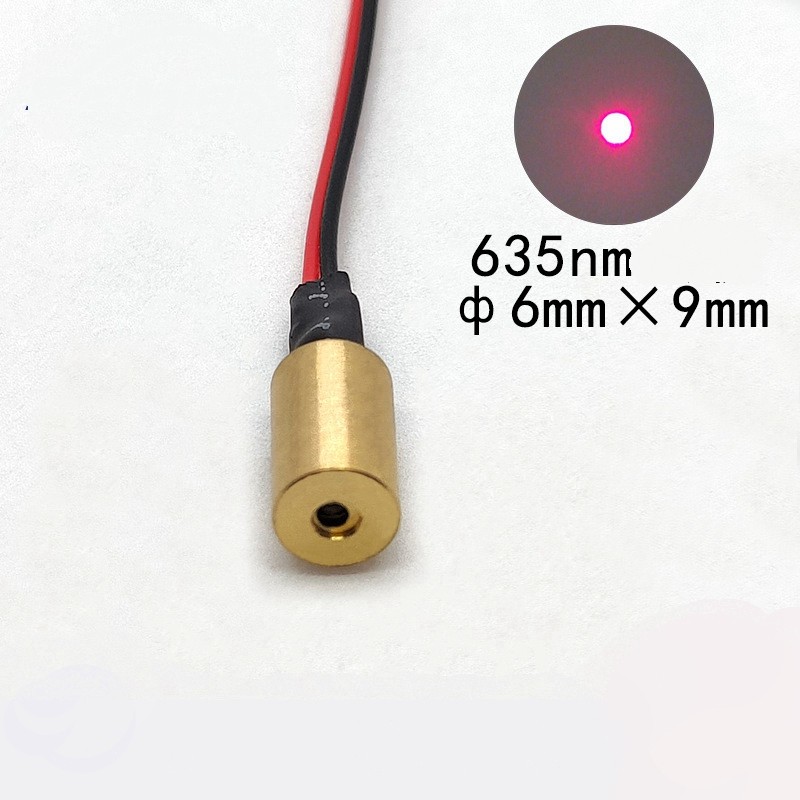

The6×9mm cylindrical housingprovides a very compact form factor
for equipment with limited installation space.

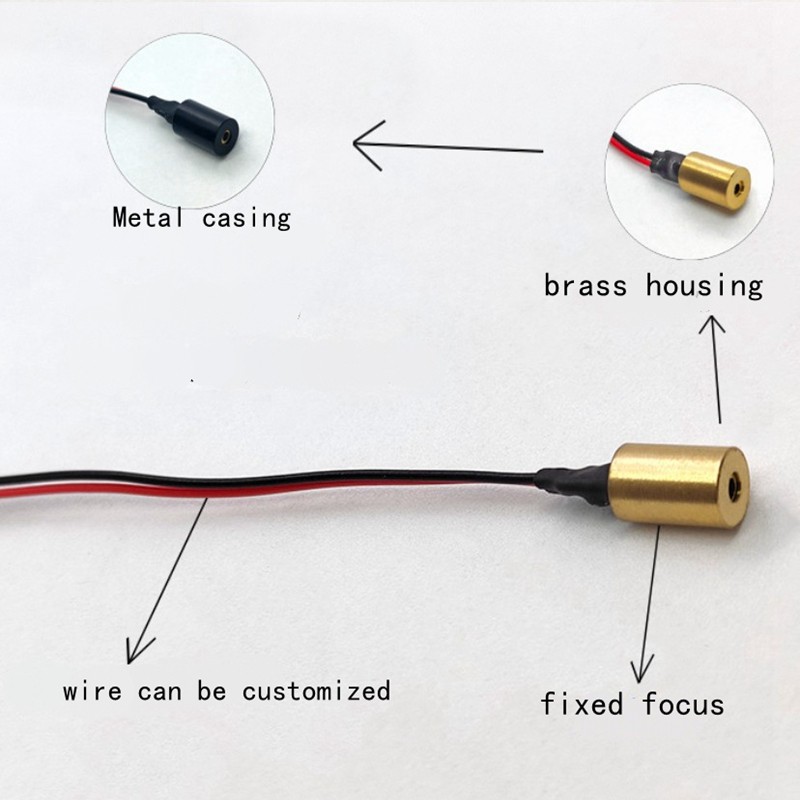

The standard housing uses a brass-colored natural finish,
while black insulated matte oxidationis available as an option.
With a nominal wavelength of635nmand output power of1mW,
the module produces a visible red laser dot for positioning and alignment applications.
Other output powers can be customized according to project requirements.
The module features afixed-focus optical designoptimized for stable dot projection.
The standard beam spot is:
<18mm at 10m
Actual spot size and clarity can vary depending on working distance and ambient lighting conditions.
The integratedAPC (Automatic Power Control)circuit helps maintain stable laser output during operation.
TTL modulation can be customizedfor applications requiring electronic laser control.
| Specification | Details |
|---|---|
| Wavelength | 635nm |
| Output Power | 1mW |
| Laser Color | Red |
| Beam Type | Dot / Elliptical |
| Housing Size | 6×9mm |
| Housing Material | Brass |
| Concentricity | High Concentricity |
| Focus | Fixed Focus |
| Beam Spot | <18mm at 10m |
| Working Range | <50m Indoor |
| Circuit | APC |
| TTL | Optional / Customizable |
| Operating Voltage | 2.8–5.2V DC |
| Current Consumption | <30mA |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |
| Wire | 26# Red / Black |
| Wire Length | Approx. 15cm |
| Connector | DC Female Plug |
| Cable Option | 1m Cable with Adapter |
| Safety Class | Class II |
The compact6×9mm laser moduleis designed for easy
integration into optical instruments, positioning systems and other compact electronic equipment.
Its small cylindrical housing helps save installation space while maintaining stable red laser output.
Compact Size → Easy Integration → Stable Laser Dot
The visible 635nm red dot makes this laser module suitable
for applications where a clear reference point is required.
Typical applications include:
As a laser module manufacturer, we can customize
the module according to your application requirements.
Available customization options include:
For volume projects, customers can provide drawings or technical specifications for engineering evaluation.
High Concentricity
Designed for accurate beam-to-housing alignment.
Ultra-Compact 6×9mm Housing
Suitable for compact equipment and space-limited applications.
Visible 635nm Red Laser
Provides a clear red reference dot.
Stable 1mW Output
Suitable for positioning and alignment applications.
APC Circuit
Supports stable laser output.
OEM Customization
Power, wavelength, housing, cable and control functions can be customized.
The standard wavelength is635nm, producing a visible red laser beam.
The standard optical output power is1mW.
Other power levels can be customized according to customer requirements.
The compact housing size is6×9mm, making it suitable for space-limited equipment.
This model uses afixed-focus design. Customized focusing solutions can be discussed for specific applications.
The typical indoor working range isless than 50 meters.
Actual visibility depends on ambient lighting conditions and application environment.
Yes.TTL control can be customizedaccording to customer requirements.
Yes. OEM/ODM customization is available for wavelength,
power, housing, cable, connector, TTL and other specifications.
The standard 1mW configuration isClass II.
Customers should use the module according to applicable laser safety requirements.
