Product Overview
The 660nm 200mW Red Laser Moduleis a high-power visible red laser module
designed for positioning, alignment, leveling, measurement and industrial equipment.
With awide voltage power supply design, the module can be integrated into
12V and 24V systems, while other input voltages can also be customized according to application requirements.
The module supportsadjustable spot, line and cross-line beam configurations,
allowing customers to select the required optical output for different installation and positioning applications.
A new laser diode core, Taiwan lens and intelligent driver board provide
stable optical performance for continuous operation.
The aviation aluminum housing, heat sink, thermal silicone and AB glue construction improve heat dissipation and mechanical protection.
The 660nm wavelength produces a visible red beam suitable for positioning, alignment, indication and measurement applications.
The standard output power is200mW, with customized power options available for different application requirements.
The intelligent driver board supports a wide input voltage range and is suitable for12V and 24V systems.
Other voltage specifications can be customized.
For spot-type configurations, the beam size can be externally
adjusted from approximately0.4mm to several centimeters, depending on the optical configuration and working distance.
For line-type configurations, the line width can also be adjusted from approximately0.4mm to several centimeters.
The optical configuration can be customized as:
This makes the module suitable for different positioning and alignment requirements.
The module uses a new laser diode core, Taiwan lens and intelligent
driver board and is designed for applications requiring extended operating periods,
with operation up to24 hours per dayunder suitable thermal conditions.
The aviation aluminum housing features insulating surface treatment,
a heat sink and internal thermal materials.
The interior is filled with thermal silicone and AB glue to
improve heat transfer and provide additional shock and drop resistance.
The 660nm red dot can provide clear and bright positioning illumination.
Reference range:
Actual visible distance depends on ambient light, atmospheric conditions, target surface, optical configuration and installation conditions.
The red line configuration is suitable for alignment, positioning and leveling applications.
Reference performance:
Line width can be externally adjusted from approximately0.4mm to several centimeters.

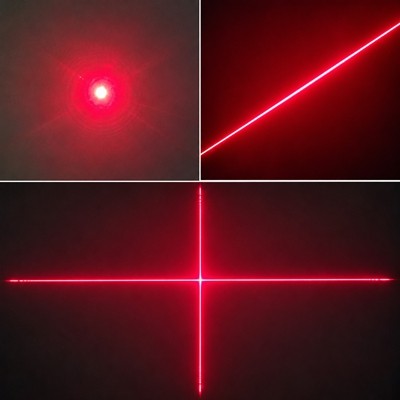

The cross-line configuration produces horizontal and vertical red lines.
Reference indoor range:
Up to approximately 12m
The horizontal and vertical line length can reach approximately 12m under suitable indoor conditions.
The module uses an intelligent driver board with an imported IC and a wide-voltage power design.
The housing is made from aviation aluminum with insulating
surface treatment and integrated heat dissipation components.
Internal thermal silicone and AB glue help improve heat transfer and mechanical stability.
This design is intended to provide:
The 660nm 200mW red laser module can be integrated into:
As a laser module manufacturer, we can customize the module according to your equipment requirements.
Available customization options include:
For OEM projects, customers can provide drawings,
technical specifications or application requirements for engineering review.
Wide Voltage Design
Suitable for 12V and 24V equipment with customized voltage options.
Adjustable Beam
Spot size and line width can be externally adjusted according to application requirements.
Multiple Beam Options
Dot, line and cross configurations are available.
Industrial Housing
Aviation aluminum housing with integrated thermal management.
Continuous Operation
Designed for extended operation under appropriate thermal and electrical conditions.
OEM/ODM Support
Power, voltage, optical configuration, dimensions and cable specifications can be customized.
The standard wavelength is660nm, producing a visible red laser beam.
The standard output power is200mW. Other output powers can be customized.
Yes. The module uses a wide-voltage power design and is suitable for 12V/24V systems. Other voltages can also be customized.
Yes. The spot size can be externally adjusted from approximately
0.4mm to several centimeters, depending on the optical configuration and working distance.
Yes. The module can be configured as a red dot, line or cross-line laser.
Yes. The line width can be externally adjusted from approximately0.4mm to several centimeters.
Yes. OEM/ODM customization is available for wavelength, power, voltage, housing, beam shape, cable, connector and other specifications.
The design supports extended operation, including up to
24 hours per day under suitable electrical, thermal and installation conditions.
This is a 200mW visible red laser module. It should be treated as a high-output laser source
and used only in controlled applications.
Avoid direct eye exposure and hazardous reflections. For equipment integration,
appropriate beam shielding, controlled access, warning labels and other applicable laser
safety measures should be implemented. The final laser classification
and required protective measures should be verified based on the complete configured
product and the regulations applicable in the destination market.
High-power 660nm 200mW red laser output
Adjustable dot, line and cross beam options
Wide voltage design for 12V / 24V systems
Durable aluminum housing with efficient heat dissipation
Stable performance for continuous operation
OEM / ODM customization support
Photex Laser provides 660nm 200mW red laser modules for industrial positioning,
machine alignment, leveling, measurement and customized OEM optical applications.
