Operating at808nm near-infrared wavelengthwith up to1200mW optical power, the module provides stable laser output with reduced visible-light interference and strong integration flexibility.

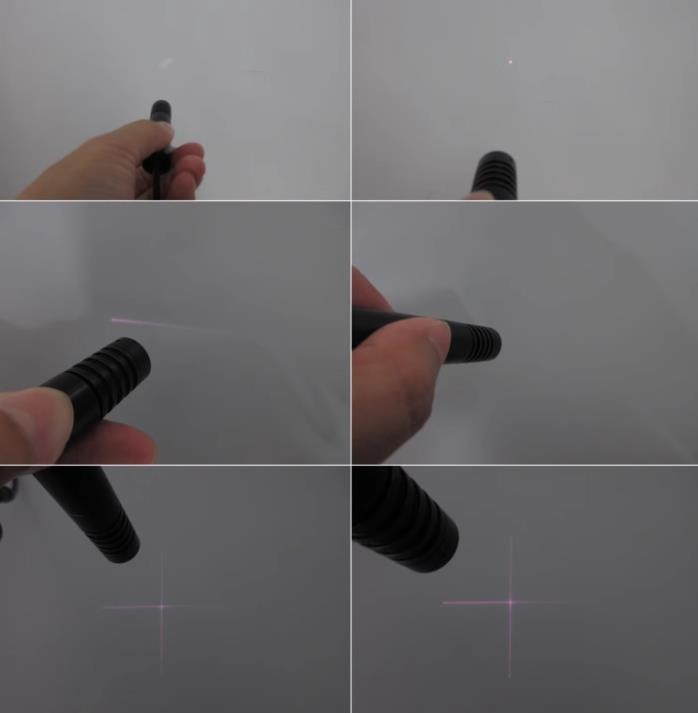

The module supports multiple beam patterns includingdot, line and cross, while the line or cross projection angle can be customized from5° to 120°according to the required working distance and projection size.

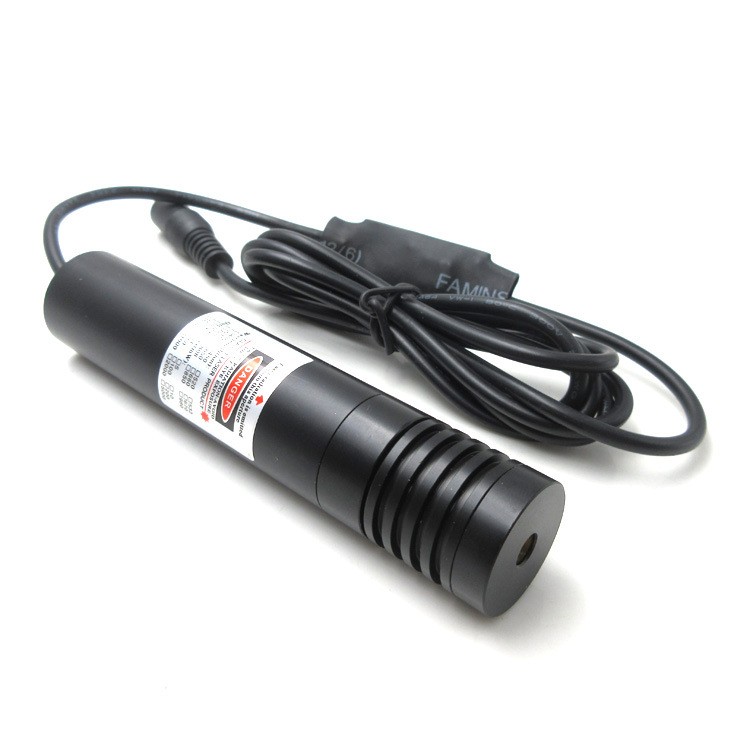

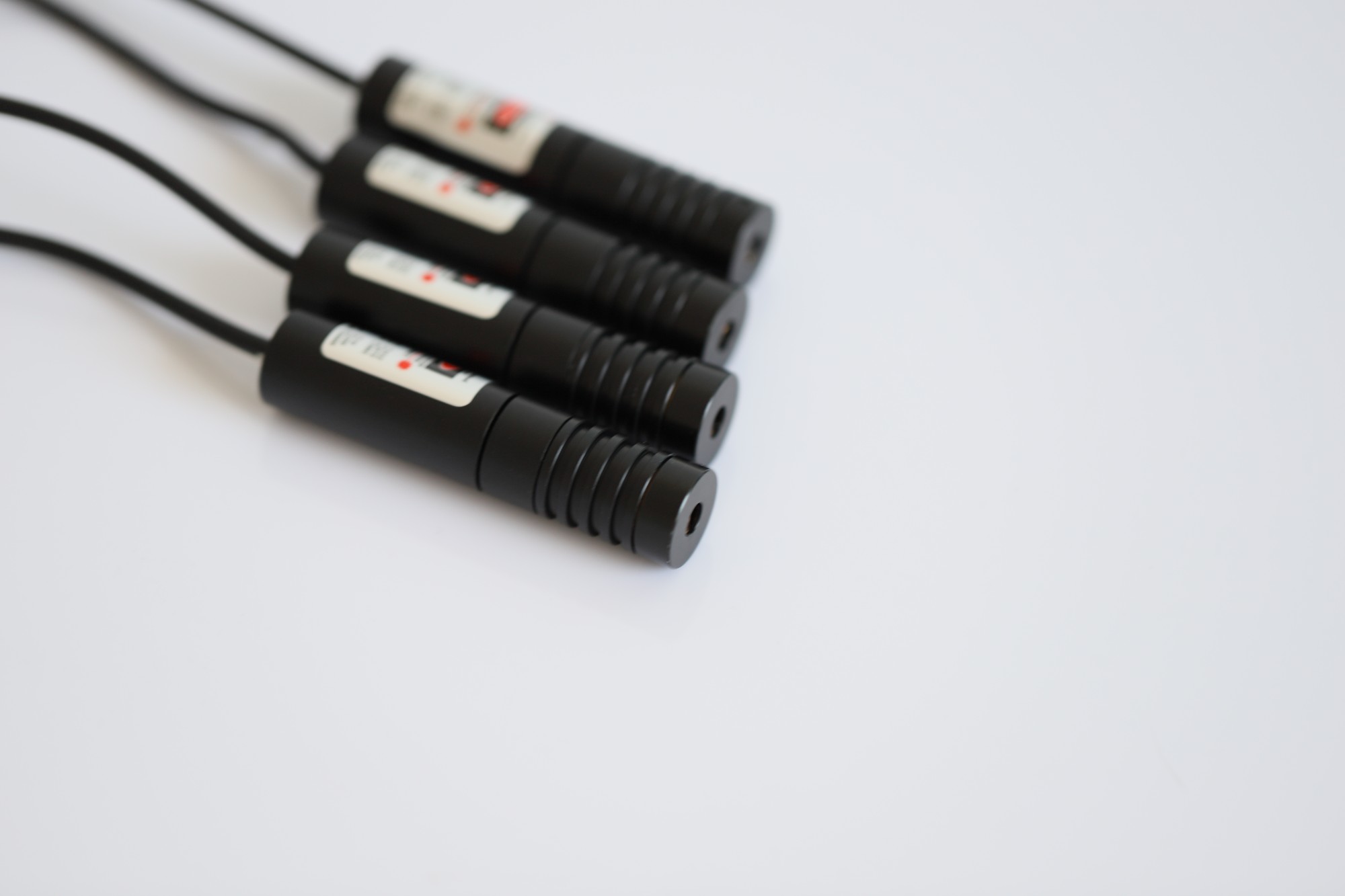

The standard housing isØ22×110mm, with a compactØ16×70mmversion also available.
PhotexLaser supports OEM/ODM customization for wavelength, output power, beam pattern, projection angle, spot size, line width, housing dimensions, operating voltage, cable configuration and working distance.
| Parameter | Specification |
|---|---|
| Product Type | High-Power Near-Infrared Laser Module |
| Model | EL1200AX808-22GD |
| Laser Type | Semiconductor Laser |
| Wavelength | 808nm |
| Band | Near Infrared |
| Output Power | 1200mW |
| Power Customization | Available |
| Operating Mode | Continuous Wave |
| Excitation Mode | Electrical Excitation |
| Beam Options | Dot / Line / Cross |
| Standard Size | Ø22×110mm |
| Optional Size | Ø16×70mm |
| Other Sizes | Customizable |
| Operating Voltage | DC 9–25V |
| Other Voltages | Customizable |
| Working Current | ≤1000mA |
| Output Type | Power Type |
| Focus Mode | Adjustable |
| Spot Size | Approx. 3mm to Several Centimeters |
| Line Width | Approx. 3mm to Several Centimeters |
| Line / Cross Angle | 5°–120° Optional |
| Housing Material | Aviation Aluminum |
| Surface Treatment | Insulating Coating |
| Driver | Intelligent IC Driver |
| Cable | High-Temperature & Corrosion-Resistant DC Cable |
| Customization | OEM / ODM Available |
The dot configuration provides a concentrated near-infrared laser spot for positioning, sensing and optical alignment applications.
The spot size can be adjusted from approximately3mm to several centimeters, depending on working distance and application requirements.
The line configuration uses a line-generating optical element to project a near-infrared laser line.
Available projection angles:
5°–120°
The line length increases with projection angle and working distance.
The cross configuration produces horizontal and vertical infrared reference lines for positioning, calibration and optical alignment systems.
Cross projection angles from5° to 120°can be customized.
The 808nm wavelength provides a near-infrared laser source suitable for applications requiring:
Because 808nm radiation is only weakly visible to the human eye, appropriate infrared detection equipment may be required for precise observation and alignment.
The optical structure allows flexible adjustment according to working distance.
Adjustable from approximately:
3mm to several centimeters
Adjustable from approximately:
3mm to several centimeters
The final beam dimensions depend on:
Line and cross optical configurations can be supplied with angles from:
5° to 120°
This allows the module to be configured for:
The 1200mW optical output provides a strong near-infrared laser source for demanding industrial and optical applications.
A high-quality laser diode provides stable direct optical output and reliable continuous operation.
The aviation aluminum housing provides excellent thermal dissipation for high-power operation.
The housing is designed to provide:
The intelligent driver circuit supports:
DC 9–25V
Other voltage configurations can be customized.
High-temperature and corrosion-resistant wiring supports operation in demanding industrial environments.

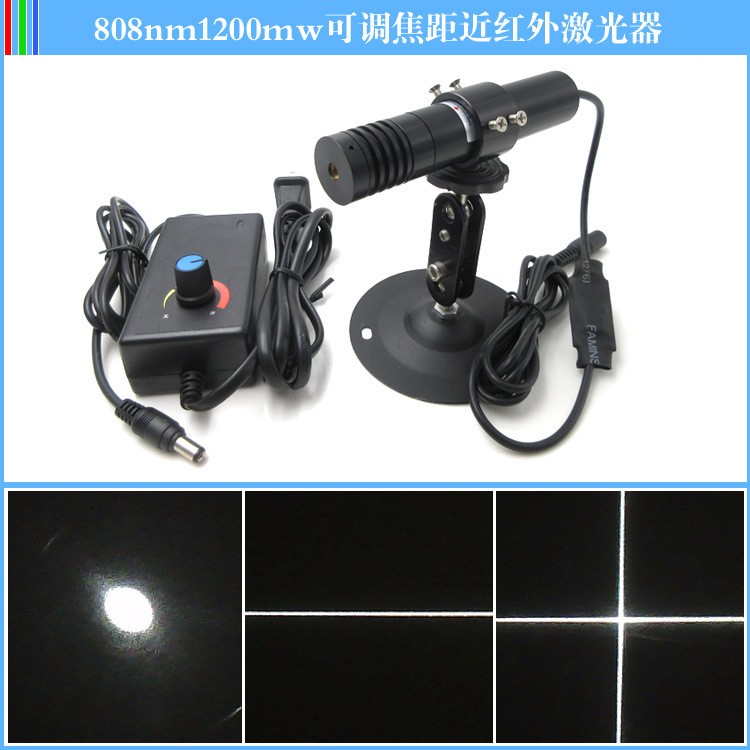

The complete set includes:
The final power supply configuration will be matched to the selected laser module specification.
The dot, line and cross configurations can be integrated into customized OEM products requiring high-power 808nm illumination or positioning.
808nm 1200mW is a high-power near-infrared laser source.
Near-infrared radiation may be difficult to see while still presenting a serious eye hazard. Appropriate laser safety controls, protective eyewear rated for the operating wavelength, beam enclosures and applicable safety procedures should be used during integration and operation.
Photex Laser provides customized 808nm high-power near-infrared laser modules for positioning, machine vision, sensing, inspection and OEM optical applications.
