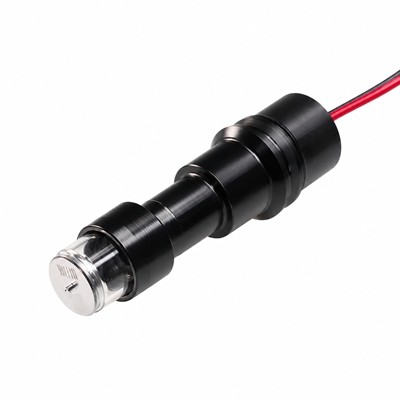

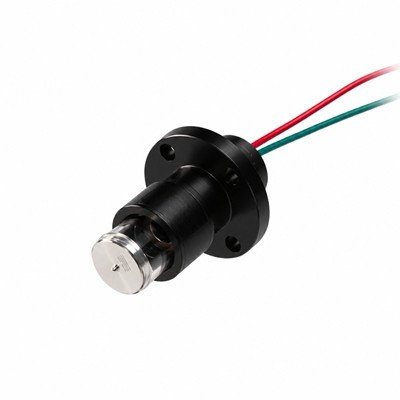

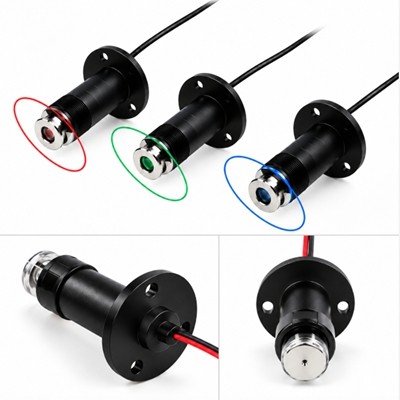

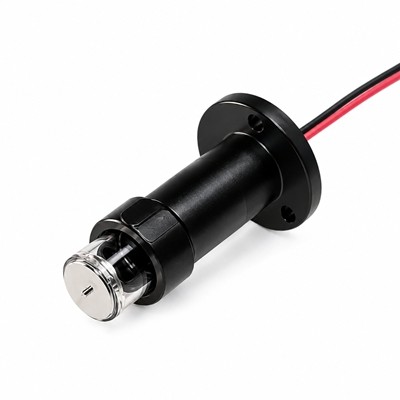

The 360 Degree Laser Line Module is a customizable laser light source
designed to generate a continuous 360° laser reference line for leveling,
positioning, marking and industrial alignment applications.
Available with635–665nm red laserand505–535nm green laseroptions,
the module can be customized in wavelength, output power,
operating voltage, optical system, housing structure and cable configuration.
It is suitable for integration into laser levels, construction
instruments, positioning equipment and customized optical systems.
The optical system produces a continuous 360-degree reference line,
making the module suitable for applications requiring full-angle leveling or positioning.
Choose between:
Red: 635–665nm
Green: 505–535nm
Different wavelength and power configurations
can be selected according to equipment requirements.
Output power can be customized from 20mW to 200mWaccording to working distance,
visibility and application requirements.
Operating voltage can be configured withinDC 2–30V,
allowing easier integration into different electronic systems.
Available optical configurations include:
Optical Glass Tube
Optical Metal Cone Mirror
Optical Glass Lens
Optical PMMA Lens
The optical structure can be selected according to the required projection effect.
| Parameter | Specification |
|---|---|
| Projection | 360° Laser Line |
| Red Wavelength | 635–665nm |
| Green Wavelength | 505–535nm |
| Output Power | 0.2–200mW |
| Voltage | DC 2–30V |
| Current | 10–150mA |
| Line Width | Approx. 1mm / Custom |
| Line Accuracy | ≤20″ / ≤0.5mm at 5m |
| Inclination | ≤1mm at 5m |
| Working Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +80°C |
Note:Actual line width, visibility and optical performance depend on working distance,
wavelength, output power and optical configuration.
Different equipment requires different laser specifications.
We support customized production according to customer drawings,
samples and application requirements.
Customization options include:
Wavelength:Red / Green / Custom
Output Power:0.2–200mW
Operating Voltage:DC 2–30V
Optical System:Glass / PMMA / Metal Cone Mirror
Laser Line:Width and projection effect customizable
Housing:Diameter, length and mounting structure
Cable:Length and connector customizable
Mechanical Structure:OEM design available
For new projects, customers can send us the required working distance,
wavelength, power, dimensions and drawings for technical evaluation.
The360° laser line moduleis suitable for:
Laser Leveling Equipment
Used as an optical light source for 360-degree leveling systems.
Industrial Alignment
Provides visible reference lines for equipment positioning and alignment.
Construction Instruments
Suitable for wall, floor, ceiling and installation reference systems.
Machine Positioning
Provides laser reference lines for machinery and processing equipment.
Optical Measuring Equipment
Can be integrated into customized measuring and positioning systems.
Changchun Realpoo Photoelectric Co., Ltd provides laser modules
and customized optical solutions for industrial and equipment integration applications.
From optical configuration to mechanical housing,
modules can be customized according to your equipment.
Samples can be supplied for optical performance and
equipment compatibility testing before bulk production.
Support prototype quantities, small batches and volume production.
Send us your drawing or application requirements,
and our team can evaluate the suitable wavelength, power,
optical structure and mechanical configuration.
For a fast quotation, please send us:
Wavelength:___ nm
Output Power:___ mW
Operating Voltage:___ V
Working Distance:___ m
Required Dimensions:___ mm
Quantity:___ pcs
Drawings or samples are also welcome.
Contact us for samples, OEM customization and factory quotation.
