480nm Narrow Band Reflective Optical Filter
Product Overview:
The 480nm Narrow Band Reflective Optical Filter
is designed for precise wavelength selection at 480nm,
offering high spectral accuracy and excellent optical stability.
It utilizes a reflective-type optical design combined
with advanced multilayer thin-film coating technology
on a high-quality optical glass substrate,
ensuring reliable and repeatable performance
in demanding optical applications.
Specification：

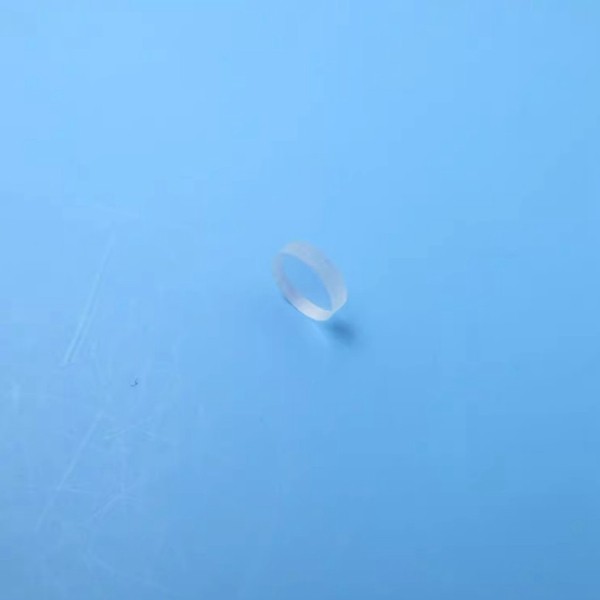

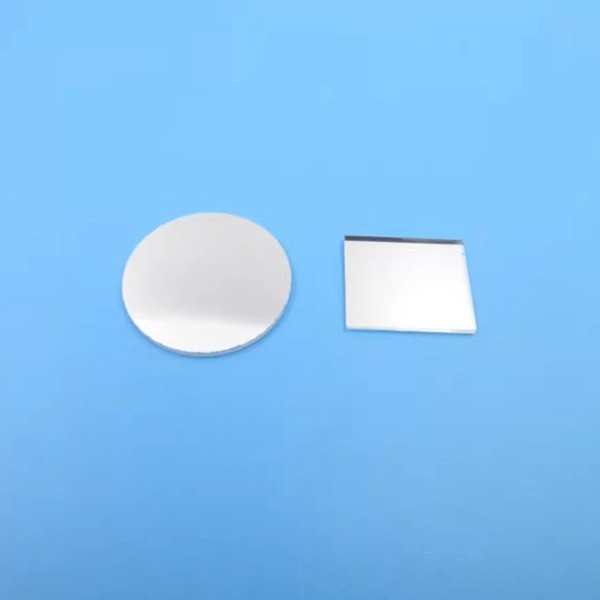

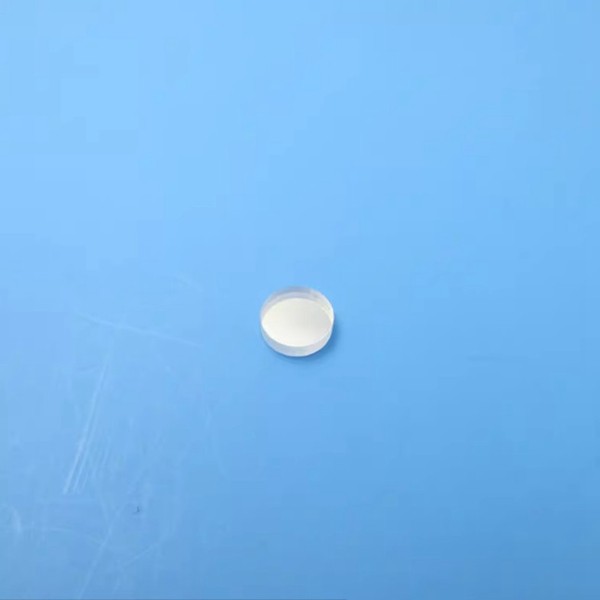

480nm Narrow Band Filter (RP-480ZDLGP-Y6.5) Specifications: Diameter: 6.5mm Thickness: 1.7mm
480nm Narrow Band Filter (RP-480ZDLGP-Y7*1.1) Specifications: Diameter: 7mm Thickness: 1.1mm
480nm Narrow Band Filter (RP-480ZDLGP-Y18*1.1) Specifications: Diameter: 18mm Thickness: 1.1mm
480nm Narrow Band Filter (RP-480ZDLGP-Y24) Specifications: Diameter: 24mm Thickness: 1.7mm
480nm Narrow Band Filter (RP-480ZDLGP-Y30*1.1) Specifications: Diameter: 30mm Thickness: 1.1mm
480nm Narrow Band Filter (RP-480ZDLGP-F4*4*1.1) Specifications: Length: 4mm Width: 4mm Thickness: 1.1mm
480nm Narrow Band Filter (RP-480ZDLGP-F11*11*1.1) Specifications: Length: 11mm Width: 11mm Thickness: 1.1mm
480nm Narrow Band Filter (RP-480ZDLGP-F25*20*1) Specifications: Length: 25mm Width: 20mm Thickness: 1mm

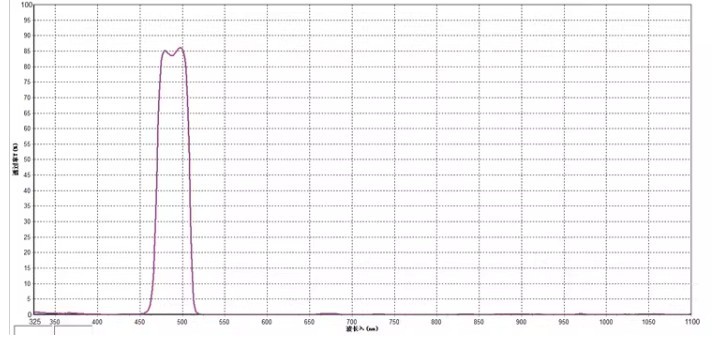

Optical Performance Advantages
✔ High reflectivity outside the passband
✔ Low optical loss at the 480nm working wavelength
✔ Sharp cut-off characteristics and high spectral selectivity
✔ Excellent environmental and thermal stability
________________________________________
Material & Coating Technology
• Substrate: Premium optical glass
• Coating: Multilayer dielectric reflective coating
• Strong coating adhesion and long service life
• Suitable for high-precision optical systems
________________________________________
Applications
• Fluorescence detection and analysis
• Machine vision and imaging systems
• Optical sensing and measurement
• Medical and laboratory instruments
• Industrial optical equipment
________________________________________
Customization & OEM Services
We provide OEM and customized optical filter solutions, including:
• Various standard sizes
• Custom dimensions and thicknesses
• Special bandwidth and coating requirements
• Bulk production and private labeling
________________________________________
Why Choose Our 480nm Optical Filters
• Stable and reliable optical performance
• Strict quality control
• Flexible customization options
• Factory-direct competitive pricing
• Professional technical support
• 480nm Narrowband Reflective Optical Filter
• The 480nm Narrowband Reflective Optical Filter is designed
for precise wavelength selection at 480nm,
delivering high spectral accuracy and stable optical performance.
It features a reflective filter design combined
with a high-precision multilayer thin-film
coating applied to a premium optical glass substrate,
ensuring excellent durability and repeatability.
