Photex Laser introduces the650nm Red Line Laser Module 100mW, designed for industrial alignment, positioning, cutting guidance, machine vision, and automated production applications.
With a visible650nm red laser wavelengthand up to100mW optical power, the module produces a bright and clear red laser line that can be easily observed on different working surfaces. The laser line provides an efficient visual reference for equipment installation, material positioning, cutting alignment, and industrial inspection.
The 650nm wavelength provides excellent visibility for industrial environments. Combined with a high-quality optical lens, the laser module can generate a uniform and clearly defined line suitable for both short- and medium-distance positioning applications.
Depending on the application requirements, the line width, fan angle, output power, focus distance, housing dimensions, and operating voltage can be customized.
Dimensions:26 × 110 mm
Optional sizes: 22 × 110 mm / 25 × 110 mm; other sizes can be customized.
Wavelength:650nm red laser, customizable
Output Power:100mW, customizable
Operating Voltage:DC 2.8–5.2V, customizable
Operating Current:≤200mA

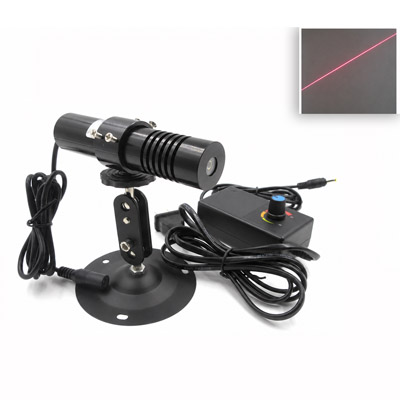

Complete Set Includes:
Laser module + mounting bracket + 1–3V adjustable power supply
·Indoor working environment:more than 12 meters
·Semi-outdoor environment (without direct sunlight):up to 6 meters
1. Waterproof & Dustproof Design
Designed with waterproof and dustproof protection, featuring high brightness for both indoor and outdoor applications.
2. Bright and Clear 650nm Red Laser
The 650nm wavelength produces a pure red laser beam with excellent visibility. The projected line is clear, bright, and comfortable to observe.
3. Adjustable Dot Size / Line Width
The red laser dot size or line width can be selected from approximately0.4 mm to several centimeters, depending on the application requirements.
4. Multiple Line and Cross Projection Angles
Line and cross laser lens angles are available from5° to 120°, allowing different projected line lengths and working distances to meet various positioning requirements.
5. Durable Aviation Aluminum Housing
The housing is made of aviation-grade aluminum with an insulating coating, providing efficient heat dissipation as well as resistance to vibration, impact, and static electricity.
6. High-Stability Laser Diode
Equipped with a high-quality imported laser diode for direct laser emission, providing excellent stability and supporting24-hour continuous operation.
7. Intelligent Driver Circuit
The intelligent driver board uses an imported IC and supports a wideDC 2.8–5.2V input voltage range. Other operating voltages can also be customized.
8. High-Temperature and Corrosion-Resistant Cable
Equipped with a high-temperature-resistant and corrosion-resistant DC power cable, suitable for continuous operation in a wide range of working environments.
Photex Laser specializes inlaser modules and customized laser optical solutions, including red, green, blue and infrared laser modules.
We support prototype development, small-batch orders and OEM/ODM production for industrial customers.
If you are looking for a650nm red line laser module 100mWfor positioning, alignment or machine integration, contact Photex Laser for specifications, customization options and quotation.
Contact us today to discuss your laser module application.
