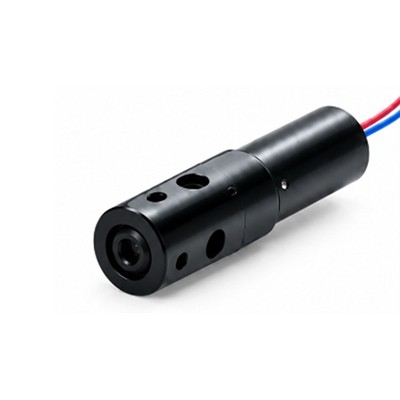

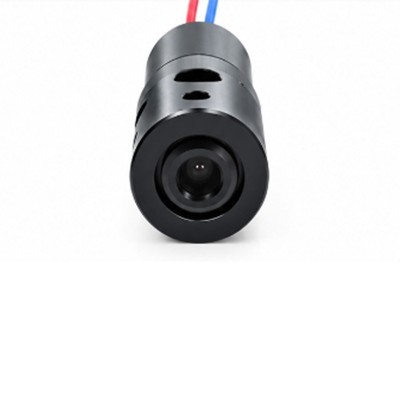

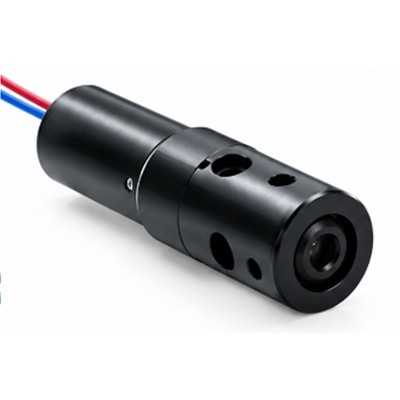

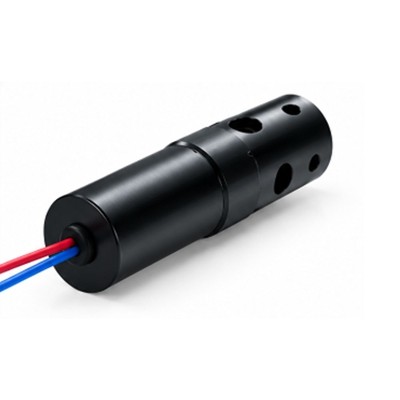

The 5 Point Laser Module is a compact multi-dot laser generator designed to project five laser
reference points for industrial positioning, optical alignment, equipment installation, and customized laser projection systems.
Manufactured by Changchun Realpoo Photoelectric Co., Ltd., this laser module is available with red and green wavelength options and customizable optical and electrical configurations.
Its compact cylindrical design makes it suitable for integration into industrial instruments, automation equipment, and precision optical systems.
Projects five laser reference points for positioning, alignment, and optical measurement applications.
Five-point laser pattern
Multi-dot projection
Custom optical arrangements available for evaluation
Suitable for visual positioning applications
Wavelength options are available within the 508–665nm range.
Different wavelength configurations can be selected according to the required laser color, visibility, and application environment.
Output Power: 0.1–100mW
Laser Source Power: 5–120mW
Power specifications depend on the selected configuration and should be confirmed before ordering.
Working Voltage: DC 2.6–10V
Working Current: 18–200mA
Electrical parameters can be evaluated according to customer equipment requirements.
The cylindrical housing is designed for integration into optical instruments and industrial positioning equipment.
Custom mechanical dimensions and installation requirements can be reviewed according to customer drawings.
Realpoo Optics supports customized laser module solutions for industrial applications.
Available customization requests include:
Laser wavelength
Optical power
Laser spot arrangement
Working voltage
Module dimensions
Housing structure
Cable and connector
Optical configuration
| Parameter | Specification |
|---|---|
| Product Type | 5 Point Laser Module |
| Laser Pattern | Five Laser Dots |
| Wavelength | 508–665nm Options |
| Output Power | 0.1–100mW |
| Laser Source Power | 5–120mW |
| Working Voltage | DC 2.6–10V |
| Working Current | 18–200mA |
| Operating Temperature | −10°C to +40°C |
| Storage Temperature | −20°C to +70°C |
| Optical Configuration | Custom Available |
| OEM / ODM | Available |
Specifications vary by model and configuration.
The five-point laser pattern provides multiple visual reference points for equipment setup and positioning tasks.
Multi-dot laser projection can assist with machine installation, fixture positioning, and alignment operations.
Custom laser modules can be integrated into automated equipment requiring projected reference points.
Five-point laser projection may be used in suitable optical measurement and calibration systems.
Laser reference points can support repeatable positioning during component assembly and production operations.
Realpoo Optics provides OEM and ODM laser module manufacturing services.
| Customization | Available Options |
|---|---|
| Laser Color | Red / Green |
| Wavelength | Custom Available |
| Laser Power | Custom Available |
| Dot Arrangement | According to Drawing |
| Operating Voltage | Custom Available |
| Module Size | Custom Available |
| Housing | OEM Available |
| Cable & Connector | Custom Available |
| Optical Design | Upon Request |
| Quantity | Sample / Bulk Orders |
Factory-Direct Supply
Competitive pricing for customized laser modules and volume orders.
OEM & ODM Manufacturing
Customized laser configurations according to customer requirements.
Quality Control
Inspection of optical and electrical performance according to agreed specifications.
Flexible Orders
Sample evaluation and bulk production inquiries are welcome.
Technical Support
Assistance with laser module selection, electrical parameters, and optical configuration.
Q1: What is a 5 point laser module?
A 5 point laser module is a laser projection device designed to generate five reference spots for positioning and alignment applications.
Q2: Are red and green laser options available?
Yes. Different red and green wavelength configurations are available for evaluation.
Q3: Can you customize the output power?
Yes. Output power options can be selected according to the application and technical requirements.
Q4: Can you manufacture according to our drawings?
Yes. We welcome OEM and ODM projects based on customer drawings and specifications.
Q5: Can we order samples before bulk production?
Yes. Sample inquiries are welcome for testing and equipment compatibility evaluation.
Looking for a reliable 5 point laser module manufacturer?
Please send us:
Laser color and wavelength
Output power
Dot arrangement
Projection distance
Working voltage
Module dimensions
Required quantity
Changchun Realpoo Photoelectric Co., Ltd.
Professional Laser Module & Optical Component Manufacturer
Contact Realpoo Optics for customized laser solutions and factory pricing.
