The520nm 5mW Green Dot Laser Moduleis a compact visible green laser
source designed forpositioning, alignment, measurement, indication and optical applications.
With a highly visible520nm green laser outputand nominal output power below5mW,
the module provides a bright green laser dot that is easy to observe in many indoor working environments.

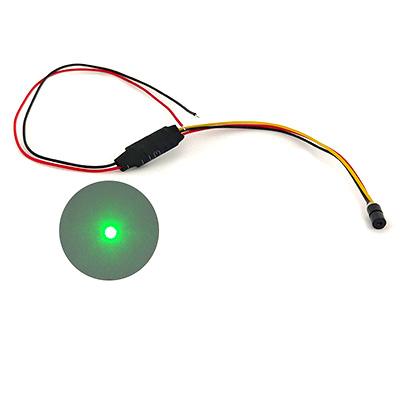

The compact laser head measures approximately4×8mm,
making it suitable for integration into space-limited equipment and customized laser assemblies.
The module supports a9–25VDC power input,
making it suitable for equipment using 12V, 18V or 24V DC power systems.
The focusing structure can be configured asadjustable focus or fixed focus, with adjustable focus as the default option.
| Parameter | Specification |
|---|---|
| Product Type | Green Dot Laser Module |
| Laser Color | Green |
| Wavelength | 520nm |
| Output Power | <5mW |
| Laser Pattern | Dot / Oval Spot |
| Laser Head Size | Approx. 4×8mm |
| Focus | Adjustable / Fixed |
| Default Focus | Adjustable Focus |
| Operating Voltage | 9–25VDC |
| Working Current | <150mA |
| Control Circuit | APC |
| TTL Control | Customizable |
| Working Range | <100m indoors* |
| Operation | Continuous |
| Working Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |
| Tail Wire | Approx. 15cm |
| Power Cable | 1m DC Female Plug Cable |
*Actual working distance depends on ambient lighting, target surface and environmental conditions.
The520nm green wavelengthprovides high visual visibility
and is suitable for applications where a clearly visible laser reference point is required.
Compared with many red laser sources,
green laser light can provide strong visual contrast in suitable working environments,
making it useful forpositioning, alignment and indication applications.
The laser module supportsadjustable focus or fixed focusconfigurations.
The default configuration is adjustable focus,
allowing the laser spot to be optimized according to the customer's required working distance.
The spot can appearround or oval depending on the optical adjustment and working distance.
For OEM applications, the focusing configuration
can be customized according to the equipment requirements.
The module supports a wide9–25VDC operating voltage range.
This makes it suitable for integration into equipment using common
DC power systems, including24V industrial equipment.
The operating current is less than150mA,
depending on the actual configuration and operating conditions.
The module projects a visible green laser dot with an oval spot shape that can be focused according to the required working distance.
The specified working range isless than 100 meters in an indoor environment. Actual performance depends on:
For best results, the focus can be adjusted according to the actual application distance.
The standard module uses anAPC control circuitfor stable laser output.
TTL control can be customizedaccording to customer requirements.
For OEM equipment integration, the power supply, control method and cable configuration can be discussed before production.
The520nm 5mW Green Dot Laser Modulecan be used for:
The compact design also makes the module suitable for:
With a miniature4×8mm laser head, this green laser module is designed for applications where installation space is limited.
The compact structure makes it suitable for integration into custom laser assemblies and OEM equipment.
Customization options may include:
The module is designed for continuous laser output with a specified service life ofmore than 10,000 hoursunder suitable operating conditions.
Working temperature:
-10°C to +50°C
Storage temperature:
-20°C to +70°C
The520nm 5mW Green Dot Laser Modulecombines a
highly visible green laser output, miniature housing, adjustable focusing and wide DC input range.
Its4×8mm compact design and 9–25VDC power inputmake
it suitable for integration into industrial positioning systems,
optical instruments, measurement equipment and customized OEM products.
The module uses a520nm visible green laser.
The standard output power isless than 5mW,
with other power configurations available for customization.
Yes. The default configuration isadjustable focus. Fixed-focus versions are also available.
Yes. The operating voltage range is9–25VDC, which includes standard24V DC systems.
The miniature laser head is approximately4×8mm.
