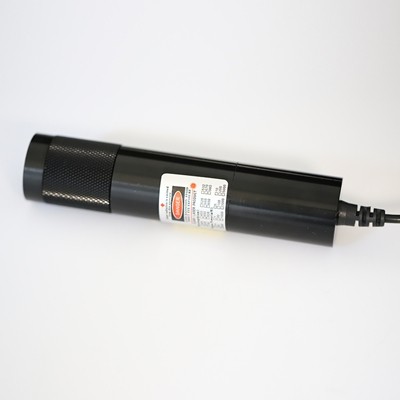

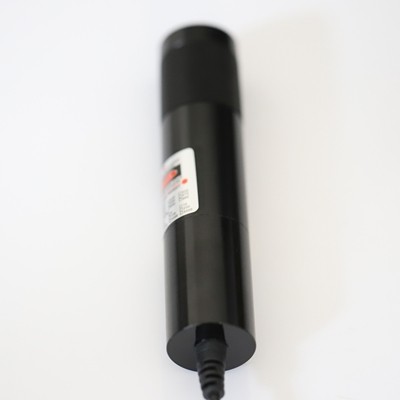

L-Type Right Angle Laser Module for Precision Positioning and Marking
The L-Type Right Angle Laser Moduleis a compact laser positioning
solution designed to project a clearL-shaped right-angle laser patternfor industrial positioning,
alignment, marking and cutting applications.
The module uses an external adjustable optical structure that allows the
L-shaped line length to be adjustedaccording to different working distances and application requirements.
This design makes the laser module suitable for machines and equipment
requiring a visible right-angle reference line for accurate positioning and alignment.
Available laser options include635nm red, 660nm red and 520nm green,
with different output powers available according to the selected model.
| Model | Wavelength | Output Power | Laser Color |
|---|---|---|---|
| HW635G5-27BD | 635nm | 5mW | Red |
| HW660G100-27BD | 660nm | 100mW | Red |
| HW525G10-BD27 | 520nm | 10mW | Green |
Note:Wavelength, output power,
dimensions and operating voltage can be customized according to application requirements.
| Parameter | Specification |
|---|---|
| Product Name | L-Type Right Angle Laser Module |
| Laser Pattern | L-Shaped / Right Angle |
| Model | HW660G100-27BD |
| Available Wavelengths | 635nm / 660nm / 520nm |
| Available Colors | Red / Green |
| Output Power | 5mW / 100mW / 10mW |
| Operating Voltage | DC 2.8–3.2V |
| Working Current | <200mA |

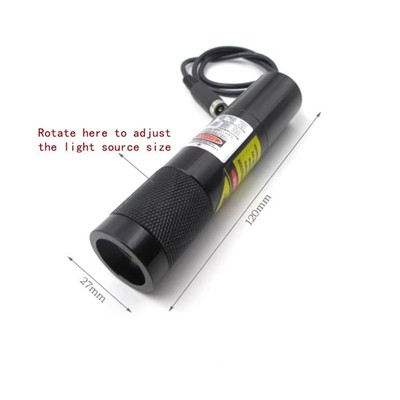

| Dimensions | 27 × 120mm |
| Line Length | Adjustable |
| Operation | Continuous |
| Output Type | Power Type |
| Transmission Signal | Single Power Supply |
| Customization | Available |

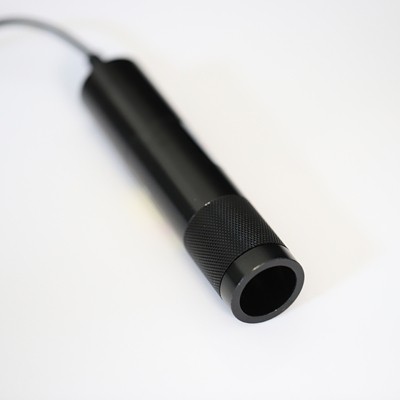

One of the main advantages of thisright-angle laser moduleis its adjustable external optical structure.
The projected L-shaped line length can be adjusted according to the working distance.
| Working Distance | L-Shaped Side Length |
|---|---|
| 10cm | 14–22mm |
| 25cm | 20–35mm |
| 50cm | 30–58mm |
| 100cm | 48–100mm |
This adjustment provides greater flexibility
when integrating the laser module into different machines and positioning systems.

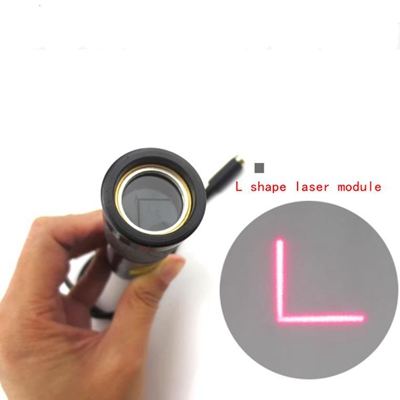

The L-shaped projection creates a visible right-angle reference that
can help operators and automated equipment quickly determine positioning points,
edges and alignment directions.
It is especially useful for equipment wheretwo perpendicular laser reference linesare required.
Typical applications include:
The L-shaped laser can provide a visible reference line forcutting,
positioning and alignmentin manufacturing equipment.
Applications include:
The laser module can be integrated into textile and garment equipment for:
The right-angle laser projection can also be used for:
Customized laser positioning solutions can be developed for:
We provideOEM and ODM laser module solutionsfor industrial equipment manufacturers and system integrators.
Customization options can include:
If you have a specificL-shaped laser positioning requirement,
provide the working distance, required L-line size,
wavelength and output power for a customized solution.
The L-Type Right Angle Laser Modulecombines a compact
housing with an adjustable optical structure,
making it suitable for equipment requiring a flexibleL-shaped laser positioning reference.
Its adjustable line length allows the same basic laser design to
be adapted to different working distances,
while multiple wavelength and power options provide flexibility for different industrial environments.
An L-Type laser module is a laser positioning device that projects anL-shaped or right-angle laser patternfor positioning, alignment and marking.
The available options include635nm red, 660nm red and 520nm greenlaser versions.
Yes. The upgraded external optical structure allows theL-shaped projection length to be adjusted.
