Product Specifications
Laser Color ： Red
Product Size ： D16 × 70mm
Laser Head Size：16 × 50mm
Cable Length ： 1.2m
Working Range ： 5–6m Indoor
Lens ： 110° Cylindrical Glass Lens
Line Type：Straight Red Line
Line Width ：Approx. 1mm at 1m
Installation ：Adjustable / Tilt Mount
Application：Cutting / Positioning / Alignment
Designed for Real-World Machine Positioning
Traditional marking methods such as chalk,
ink or manual lines can be inconvenient during continuous machine operation.
This red line laser creates a visible positioning line directly on the working surface,
allowing operators to quickly identify the cutting or alignment position.
It is especially useful for applications where fast visual positioning and consistent cutting direction are required.
Key Product Advantages
1. Clear Straight Red Line
Provides a precise and easy-to-see red reference line for cutting and positioning.
2. 110° Wide-Angle Lens
The cylindrical glass lens creates an extended straight laser line suitable for machine positioning.
3. Adjustable Installation
The module supports tilt adjustment, making it easier to align the laser line with the actual cutting or working direction.
4. Compact Design

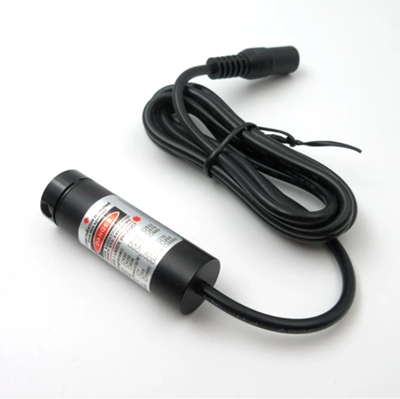

With a D16 × 70mm body and 16 × 50mm laser head,
it can be integrated into equipment where installation space is limited.
5. Durable Industrial Design
Shock-resistant construction and a high-temperature, corrosion-resistant
DC cable support stable operation in demanding environments.
6. Stable Continuous Operation
The stable laser diode provides consistent laser output and is suitable for long-term machine operation.
Application Scenarios
Woodworking
Projects a straight reference line onto wood boards to assist with cutting and positioning.
Multi-Angle Saws
Provides a visible laser guide to help operators identify the cutting direction.
Cutting Equipment
Suitable for machine positioning and alignment during cutting operations.
Garment Cutting
Provides a clear reference line for fabric cutting and positioning.
Industrial Alignment
Can be integrated into machinery requiring a visible straight-line positioning reference.
Easy Installation & Integration
The compact cylindrical design and 1.2m cable make the module convenient for equipment integration.
The adjustable mounting structure allows the laser direction to be fine-tuned after installation,
helping achieve the required projection position.
OEM & Customization
For different machines and applications, we can provide customized solutions based on your requirements.
Customization options may include:
Laser wavelength
Output power
Lens angle
Line width
Cable length
Housing dimensions
Installation structure
Please contact us with your machine model,
working distance and required laser line, and we can recommend a suitable configuration.
Precise Red Line • Easy Positioning • Stable Performance
Need a laser positioning solution for your machine? Contact us for technical support and OEM customization.
