The850nm 10mW Infrared Dot Laser Moduleis a compact near-infrared
laser source designed for optical positioning, alignment, sensing and equipment integration.

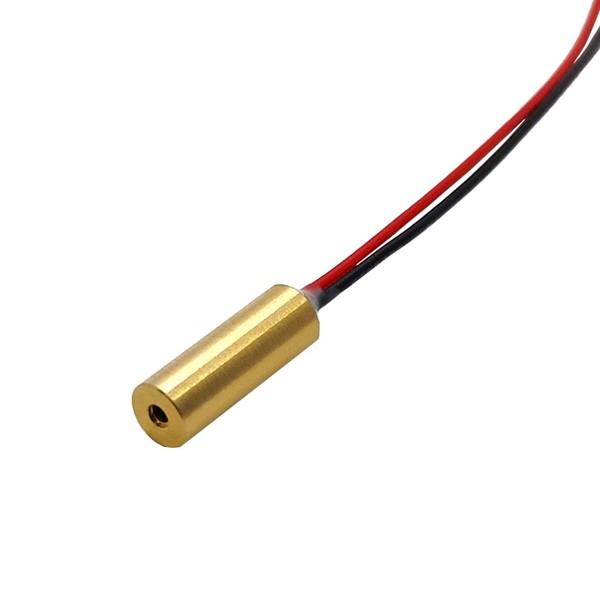

Featuring a5×14mm cylindrical housing, the module provides an ultra-compact
form factor for applications where installation space is limited.
The module operates at850nm ±10nmand provides an infrared dot/oval output.
The aviation aluminum all-metal housing is available in a natural brass-colored finish,
with a black insulated oxide matte finish available as an option.
The module operates at850nm ±10nm, providing invisible
near-infrared laser output for applications requiring an IR optical source.
The ultra-small5×14mm cylindrical designmakes the module
suitable for compact optical and electronic equipment.
The 5.0mm diameter housing can be integrated into space-limited systems.
The standard output is adot/oval laser beam.
The focusing configuration can be adjusted according to
the customer's required working distance and optical design.
The module uses anaviation aluminum all-metal casing.
The standard housing is natural brass-colored, while a black insulated oxide matte finish can be customized.
The module uses anAPC circuitfor laser drive control.
For suitable OEM applications,TTL modulation can be customized
according to the required electrical configuration.
The module supports:
2.8–5.2V DC
This allows convenient integration into different low-voltage electronic systems.

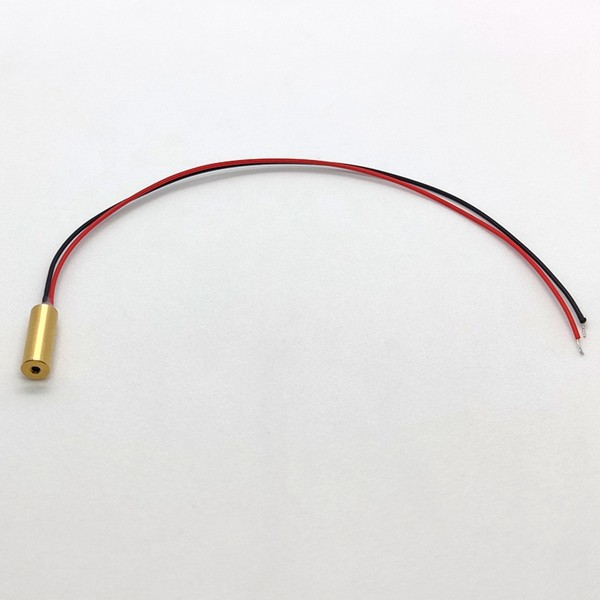

| Parameter | Specification |
|---|---|
| Model | S5585010D* |
| Wavelength | 850nm ±10nm |
| Laser Type | Infrared |
| Output Type | Dot / Oval |
| Exit Pupil Power | <10mW |
| Size | 5×14mm |
| Diameter | 5.0mm |
| Housing | Cylindrical |
| Housing Material | Aviation Aluminum |
| Construction | All-Metal Casing |
| Standard Color | Natural Brass Color |
| Optional Color | Black Matte Oxide |
| Focus | Fixed / Customer-Specified |
| Working Range | <20m Indoor* |
| Circuit | APC |
| TTL | Customizable |
| Working Voltage | 2.8–5.2V DC |
| Working Current | <40mA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |
| Tail Wire | 28# Red & Black, Approx. 15cm |
| DC Cable | 1m Female DC Cable |
| Safety Class | Class IIIB |
| Certification | RoHS |
| Package | 1 × Laser Module |
*Working distance can vary depending on indoor ambient light conditions.
The850nm Infrared Dot Laser Modulecan be integrated into:
The compact IR dot output can be used as an optical reference source
in suitable positioning and alignment equipment.
The small5×14mmhousing is particularly suitable for equipment
manufacturers requiring a compact infrared laser source.
We provide OEM/ODM laser module customization for
different equipment and optical system requirements.
Customization options include:
Customers can providemechanical drawings, required working distance,
power supply specifications or application detailsfor technical evaluation.
10,000 hours service life
The standard wavelength is850nm ±10nm.
850nm is in thenear-infrared rangeand is generally not visible as ordinary red light to the human eye.

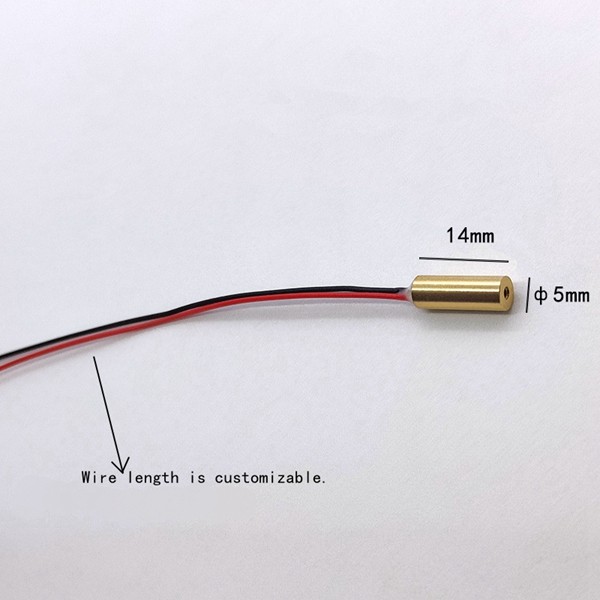

The module measures approximately5×14mm, with a 5.0mm cylindrical diameter.
The supplied specification lists the exit pupil light power asless than 10mW.
The working voltage is2.8–5.2V DC.
Yes. The focus configuration can be adjusted according to the customer's required working distance and application.
Yes. The standard circuit usesAPC, while TTL can be customized for suitable applications.
Yes. The standard housing is natural brass-colored. Ablack insulated oxide matte finishcan also be provided.
Yes. We support customization of wavelength, output power, housing dimensions, focusing, cable, connector, electrical configuration and packaging.
