The 650nm 150mW High-Power Red Dot Laser Moduleis a compact semiconductor laser source designed for industrial positioning, alignment, measurement, inspection and OEM optical applications.
Featuring aØ12×40mm aviation aluminum housing, adjustable focusing structure and stable electronic control, this module provides a bright visible red laser spot with reliable long-term operation.
The standard version operates at650nm ±10nmwith optical output up to150mW. Other wavelengths, output powers, focusing modes, cable configurations and housing sizes can be customized according to application requirements.
PhotexLaser supports OEM/ODM laser module solutions from prototype development to volume production.
| Parameter | Specification |
|---|---|
| Product Type | High-Power Red Dot Laser Module |
| Model | SB5650150D |
| Wavelength | 650nm ±10nm |
| Output Power | <150mW |
| Laser Color | Red |
| Beam Pattern | Dot |
| Spot Shape | Elliptical |
| Spot Size | <12mm at 10m |

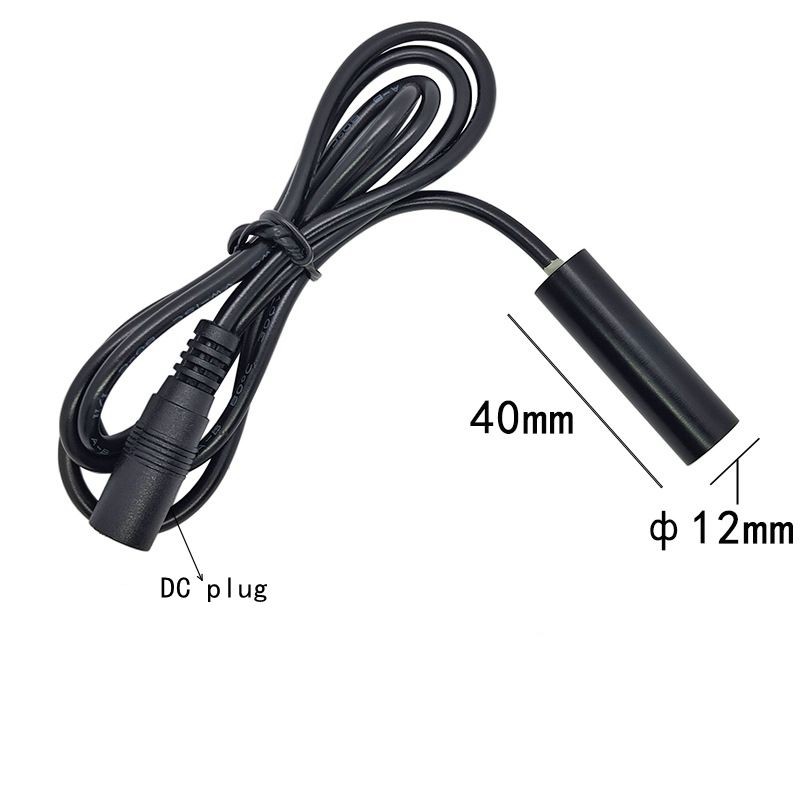

| Standard Size | Ø12×40mm |
| Housing Size | Customizable |
| Housing Material | Aviation Aluminum |
| Housing Type | All-Metal Shell |
| Surface Treatment | Black Insulated Oxidized Finish |
| Installation Method | Insert Type |
| Ports | 1 |
| Focus Mode | Adjustable Focus / Fixed Focus Optional |
| Circuit Control | ACC |
| TTL Control | Customizable |
| Working Voltage | DC 2.8–5.2V |
| Working Current | <250mA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Working Distance | Up to 1600m, depending on conditions |
| Service Life | >10,000 Hours Continuous Operation |
| Safety Class | Class IIIB |
| Certification | RoHS Compliant |

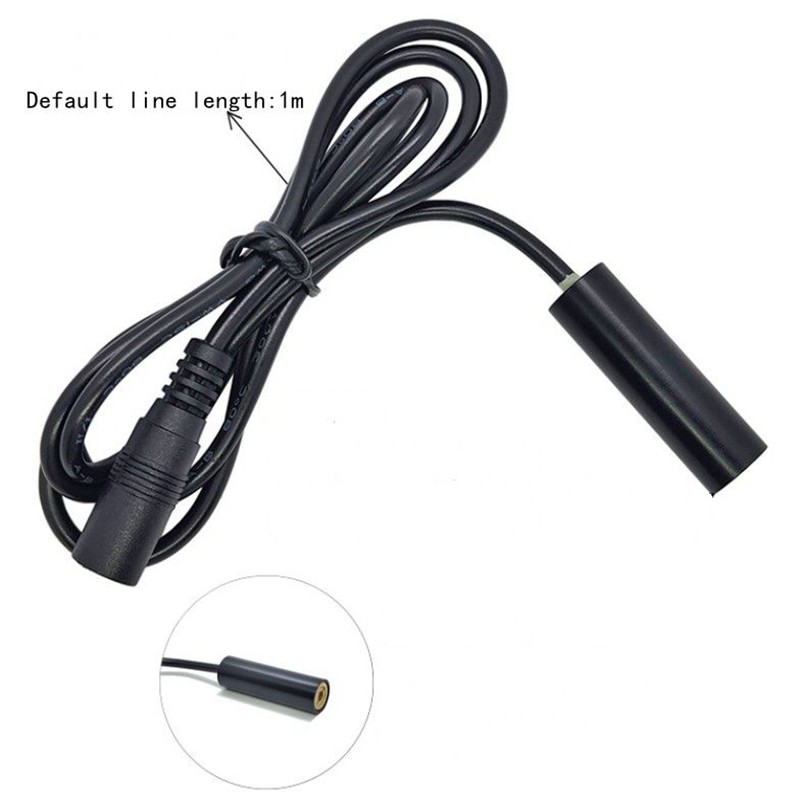

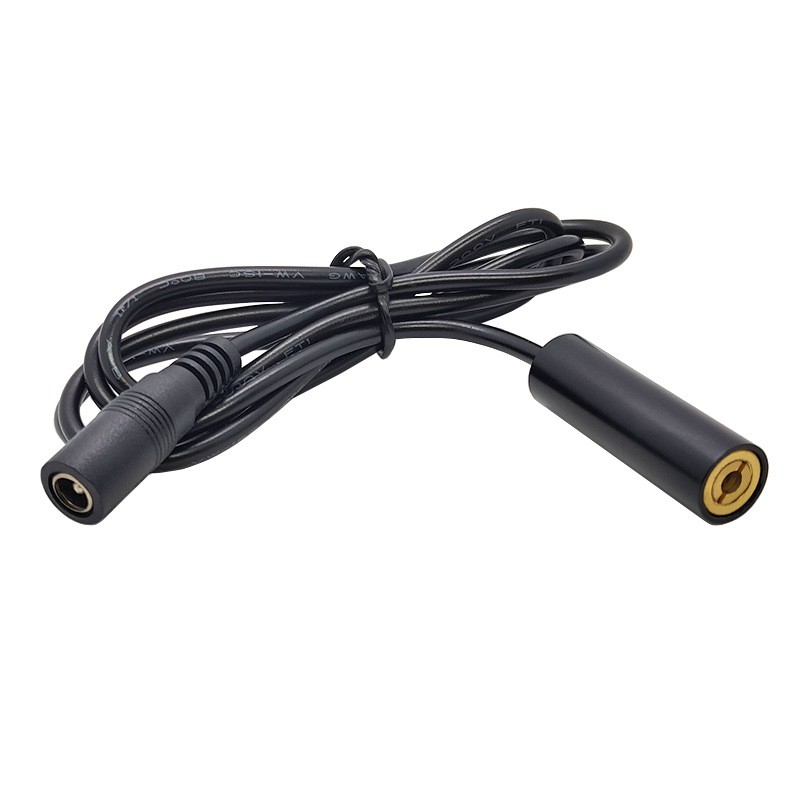

| Standard Cable | Approx. 1m DC Female Connector Cable |

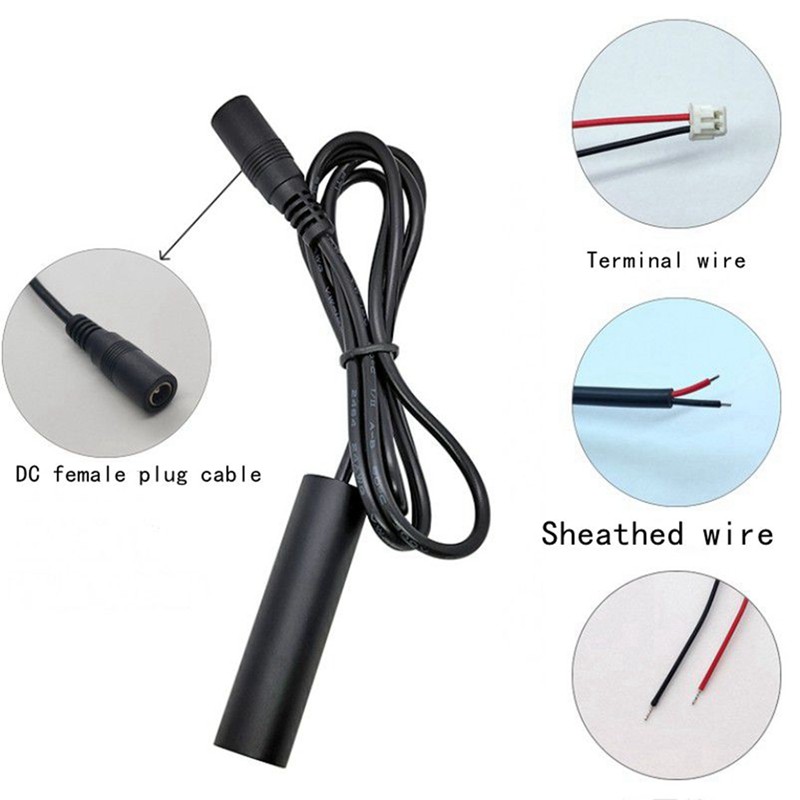

| Optional Cable | Red/Black Wire, Sheathed Wire or Terminal Wire |
| Package Content | 1 × Laser Module |
The module generates a high-brightness red laser dot suitable for long-distance positioning and alignment.
Typical optical characteristics:
The focus can be optimized according to the customer's required working distance to achieve the best spot size and beam quality.
Actual working distance and visibility may vary depending on ambient light, target surface, atmospheric conditions and detector or viewer sensitivity.

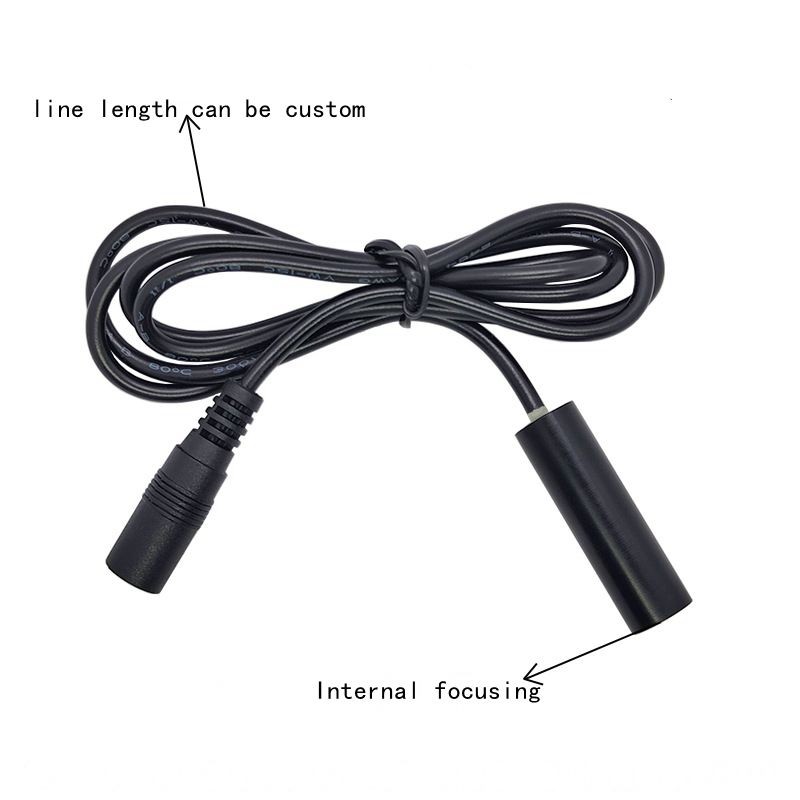

The standard configuration provides adjustable focus, allowing the laser spot to be optimized for different working distances.
Fixed-focus configurations can also be supplied for applications requiring a predetermined working distance and stable optical setup.
The standard module uses anACC control circuitfor stable operation.
Electrical specifications:
In addition to 650nm, Photex Laser can customize:
Other wavelengths can be evaluated according to project requirements.
Standard configuration:
Optional configurations:
Photex Laser provides customized high-power red dot laser modules for positioning, alignment, measurement, inspection and industrial OEM applications.
