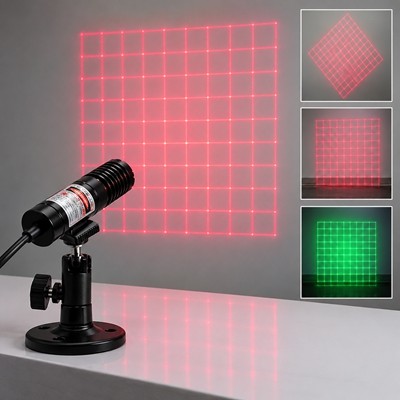

100 Grid Laser Module – 10×10 Laser Grid Projector 39.62°

Product Overview

Photex Laser manufactures100 Grid Laser Modulesdesigned for industrial positioning,

machine vision, optical research and laser projection applications.

Featuring a39.62° projection angle, the module generates a 10×10 laser grid pattern

with 100 individual cells, providing clear geometric references for alignment,

calibration and experimental applications.

Available in650nm red, 520nm green and 450nm blue,

the laser grid generator features adjustable line width,

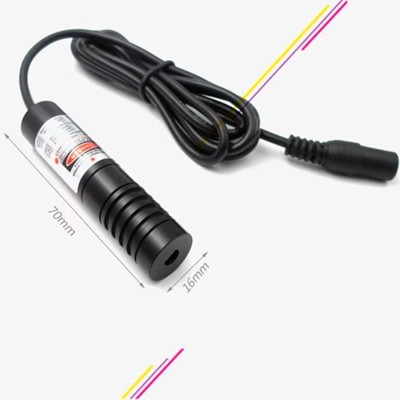

stable semiconductor laser output and a compact Ø16×70mm aluminum housing.

Photex Laser supports OEM/ODM customization for wavelength, optical power,

projection angle, grid pattern, housing dimensions and electrical configurations.

Key Features

• 100-Cell Grid Projection:10×10 uniform grid pattern.

• 39.62° Projection Angle:Wide-angle grid coverage.

• RGB Laser Options:650nm red, 520nm green and 450nm blue.

• Adjustable Line Width:Flexible optical adjustment for different applications.

• Compact Design:Ø16×70mm aluminum housing.

• Stable Laser Output:Semiconductor laser technology for continuous operation.

• Wide Voltage Input:DC 2.8–5.2V.

• Efficient Heat Dissipation:Durable aluminum housing.

• OEM/ODM Customization:Flexible optical and mechanical specifications.

The 39.62° laser grid module generates a 10×10 projection pattern. Grid dimensions vary with the working distance.

Projection Characteristics:

• 100 individual grid cells

• Clear geometric grid pattern

• Adjustable laser line width

• Grid coverage increases with projection distance

• Suitable for optical reference and experimental applications

Projection dimensions are nominal values based on the specified optical configuration.

Available Laser Wavelengths

650nm Red 100 Grid Laser Module

• Wavelength: 650nm

• Output Power: 100mW

• Grid Pattern: 10×10

• Projection Angle: 39.62°

Suitable for industrial alignment, laboratory research and laser grid reference projection.

520nm Green 100 Grid Laser Module

• Wavelength: 520nm

• Output Power: 50mW

• Grid Pattern: 10×10

• Projection Angle: 39.62°

Provides a highly visible green grid pattern for machine positioning, optical experiments and equipment alignment.

450nm Blue 100 Grid Laser Module

• Wavelength: 450nm

• Output Power: 100mW

• Grid Pattern: 10×10

• Projection Angle: 39.62°

Designed for specialized optical research, blue laser projection and industrial experimental systems.

Industrial Applications

1. Machine Vision & Optical Inspection

Projects geometric grid references for camera calibration experiments, optical alignment and image analysis.

2. Industrial Positioning

Provides grid reference lines for equipment alignment, assembly positioning and manufacturing applications.

3. Optical Research & Laboratory Experiments

Suitable for laser projection studies, geometric measurements and optical system development.

4. Automation & Manufacturing

Supports visual reference positioning, equipment setup and industrial process development.

5. Laser Projection & Pattern Testing

Used for grid pattern evaluation, optical demonstrations and specialized laser projection systems.

Housing & Electrical Design

The laser module features a compact aluminum housing with a protective coating.

Design Advantages:

• Efficient heat dissipation

• Durable metal construction

• Compact equipment integration

• Stable laser diode operation

• Intelligent driver circuit

• DC 2.8–5.2V power supply compatibility

• Custom cable and connector configurations

The module is designed for continuous operation under suitable power supply and thermal conditions.

OEM/ODM Customization

Photex Laser offers customized laser grid solutions according to customer requirements.

Customization Options:

• Laser wavelength: Red / Green / Blue

• Output power

• Grid pattern and projection angle

• Laser line width

• Housing dimensions

• Operating voltage

• Cable length and connector type

• Working distance and projection requirements

Customers can provide technical drawings, optical specifications or application details for evaluation.

Why Choose Photex Laser?

• Professional laser module manufacturer

• Multiple wavelength and output power options

• Custom optical pattern development

• Compact industrial laser designs

• OEM/ODM manufacturing support

• Sample evaluation and bulk order service

• Technical assistance for laser integration

Frequently Asked Questions

Q1: How many cells does the laser grid project?

A: The standard module projects a 10×10 pattern containing 100 individual cells.

Q2: What is the projection angle?

A: The standard projection angle is 39.62°.

Q3: Which laser colors are available?

A: Red 650nm/100mW, green 520nm/50mW and blue 450nm/100mW.

Q4: Can the grid line width be adjusted?

A: Yes. The laser grid line width is adjustable according to the optical configuration.

Q5: Can the housing and operating voltage be customized?

A: Yes. Photex Laser supports customized housing dimensions, electrical configurations and cable assemblies.

Q6: Do you support sample orders?

A: Yes. Samples are available for evaluation before bulk orders.

Request a Quote

Looking for a reliable100 Grid Laser Module Manufacturer?

Photex Laser provides red, green and blue 10×10 laser grid projectors for industrial positioning, machine vision and optical research.

Contact Photex Laser with your required wavelength, output power,

projection distance, quantity and customization details for a competitive quotation.
