The650nm 20mW Red Cross Line Laser Moduleis a compact laser
projection module designed for applications requiring a clearly defined red cross-line pattern.

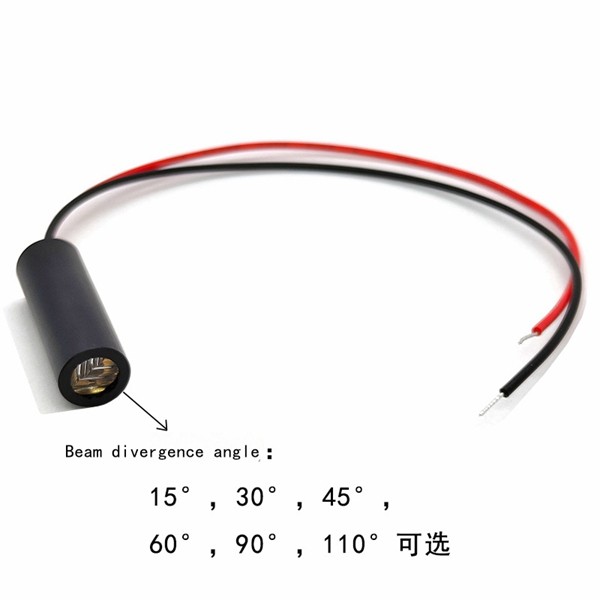

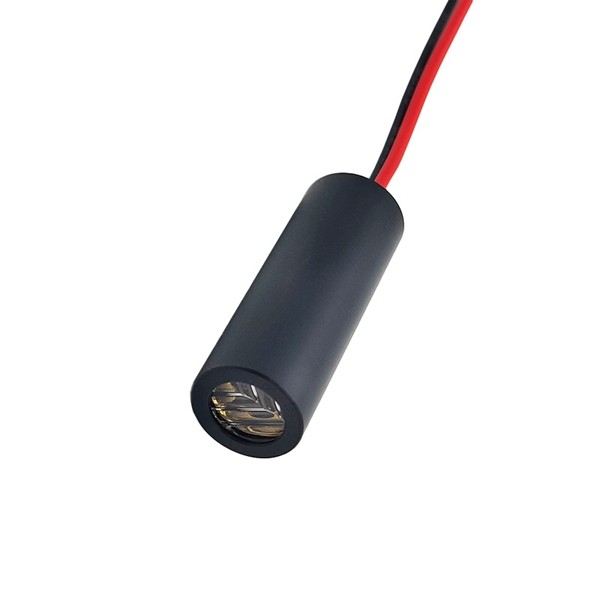

Featuring a9×26mm cylindrical full-metal housing, fixed-focus optical design
and aviation aluminum construction, this compact red cross laser module
is suitable for integration into optical instruments, alignment systems, positioning equipment and industrial devices.
The module provides a650nm red laser outputwith a rated output power of less than 20mW.
The red laser wavelength provides a visible cross-line projection
for equipment requiring visual alignment and positioning.

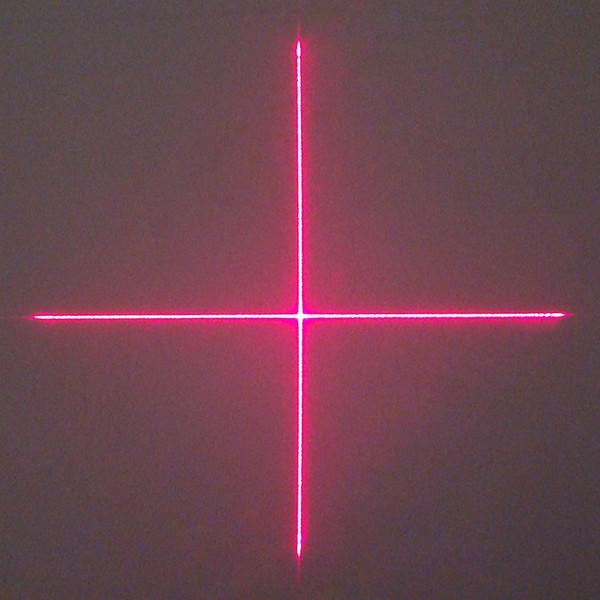

The module generates ared cross-line laser pattern, combining horizontal
and vertical laser lines in a single compact module.
The cross-line output is suitable for applications where two-dimensional alignment or positioning is required.

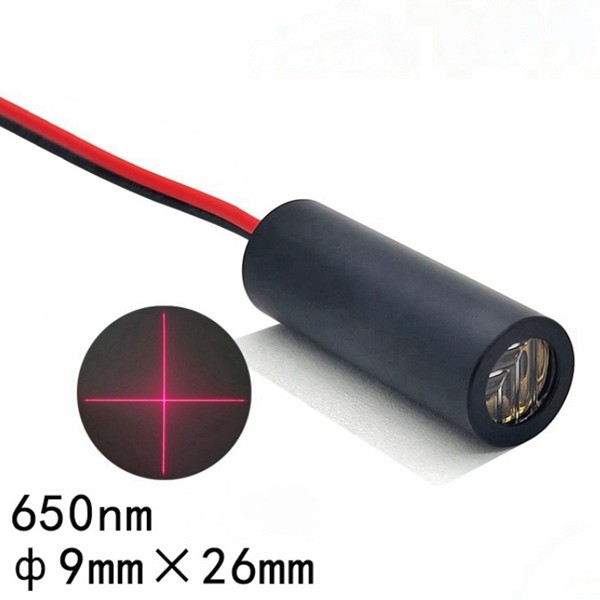

The module uses aØ9×26mm cylindrical housing, providing a compact form factor for equipment integration.
Its small diameter makes it suitable for applications with limited installation space.
This model uses afixed-focus optical design.
Fixed focus can provide a predefined projection configuration for equipment
where the working distance and optical setup are determined during system design.
The housing is manufactured fromaviation aluminum, featuring a full-metal construction.
The compact metal housing provides a practical mechanical structure for
integration into customized optical and industrial equipment.
| Parameter | Specification |
|---|---|
| Wavelength | 650nm |
| Maximum Optical Output Power | 20mW |
| Rated Output Power | <20mW |
| Rated Current | <100mA |
| Laser Color | Red |
| Beam Shape | Cross Line |
| Focus | Fixed Focus |
| Housing Size | Ø9 × 26mm |
| Housing Shape | Cylindrical |
| Housing Material | Aviation Aluminum |
| Housing Construction | Full Metal |
| Port Quantity | 1 Port |
| Accessory Type | Laser Head |
| Certification | RoHS Compliant |
| Custom Size | Available |
This 650nm red cross line laser modulecan be integrated into a variety of optical and industrial systems.
Typical applications include:
We provide customized650nm red cross laser modulesfor OEM and ODM projects.
Available customization options include:
Custom housing sizes are also available for projects requiring specific installation dimensions.
Customers can send us their requiredwavelength, power, housing dimensions
and working distancefor technical evaluation.
The combination of a9×26mm compact housing,
fixed-focus optical design and cross-line output makes this laser module suitable
for equipment manufacturers looking for a small integrated red laser source.
The full-metal aviation aluminum housing also provides a compact mechanical structure for OEM integration.
The product is specified asRoHS compliant, supporting applications where
RoHS requirements are part of the equipment or purchasing specification.
Product specifications should be confirmed according to the final
customized configuration and application requirements.
Q1: What is the wavelength of this red cross laser module?
A: The standard wavelength is 650nm.
Q2: What is the output power?
A: The rated optical output power is less than 20mW.
Q3: What type of laser pattern does it produce?
A: It produces a red cross-line pattern consisting of horizontal and vertical laser lines.
Q4: Is the focus adjustable?
A: This model uses a fixed-focus design.
Q5: What is the module size?
A: The standard size is Ø9×26mm.
Q6: What material is the housing made from?
A: The housing uses aviation aluminum with a full-metal construction.
Q7: Can the housing size be customized?
A: Yes. Custom housing dimensions are available for OEM projects.
Q8: Is the module RoHS compliant?
A: Yes, the product specification states compliance with RoHS standards.
Q9: Can you customize the laser module?
A: Yes. Wavelength, output power, dimensions, focus, cable, connector and other specifications can be customized.
