The520nm 10mW Green Line Laser Moduleis a compact laser projection solution
designed for alignment, positioning, leveling and optical equipment integration.

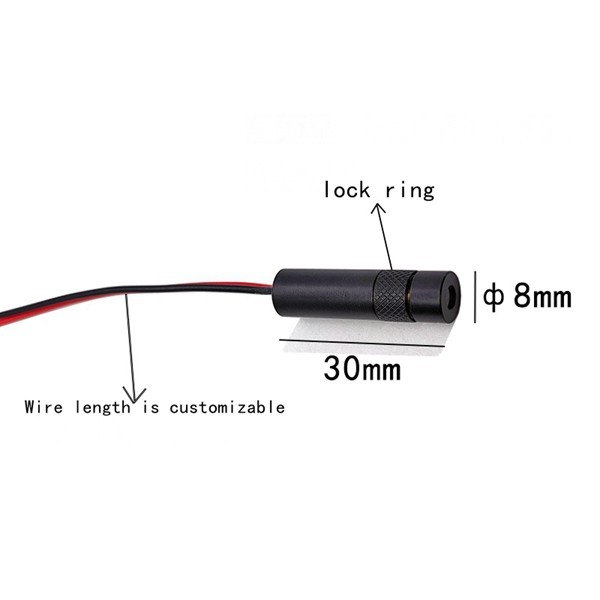

Featuring an8×30mm cylindrical housing, external focus adjustment and a focus lock ring,
this green line laser module allows the projected line to be optimized for
different working distances and application requirements.
The line thickness can be adjusted, while multiple divergence angles from15° to 130°
are available. The standard configuration uses a90° divergence angle.
The module provides a520nm green laser outputwith optical power below 10mW.
Other output power options can be customized according to customer requirements.

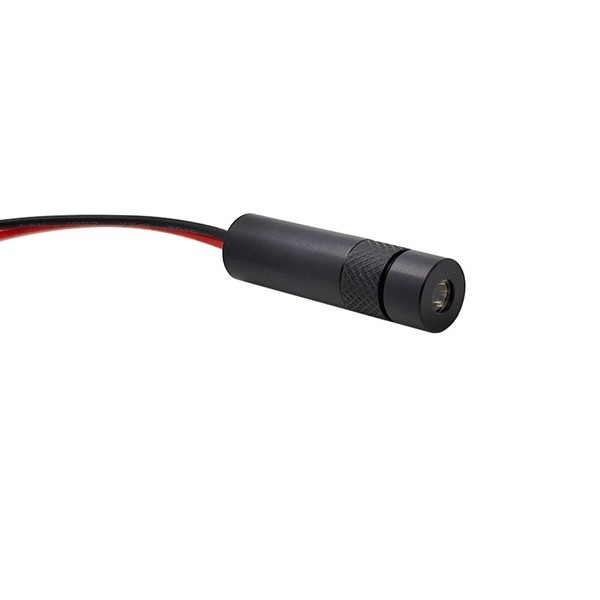

The8×30mm compact cylindrical designmakes the module suitable for integration
into space-limited optical instruments, alignment systems and industrial equipment.

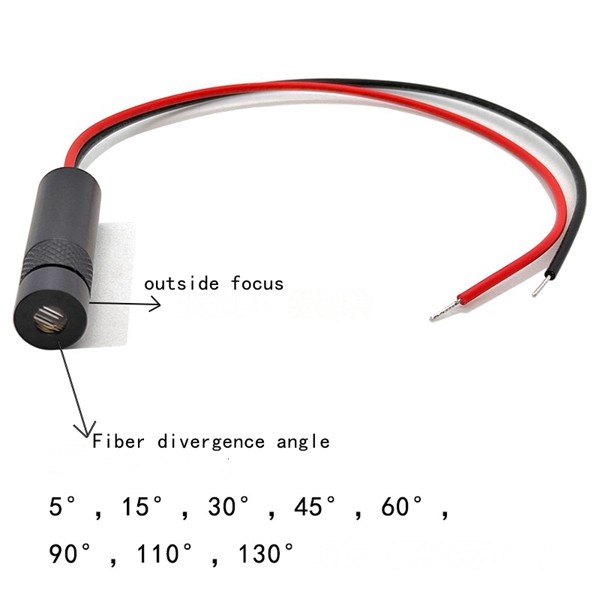

An external focus mechanism allows convenient adjustment of the projected green laser line.
The integratedfocus lock ringhelps secure the selected focus position during equipment integration and operation.
The projected laser beam is aline-shaped output, and the line thickness can be adjusted according to the required working distance and application.
Different beam divergence options are available:
15° / 30° / 45° / 60° / 90° / 110° / 130°
The90° version is the default configuration.
This allows the green line laser module to be adapted to
different projection widths and installation requirements.
| Parameter | Specification |
|---|---|
| Wavelength | 520nm |
| Optical Output Power | <10mW |
| Housing Size | 8×30mm |
| Laser Color | Green |
| Beam Shape | Line |
| Line Thickness | Adjustable |
| Focusing | External Focus |
| Focus Lock | External Focus Lock Ring |
| Divergence Angle | 15° / 30° / 45° / 60° / 90° / 110° / 130° |
| Default Angle | 90° |
| Reference Range | <3m |
| Customization | Available |
Actual laser visibility, line thickness and projection distance may vary according
to ambient lighting, focusing position and operating conditions.
The compact520nm green line laser modulecan be integrated into a variety of optical and industrial systems.
Typical applications include:
The compact size and adjustable optical design make this module suitable for
OEM equipment where installation space is limited.
Customers can select the requireddivergence angle, focus configuration and
output poweraccording to the actual equipment design.
For special applications, our engineering team can review customer drawings and technical requirements.
We provide customized520nm green laser modulesfor different equipment requirements.
Customization options include:
Send us your requiredwavelength, power, housing size,
projection distance and divergence anglefor a customized solution.
Compact Design
8×30mm housing for space-limited equipment.
Adjustable Line Output
Line thickness can be optimized according to application requirements.
Flexible Beam Angle
Seven divergence angle options from 15° to 130°.
External Focus Adjustment
Convenient focus adjustment with an external focus lock ring.
OEM/ODM Support
Customized optical, mechanical and electrical specifications available.
Q1: What wavelength is this green line laser?
A: The standard wavelength is 520nm.
Q2: What is the optical output power?
A: The standard optical output power is less than 10mW. Other power levels can be customized.
Q3: Is the laser line thickness adjustable?
A: Yes. The line thickness can be adjusted according to the application and focusing distance.
Q4: What divergence angles are available?
A: 15°, 30°, 45°, 60°, 90°, 110° and 130°. The standard configuration is 90°.
Q5: What is the module size?
A: The standard housing is 8×30mm.
Q6: Does it have an external focus lock ring?
A: Yes. The module uses an external focus adjustment structure with a focus lock ring.
Q7: Can you customize the module?
A: Yes. We support OEM/ODM customization for wavelength, power, housing,
beam angle, focus, cable, connector and other specifications.
Q8: What is the reference working range?
A: The reference range is less than 3 meters indoors.
Ambient light can affect laser-line visibility and the actual working distance.
