650nm 5mW Adjustable Focus Red Laser Module
The650nm 5mW Adjustable Focus Red Laser Moduleis a compact visible
red laser module designed for positioning, alignment,
measurement and optical applications.

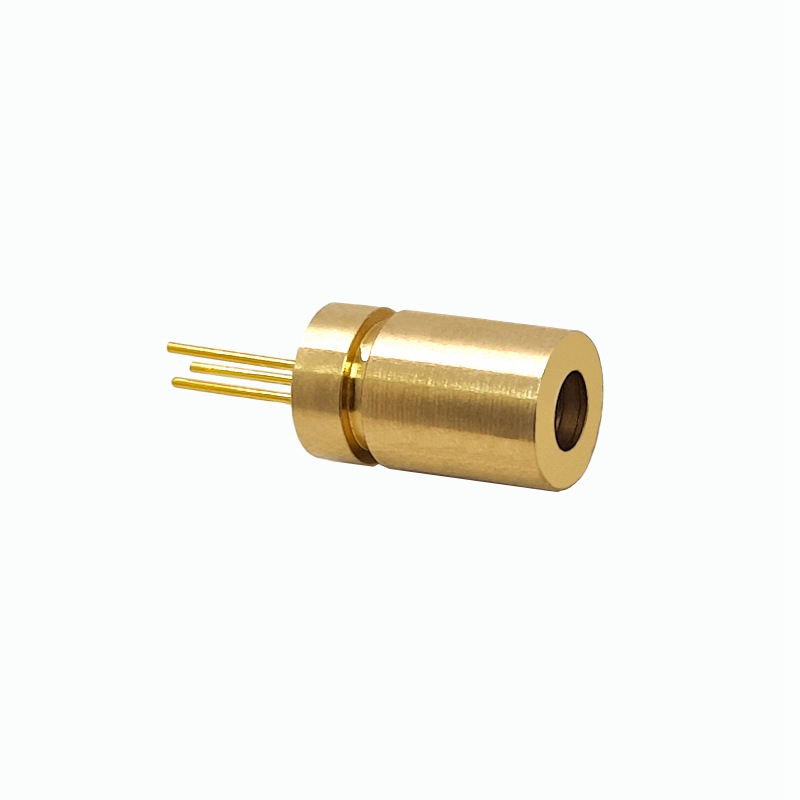

Featuring a6×10mm compact housing, 3-pin direct-insertion design and adjustable focus,
this laser module provides a clear and stable red laser spot.
The focus can be adjusted according to the required working distance
for improved spot definition and positioning accuracy.
The module uses anAPC control circuitand requires an external laser driver board.
It operates from2.1–2.5VDCwith a working current of less than 20mA.
| Parameter | Specification |
|---|---|
| Product Model | S626505D |
| Laser Color | Red |
| Wavelength | 650nm ±10nm |
| Output Power | <5mW |
| Laser Type | Visible Red Laser |
| Laser Pattern | Dot |
| Focus | Adjustable / Fixed Optional |
| Housing Size | Φ6 × 10mm |
| Housing Material | Copper |
| Housing Color | Brass / Black Optional |
| Control Circuit | APC |
| Driver | External Driver Required |
| Operating Voltage | 2.1–2.5VDC |
| Working Current | <20mA |
| Working Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |
| Safety Class | Class IIIA |
| Connection | 3-Pin Direct Insertion |
| Customization | Wavelength & Power Available |
The adjustable optical structure allows the laser spot to be focused according to the required working distance.
This makes the module suitable for applications where different projection distances or spot sizes are required.
Focus Options:

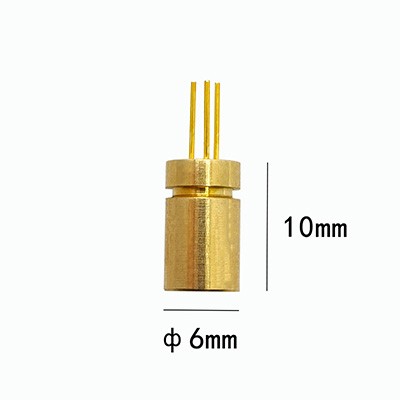

With a compact6×10mm cylindrical housing, the module can be integrated into space-limited equipment and optical systems.
The small form factor is suitable for:
The module produces a visible650nm red laser beamwith an output power below 5mW.
The red laser spot provides an easy-to-see reference point for positioning, alignment and indication applications.
The actual visible range depends on ambient lighting, target surface, working distance and installation conditions.
The module uses anAPC (Automatic Power Control) circuit designfor stable laser output.
Important:This model doesnot include an internal driver. An external compatible laser driver board is required for operation.
Please contact us to confirm driver requirements before integration.
The 650nm red laser module can be used for a wide range of optical and industrial applications, including:
We support customization for different application requirements.
Available options may include:
For special requirements, please provide yourwavelength, output power,
working distance, spot size and installation dimensionsfor evaluation.
Φ6×10mm housing for easy integration into compact equipment.
Focus can be adjusted according to the required working distance.
APC control design helps maintain stable laser output.
Working current is less than 20mA.
Designed for continuous operation with a service life of more than 10,000 hours.
Wavelength and output power can be customized according to application requirements.
The standard wavelength is650nm ±10nm, producing visible red laser light.
The standard output power isless than 5mW. Other power levels can be customized.
Yes. The standard configuration supportsadjustable focus. Fixed-focus configurations are also available.
The compact housing size isΦ6×10mm.
No. This model uses anAPC circuit and requires an external compatible laser driver board.
The operating voltage is2.1–2.5VDC.
The working current isless than 20mA.
The expected service life ismore than 10,000 hoursunder suitable operating conditions.
