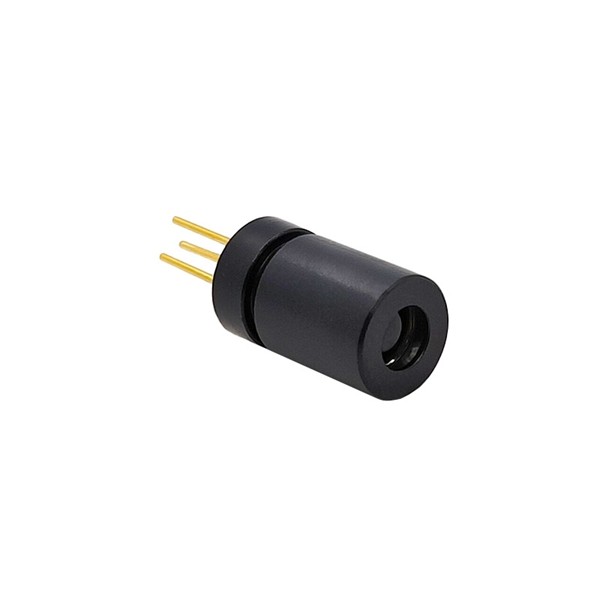

The 780nm 5mW Infrared Laser Moduleis a compact near-infrared laser source
designed for optical positioning, alignment, sensing and equipment integration.
Featuring a miniature6×10mm aviation aluminum all-metal housing,
the module is suitable for applications where installation space is limited.
The laser provides adot or oval-shaped infrared outputand supports fixed-focus
or adjustable-focus configurations.
The focusing distance can be customized according to the customer's application requirements.
The module features a3-pin direct-insertion configuration, APC circuit control and low-voltage2.1–2.5V DCoperation.
The module operates at780nm ±10nm, providing near-infrared laser output.
780nm is outside the normal visible range and is suitable for compatible infrared optical systems and equipment.
The6×10mm miniature housingis designed for compact optical and electronic equipment.
The all-metal aviation aluminum construction provides a compact and durable mechanical structure.
The module supports:
This provides flexibility for different working distances and equipment configurations.

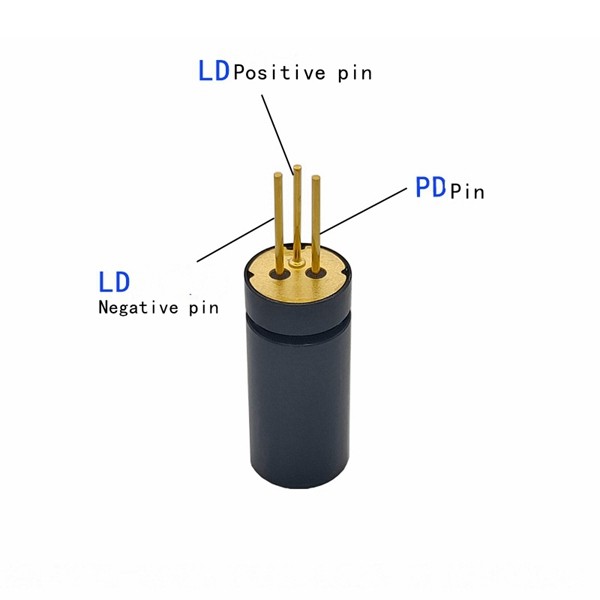

The module features a3-pin direct-insertion / through-hole configurationfor integration into compatible equipment.
This compact installation method can help reduce the space required for external connections.
The integratedAPC circuitprovides controlled laser operation.
The electrical configuration can also be customized for OEM projects.
The standard working voltage is:
2.1–2.5V DC
with a working current of:
<20mA
| Parameter | Specification |
|---|---|
| Wavelength | 780nm ±10nm |
| Laser Type | Near-Infrared |
| Output Power | <5mW |
| Output Shape | Dot / Oval |
| Housing Size | 6×10mm |
| Housing Material | Aviation Aluminum |
| Housing Construction | All-Metal |
| Surface Finish | Black Insulated Oxidation |
| Optional Housing Color | Brass |
| Focus Mode | Fixed / Adjustable |
| Focus Distance | Customer-Specified |
| Pin Configuration | 3-Pin |
| Installation | Direct Insertion / Through-Hole |
| Circuit Control | APC |
| Working Voltage | 2.1–2.5V DC |
| Working Current | <20mA |
| Indoor Range | <100m |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Service Life | >10,000 Hours |
| Safety Class | Class IIIA |
| Package | 1 × Laser Module |
The780nm Infrared Laser Modulecan be integrated into:
The miniature6×10mm sizemakes it particularly suitable for space-constrained equipment.
We provideOEM and ODM customizationfor 780nm infrared laser modules.
Available options include:
Other wavelengths can also be customized according to project requirements.
Wavelength + Output Power + Housing Size + Pin Configuration + Working Voltage + Focus Distance
Our engineering team can review your requirements and recommend a suitable configuration.
Miniature form factor for space-limited optical and electronic equipment.
Suitable for compatible infrared optical applications.
Focus can be configured according to the customer's required working distance.
Compact three-pin configuration for equipment integration.
All-metal aviation aluminum construction for compact OEM applications.
Integrated APC circuit for controlled laser operation.
Wavelength, power, size, focus and electrical specifications can be customized.
The standard wavelength is780nm ±10nm.
780nm is in thenear-infrared (NIR) rangeand is generally outside normal human visual perception.
The specified exit pupil power isless than 5mW. Other power levels can be customized.

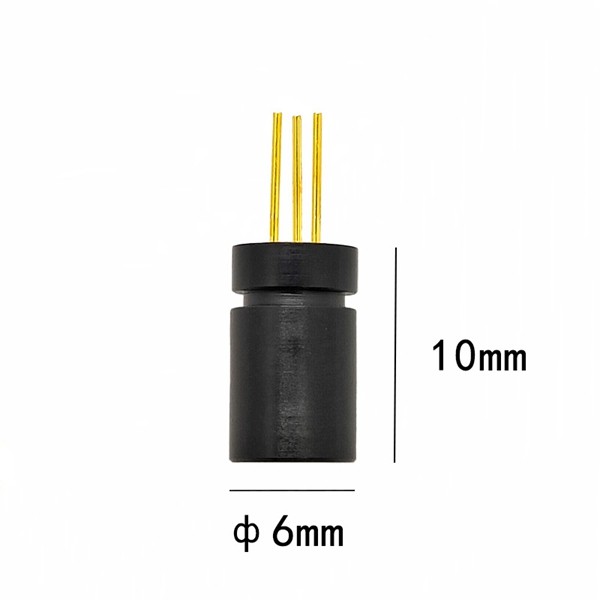

The standard size is6×10mm.
The output isdot / oval.
Yes. The module can be supplied with fixed focus or adjustable focus. Customer-specific focusing distances are available.
The standard configuration is3-pin.
The standard working voltage is2.1–2.5V DC.
The working current isless than 20mA.
Yes. The module incorporates anAPC circuit.
Yes. Other wavelengths and output powers can be customized according to application requirements.
Yes. We provideOEM/ODM customizationfor wavelength, power, housing, focus, pin configuration and electrical specifications.
