905nm Narrow Bandpass Reflective Optical Filter
Key Optical Performance

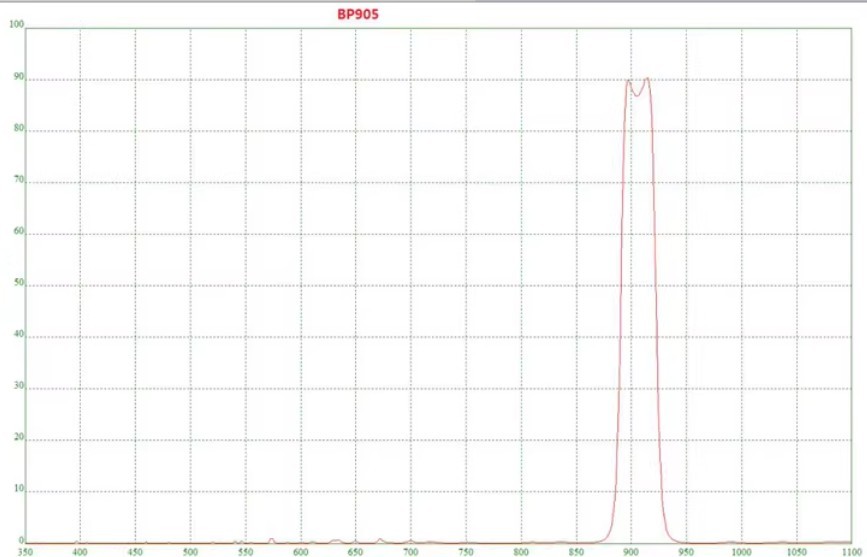

• Center Wavelength (CWL): 905 nm
• Bandwidth (FWHM): 30 nm for precise wavelength selection
• High Blocking Depth: OD4 to effectively suppress out-of-band light
• Reflective Filter Design for improved optical efficiency and stability
Material & Coating Technology
• Substrate: Optical Glass
• Coating: Multilayer Dielectric Optical Coating
• Lens Type: Coated Optical Filter Lens
• Designed for excellent durability and long-term wavelength stability
Customization Options
• Custom Wavelengths Available (other NIR bands supported)
• Custom Sizes and Shapes Available to fit different optical systems
• Optional thicknesses and bandwidths upon request
Mechanical & Environmental Properties
• High surface quality suitable for precision optical assemblies
• Stable performance under industrial operating conditions
Typical Applications
• LiDAR and Ranging Systems (905 nm)
• Laser Detection and Optical Sensing
• Machine vision, imaging, and industrial inspection
