Dual-Aperture Multi-Pattern Laser Module

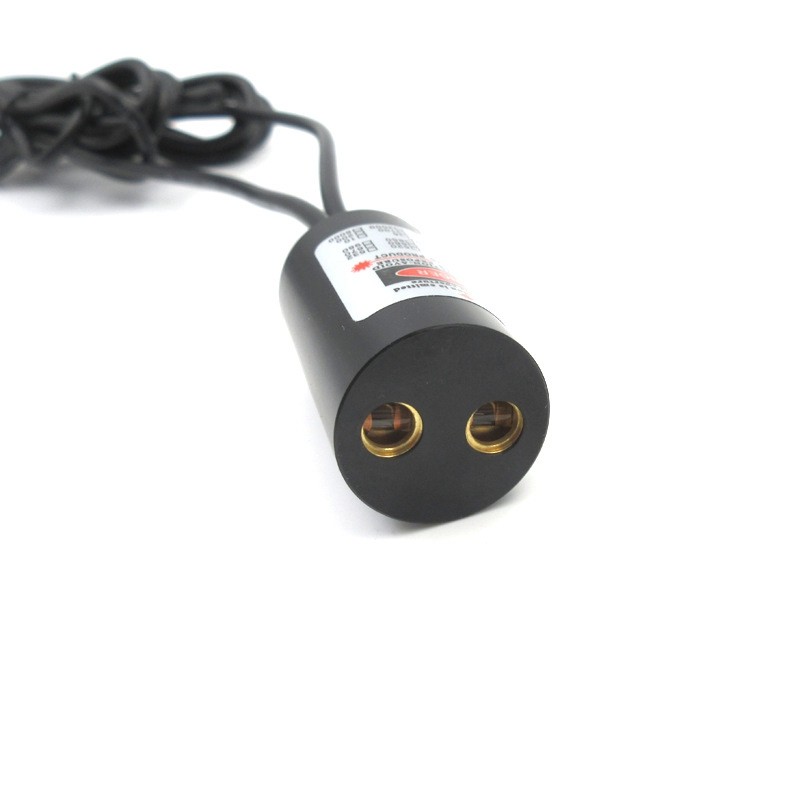

The Dual-Aperture Multi-Pattern Laser Moduleis a specialized positioning laser designed with two independent optical outputs. Depending on the optical configuration, the module can project:

• Two laser dots
• Two parallel laser lines
• Two perpendicular lines forming a crosshair effect

It is available in658nm red, 505nm green and 450nm blueversions, making it suitable for industrial positioning, machine alignment, production-line guidance, optical inspection and special marking applications.

Photex Laser supports OEM/ODM customization for wavelength, output power, beam pattern, operating voltage, housing structure, cable configuration and mounting accessories.

Key Features

• Dual-aperture optical output
• Two-dot projection option
• Two-parallel-line projection option
• Perpendicular-line / crosshair projection option
• Red / green / blue wavelength options
• Stable semiconductor laser output
• Wide DC 2.8–5.2V operating range
• Universal mounting support
• Matching power adapter supplied
• OEM / ODM customization available

Optical Pattern Options

Dual Dot Pattern

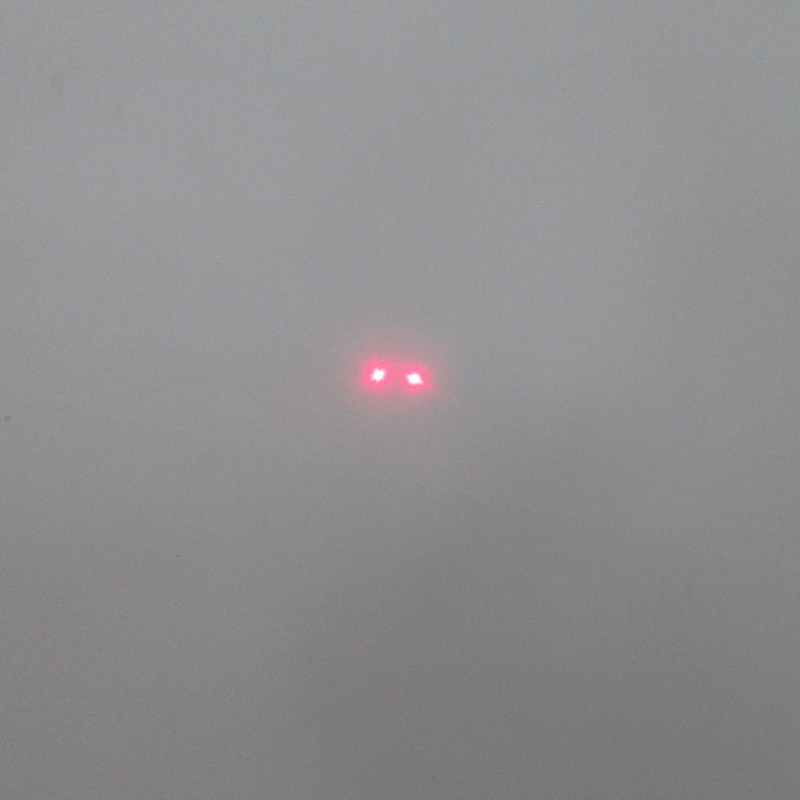

Projects two independent laser dots for dual-point positioning and alignment.

Dual Parallel Line Pattern

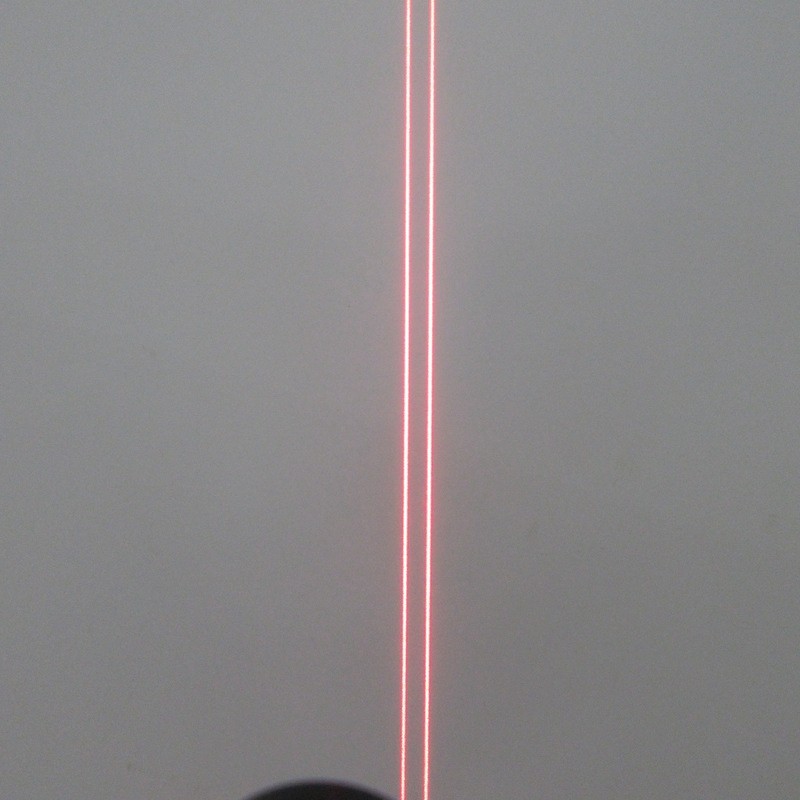

Projects two parallel laser lines for spacing reference, alignment and industrial positioning.

Perpendicular Crosshair Pattern

Projects two perpendicular laser lines to create a cross-style positioning reference.

Red Laser Models

Dual Dot Red Laser Module

• Wavelength: 658nm + 658nm
• Output Power: 100mW + 100mW
• Pattern: Two Dots

Dual Parallel Line Red Laser Module

• Wavelength: 658nm + 658nm
• Output Power: 100mW + 100mW
• Pattern: Two Parallel Lines

Dual Perpendicular Line Red Laser Module

• Wavelength: 658nm + 658nm
• Output Power: 100mW + 100mW
• Pattern: Perpendicular Lines / Crosshair

Electrical Parameters

• Operating Voltage: DC 2.8–5.2V
• Working Current: ≤300mA
• Voltage customization available

Green Laser Models

Dual Dot Green Laser Module

• Wavelength: 505nm + 505nm
• Output Power: 35mW + 35mW
• Pattern: Two Dots

Dual Parallel Line Green Laser Module

• Wavelength: 505nm + 505nm
• Output Power: 35mW + 35mW
• Pattern: Two Parallel Lines

Dual Perpendicular Line Green Laser Module

• Wavelength: 505nm + 505nm
• Output Power: 35mW + 35mW
• Pattern: Perpendicular Lines / Crosshair

Electrical Parameters

• Operating Voltage: DC 2.8–5.2V
• Working Current: ≤600mA
• Voltage customization available

Blue Laser Models

Dual Dot Blue Laser Module

• Wavelength: 450nm + 450nm
• Output Power: 80mW + 80mW
• Pattern: Two Dots

Dual Parallel Line Blue Laser Module

• Wavelength: 450nm + 450nm
• Output Power: 80mW + 80mW
• Pattern: Two Parallel Lines

Dual Perpendicular Line Blue Laser Module

• Wavelength: 450nm + 450nm
• Output Power: 80mW + 80mW
• Pattern: Perpendicular Lines / Crosshair

Electrical Parameters

• Operating Voltage: DC 2.8–5.2V
• Working Current: ≤360mA
• Voltage customization available

Standard Package

The complete set can include:

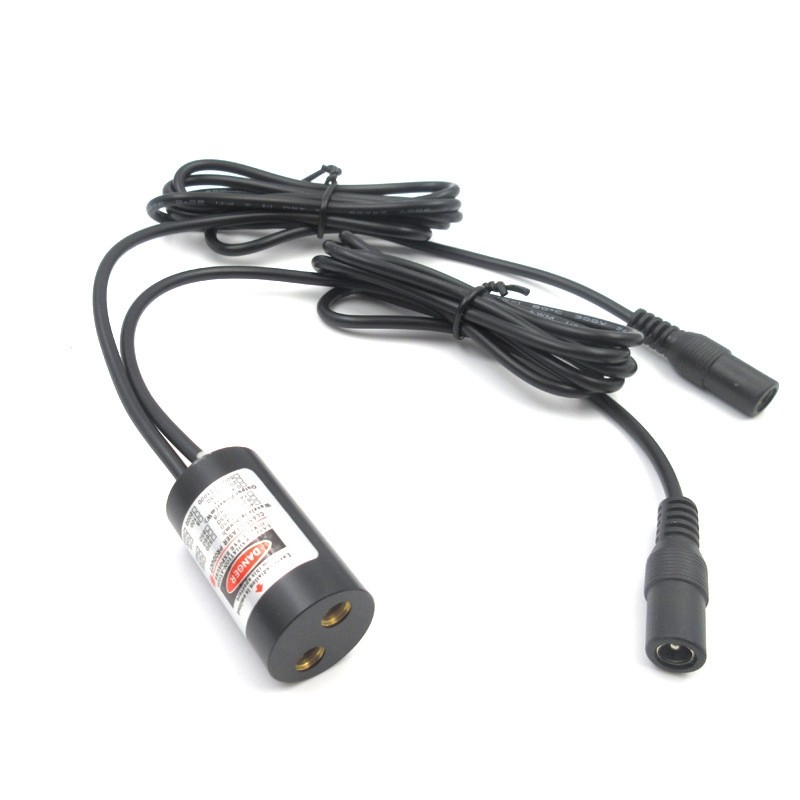

• 1 × Dual-Aperture Laser Module
• 1 × Universal Mounting Support
• 1 × Matching Power Adapter
• 1 × One-to-Two Plug Cable
• Inline dimmer for selected green and blue versions

Different wavelength and power configurations are matched with the appropriate power supply.

Applications

Industrial Positioning

Suitable for:

• Equipment alignment
• Dual-point reference positioning
• Assembly guidance
• Production-line calibration

Machine Vision

Used for:

• Camera alignment
• Reference line projection
• Optical inspection
• Automated positioning

Manufacturing & Assembly

Suitable for:

• Parallel spacing reference
• Centerline positioning
• Cross-reference alignment
• Component installation

Measurement & Calibration

Applicable to:

• Geometric reference
• Dimensional comparison
• Alignment verification
• Optical experiments

Photex Laser provides customized dual-dot, dual-line and crosshair laser modules for industrial positioning, alignment, inspection and machine vision applications.
