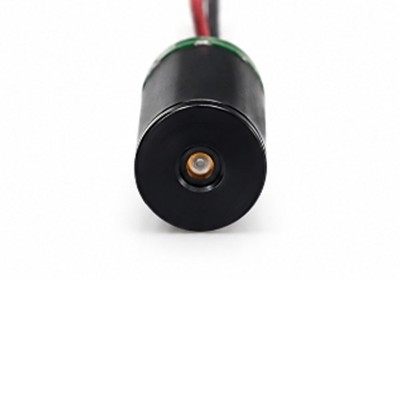

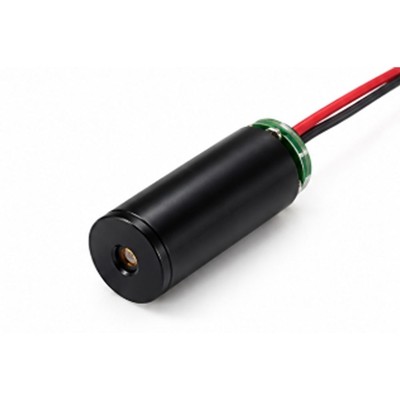

Realpoo Optics offers customizable red and green multi-beam laser modules
designed to generate multiple laser spots from a compact optical assembly.
Available wavelength options include 635–665nm red and 505–535nm green.
The laser modules support 2–5 spot configurations, adjustable output power specifications,
and customized optical structures for different industrial applications.
With flexible optical designs and OEM/ODM manufacturing support,
our multi-beam laser modules can be adapted to customer drawings,
equipment integration requirements, and specific projection patterns.
Red & Green Wavelengths:635–665nm red and 505–535nm green options.

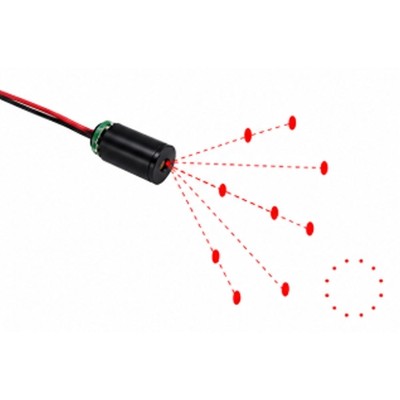

Multi-Spot Projection:2–5 laser spots, depending on optical configuration.
Custom Output Power:0.2–200mW range, subject to configuration.
Flexible Voltage Options:DC 2–30V, customized for application requirements.
Precision Optical Design:Angular accuracy ≤40″.

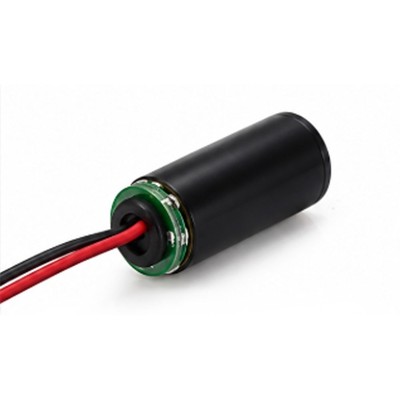

Compact Integration:Customized housing, optical assembly, and lead wires.
OEM/ODM Support:Customized laser patterns and technical specifications.
| Parameter | Specification |
|---|---|
| Product Type | Multi-Beam Laser Module |
| Laser Pattern | Multi-Dot / Multi-Spot |
| Red Wavelength | 635–665nm |
| Green Wavelength | 505–535nm |
| Output Power | 0.2–200mW, customizable |
| Operating Voltage | DC 2–30V, customizable |
| Operating Current | 10–150mA, customizable |
| Number of Spots | 2–5 |
| Spot Size | ≤4mm at 5m |
| Angular Accuracy | ≤40″ |
| Concentricity | ≤Φ60mm at 10m |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +80°C |
| Optical Lens | Glass / Metal Optical Lens Options |
| Collimation Lens | Optical Glass / PMMA Options |
| Housing | Custom Available |
| Lead Wire | Custom Available |
| OEM / ODM | Supported |
Note: Specifications represent available design ranges and options,
not necessarily one simultaneous operating configuration.
Final parameters depend on the selected laser diode, optical assembly, and application requirements.
Under a 25°C room-temperature test environment:
Red Laser: Power variation below 15%.
Green Laser: Power variation below 30%.
Under the specified room-temperature test condition, following a 1°C temperature
change and a recovery period of up to 2 seconds, angular precision variation is specified within ±30″.
Actual performance should be verified against the final customized module configuration and test conditions.
Realpoo Optics supports customization according to customer drawings and technical requirements.
Available customization options:
Laser Wavelength: Red / Green
Laser Power: Customized
Spot Quantity: 2–5
Laser Pattern: Custom Optical Design
Operating Voltage: Customized
Lens Material: Optical Glass / PMMA Options
Housing Size: According to Drawings
Lead Wire Length: Customized
Optical Assembly: OEM / ODM Available
Please provide your required wavelength, output power, projection distance,
pattern drawing, operating voltage, and quantity for technical evaluation.
Multi-spot laser projection can provide visible reference points for positioning, alignment, and equipment setup.
Customized dot patterns can be integrated into machine vision and
optical measurement systems, subject to calibration and system design.
Multiple projected reference spots can assist in fixture positioning,
automated machinery, and production equipment integration.
Custom multi-beam laser assemblies can support optical testing,
experimental setups, and prototype development.
Optical pattern configurations can be developed for specialized projection and visualization requirements.
Professional Laser Module Manufacturing
Red & Green Laser Options
Customized Optical Pattern Design
OEM / ODM Manufacturing Support
Technical Drawing Evaluation
Sample and Production Order Support
International Shipping Options
Q1: Can you customize the number of laser dots?
Yes. The available configuration range includes 2–5 laser spots.
Other pattern requirements can be evaluated according to the optical design.
Q2: Do you offer both red and green laser modules?
Yes. Red 635–665nm and green 505–535nm wavelength options are available.
Q3: Can the output power be customized?
Yes. The specified product range is 0.2–200mW,
depending on wavelength, diode selection, and optical configuration.
Q4: Can you customize the module housing?
Yes. Housing dimensions, optical structures, and lead wires can be evaluated according to customer drawings.
Q5: Can we order samples before bulk production?
Please send your technical requirements and estimated quantity.
Our team can evaluate the suitable sample configuration.
Looking for a reliable multi-beam laser module manufacturer?
ContactChangchun Realpoo Photoelectric Co., Ltd.
for customized red and green laser modules.
Send us your wavelength, output power, number of laser dots,
projection distance, operating voltage, and required quantity.
