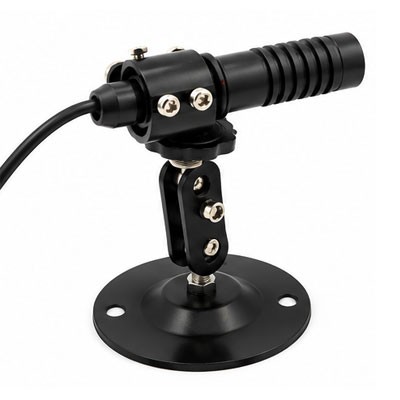

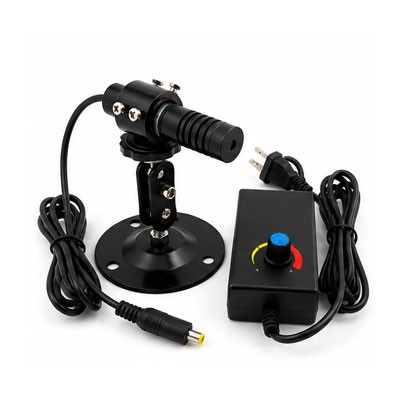

650nm 100mW Red Laser Module Dot Line Cross (Ø26×110mm)
The650nm 100mW Red Laser Moduleis a high-brightness semiconductor laser
designed for industrial positioning, machine alignment, optical measurement and customized laser equipment.
Featuring a compactØ26×110mm aluminum housing, the module supports red dot,
line and cross-line projection with optional beam angles from 5° to 120°, depending on the optical configuration.
The standard version operates at650nm with 100mW optical output and DC 2.8–5.2V input.
Its adjustable optical design and durable housing make it suitable for OEM industrial equipment integration.
650nm visible red laser output
100mW optical power
Red dot / line / cross beam options
Adjustable spot size and line width
Optional beam angles: 5°–120°
DC 2.8–5.2V operating voltage
Working current ≤200mA
Standard Ø26×110mm housing
Ø22×110mm / Ø25×110mm optional sizes
Aviation aluminum construction
Intelligent driver circuit
Designed for continuous operation
OEM / ODM customization available
| Parameter | Specification |
|---|---|
| Product Type | Red Laser Module |
| Wavelength | 650nm |
| Output Power | 100mW |
| Laser Color | Visible Red |
| Beam Pattern | Dot / Line / Cross |
| Spot Size / Line Width | Approx. 0.4mm to Several Centimeters |
| Beam Angle | 5°–120° Optional |
| Standard Size | Ø26×110mm |
| Optional Sizes | Ø22×110mm / Ø25×110mm |
| Housing Material | Aviation Aluminum |
| Installation Method | Insert Type |
| Operating Voltage | DC 2.8–5.2V |
| Working Current | ≤200mA |
| Driver | Intelligent Driver Circuit |
| Working Distance | Custom Available |
| Optical Adjustment | Custom Available |
| OEM / ODM | Supported |
The module uses a 650nm semiconductor laser diode to generate a visible red beam for positioning, alignment and indication applications.
Its 100mW optical output provides a red reference beam suitable for integration into industrial optical equipment.
Depending on the selected optical lens, the module supports:
Red Dot:Visible reference point for positioning

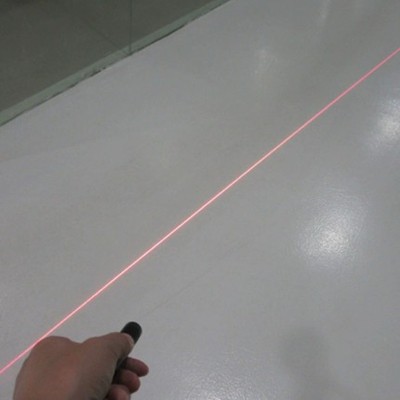

Red Line:Line projection for alignment and marking
Red Cross:Cross-line projection for equipment positioning
Custom Pattern:Available according to project requirements
Spot size, line width and projection angle can be customized for different working distances.
The aviation aluminum housing features an insulating surface treatment and an internal thermal management structure.
Key benefits include:
Heat dissipation
Mechanical protection
Shock-resistant design
Compact equipment integration
High-temperature-resistant cable options
Industrial positioning
Machine alignment
Laser leveling equipment
Optical measurement instruments
Automation equipment
Production machinery
Inspection systems
Construction alignment
OEM laser equipment
Photex Laser provides customized laser module solutions for industrial equipment manufacturers and optical system integrators.
Available customization options:
Wavelength and output power
Dot / line / cross beam pattern
Beam angle and line width
Working distance
Operating voltage
Housing dimensions
Cable length and connector
Optical lens configuration
Professional laser module solutions
Stable semiconductor laser technology
Multiple beam pattern options
Durable aluminum housing
Flexible OEM / ODM customization
Technical support for equipment integration
Factory-direct supply
Photex Laser provides 650nm red laser modules for industrial positioning,
machine alignment, optical instruments and customized OEM laser applications.
This 100mW visible red laser requires appropriate eye protection and engineering safety controls. Avoid direct or reflected beam exposure.
Final laser classification and safety requirements should be evaluated according to the complete product configuration.
Photex Laser provides customized 650nm 100mW red laser modules with dot,
line and cross projection options (Ø26×110mm) for precision positioning, alignment, marking and industrial applications.
