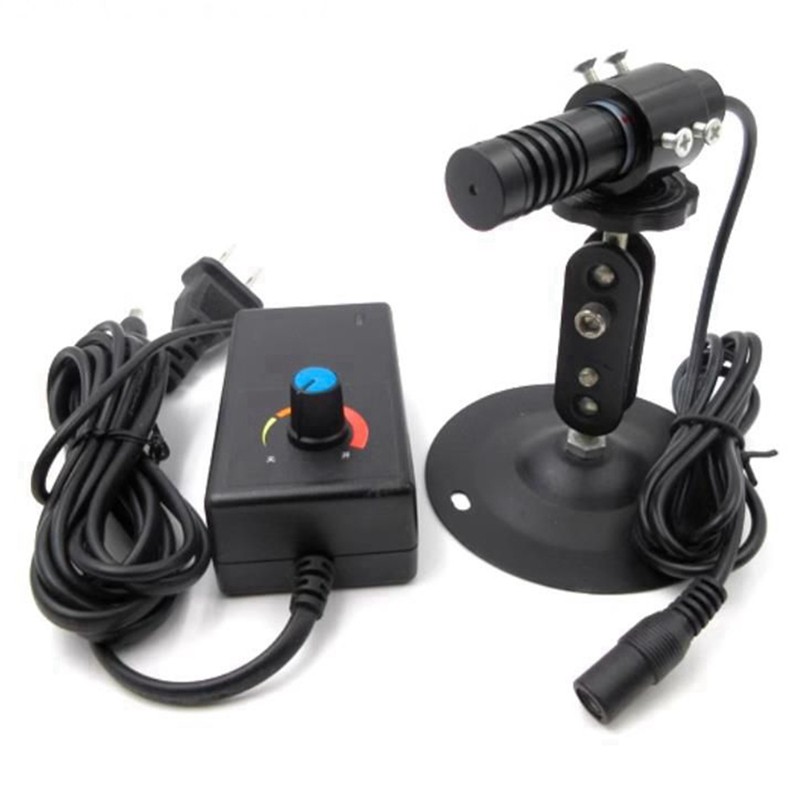

The 40.6° Rectangular Frame Cross Laser Moduleis a special-pattern semiconductor laser designed to project a rectangular frame with a centered cross reference for positioning, viewfinding, alignment and optical inspection applications.
Using a precision grating optical element, the module generates a clear rectangular pattern with a central cross. The standard configuration provides a40.6° horizontal projection angle,31.5° vertical projection angleand13° cross projection angle.
PhotexLaser offers red, green and blue wavelength options, together with customized power, working distance, housing dimensions, line thickness and special optical patterns.
| Parameter | Specification |
|---|---|
| Product Type | Rectangular Frame Cross Laser Module |
| Pattern | Rectangular Frame + Cross |
| Horizontal Projection Angle | 40.6° |
| Vertical Projection Angle | 31.5° |
| Cross Projection Angle | 13° |
| Wavelength Options | 650nm / 520nm / 450nm |
| Standard Output Power | 100mW |
| Standard Housing Size | Ø16×70mm |
| Housing Size | Customizable |
| Optical Lens | Precision Grating Plate |
| Lens Origin | Imported from Germany |
| Working Voltage | DC 2.8–5.2V |
| Other Voltages | Customizable |
| Working Current | <500mA |
| Installation Height | 0–5m |
| Line Thickness | Adjustable |
| Housing Material | Aviation Aluminum |
| Surface Treatment | Insulating Coating |
| Driver | Intelligent IC Driver |
| Cable | High-Temperature & Corrosion-Resistant DC Cable |
| Operating Mode | Continuous |
At a working distance of 0.5m:
| Projection Parameter | Typical Size |
| Rectangle Length | Approx. 370mm |
| Rectangle Width | Approx. 281mm |
| Cross Length | Approx. 115mm |
| Horizontal Angle | 40.6° |
| Vertical Angle | 31.5° |
| Cross Angle | 13° |
The projected pattern expands proportionally as the working distance increases.
The precision grating optical system provides:
The rectangular frame and center cross provide both boundary reference and center alignment in one laser pattern.
The laser line thickness can be adjusted according to working distance, visibility and application requirements.
A high-stability laser diode supports continuous operation and consistent optical output.
The aviation aluminum housing provides:
The intelligent driver supports a standard input range of:
DC 2.8–5.2V
Other voltage configurations can be customized.
Suitable for:
Used for:
Applicable to:
The rectangular frame provides a clear reference boundary for:
Common options include:
Other sizes can be customized.
Available customization:
Visible:
405nm,450nm,520nm,532nm,635nm,650nm,670nm,685nm
Infrared:
780nm,808nm,830nm,850nm,905nm,980nm
Photex Laser can also customize:
Photex Laser provides customized rectangular frame, crosshair and structured-light laser modules for positioning, viewfinding, machine vision and industrial optical applications.
