The 635nm Shoe Machine Multi-Line Positioning Laser Moduleis a special-pattern semiconductor laser designed for shoe manufacturing equipment, industrial alignment and production-line positioning.

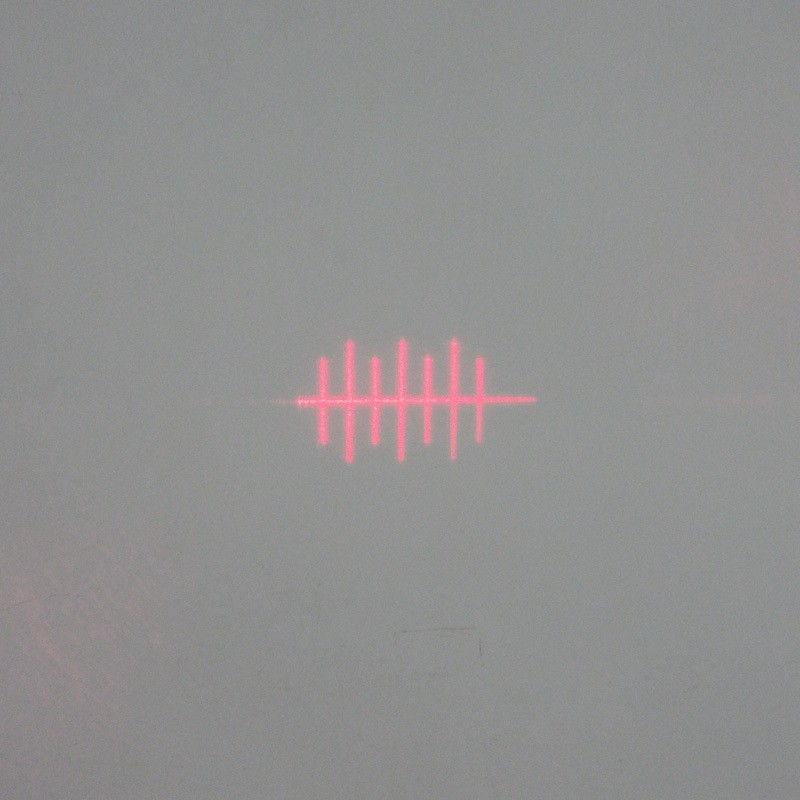

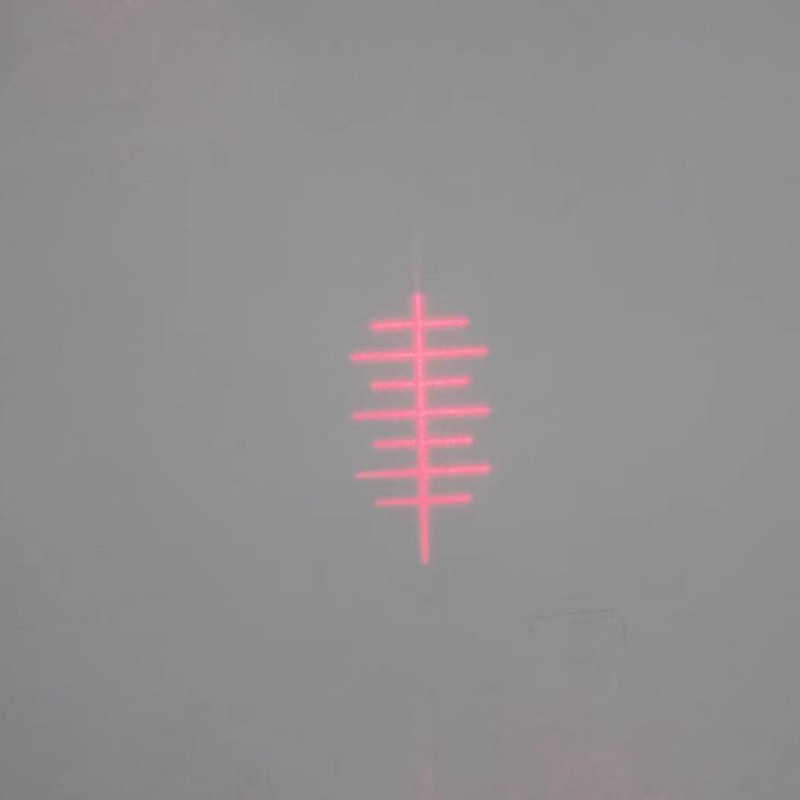

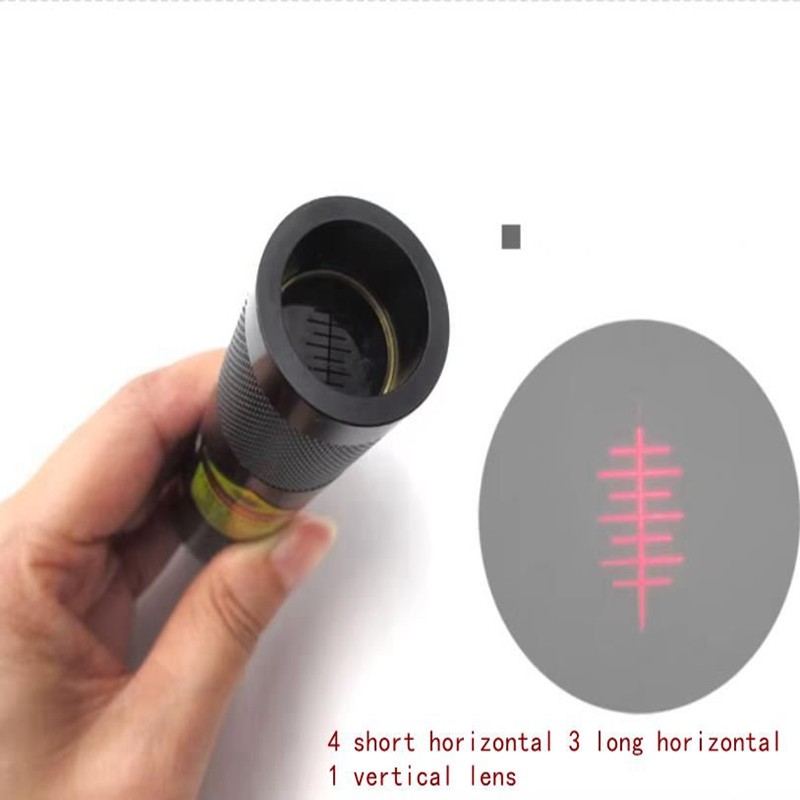

The module projects a customized pattern consisting offour short horizontal lines, three long horizontal lines and one vertical line, providing a clear visual reference for material placement, centering and process alignment.
Featuring an upgradedexternally adjustable optical structure, the line length and spacing can be adjusted according to the working distance and equipment requirements.
This laser positioning module is widely used in shoe-making machinery including front side machines, roughing machines, automatic heel loading machines, heel molding machines, upper molding machines and midsole molding machines.
PhotexLaser supports OEM/ODM customization for wavelength, output power, housing dimensions, working voltage, beam pattern, line length, line spacing and mounting structure.
| Parameter | Specification |
|---|---|
| Product Type | Multi-Line Positioning Laser Module |
| Model | HW635E5-27BD-4D3C |
| Laser Type | Semiconductor Laser |
| Output Pattern | 4 Short Horizontal + 3 Long Horizontal + 1 Vertical Line |
| Wavelength | 635nm |
| Wavelength Customization | Available |
| Output Power | 5mW |
| Power Customization | Available |
| Working Voltage | DC 2.8–5.2V |
| Working Current | <60mA |
| Standard Size | 27×120mm |
| Housing Size | Customizable |
| Channel | Single Channel |
| Output Type | Power Type |
| Power Supply Type | Single Power Supply |
| Installation Height | 0–1m |
| Adjustment | External Adjustable Structure |
| Line Length | Adjustable |
| Application | Shoe Machine Positioning & Industrial Alignment |

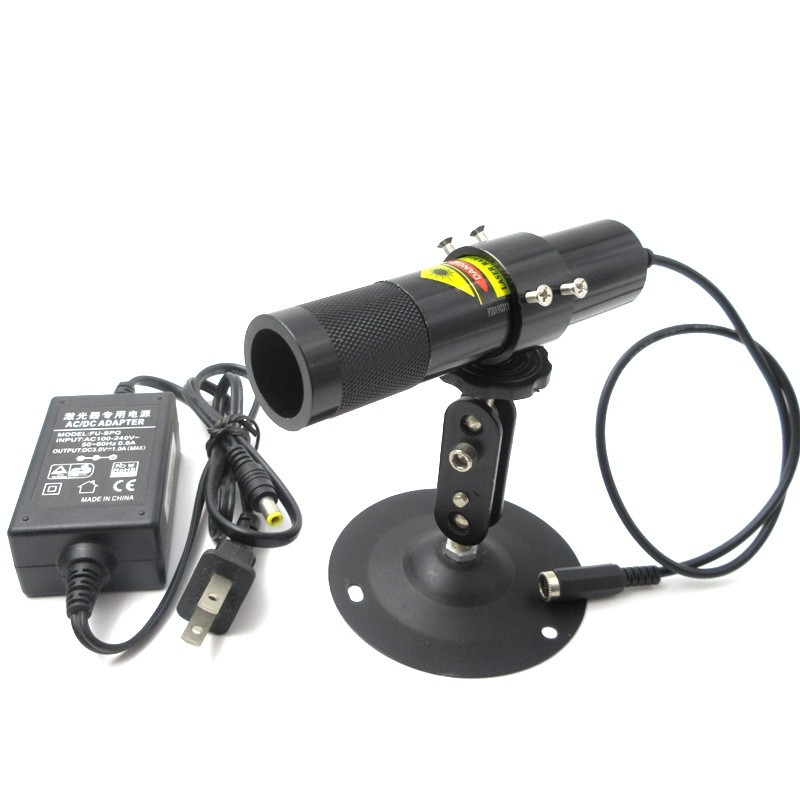

A standard set includes:
Minimum Pattern Size
Maximum Pattern Size
Minimum Pattern Size
Maximum Pattern Size
The upgraded external adjustment structure allows the projected pattern size to be optimized according to the actual installation distance.
Adjustable parameters can include:
This makes the module suitable for different shoe-machine structures and positioning requirements.
Suitable for:
Provides visual alignment references for:
Can also be used for:
Common sizes include:
Other dimensions can be customized.
Customizable range:
Visible:
405nm,450nm,520nm,532nm,635nm,650nm,670nm,685nm
Infrared:
780nm,808nm,830nm,850nm,905nm,980nm
Photex Laser can customize:
Photex Laser provides customized multi-line laser positioning modules for shoe manufacturing equipment, industrial alignment and production-line applications.
